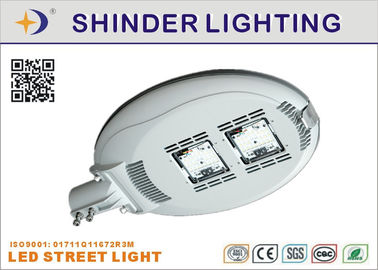

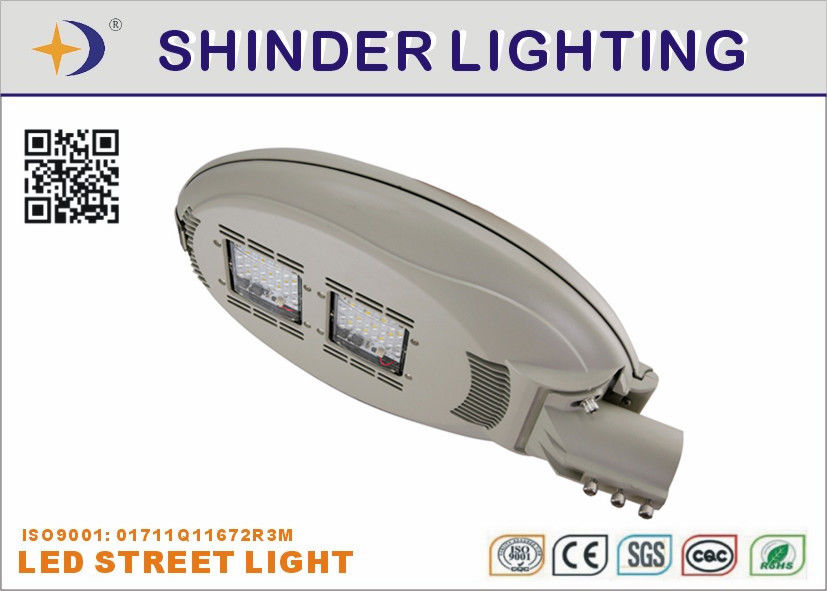

Waterproof Outdoor 60w LED Street Light With Constant Current IC Driver

Waterproof Outdoor 60w LED Street Light With Constant Current IC Driver

    • Waterproof Outdoor 60w LED Street Light With Constant Current IC Driver
    • Waterproof Outdoor 60w LED Street Light With Constant Current IC Driver
  • Waterproof Outdoor 60w LED Street Light With Constant Current IC Driver

    Product Details:

    Place of Origin: China
    Brand Name: shinder
    Certification: CE ROHS
    Model Number: SDZD802-60

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: 62.0*40.5*26.50 cm / 1 piece / 6.50 kg / CTN
    Delivery Time: 15 work days
    Supply Ability: 1000 pcs per month
    Contact Now
    Detailed Product Description
    Type: 60w Led Street Light Power: 60w
    Voltage: 85-265v PF: 0.73-0.92
    Uniformity: 0.45 CCT(K): 4100
    Luminous Flux: 5100 Optional: 0-90 Degree

    5 years warranty high power 60w outdoor led street light ip65 waterproof  price list



    Specifications:



    Item Name

    802-60

    Lumen

    6800Lm

    Power

    60W

    LED Type

      SMD

    Voltage

    AC85~265V

    LED Quantity

    LUXEON Rebel ES

    SIZE

    62*40.5*26.5mm/PC/CTN

    PF

    0.73-0.92

    Material

    Alumimun Die Casting

    G.W/N.W

      6.5/5.00KG

    Operational

    0-90 Degree

    The IP rating

      IP65

    Surface Color

    Grey/Black

    Operation Temperature

      -20℃-+50℃

    Color Temperature

    4100K

    Lamp working temperature

       ≤60℃

    Life Span

    50000 Hours

    Uniformity

     0.45

    Warranty

    3 YEARS

    Power supply circuit

       Constant Current IC Driver

    Certificates

    CE RoHS



     Waterproof Outdoor 60w LED Street Light With Constant Current IC Driver

    Description:



    1. Led chip: LUXEON® Rebel ES gives you the flexibility you need for designing luminaires and lamps.Tested and binned at 700 mA, confidently design LUXEON Rebel ES into high lumen applications or create more energy efficient devices using the same designers count on LUXEON Rebel ES for quality, realiablity and in-device performance.



    2. Led Power Supply: Constant current Mean well series power supply will protect LED chip in correct current and voltage. It provide power factor >0.9 and power efficient > 90% characteristic to ensure power saving. Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.



    3. Stainless steel parts: Endurancing the corrosion of air, water, chemical acid, alkaline,salt and other materials, can be used in all kinds of harsh conditions for long term.



    4. Lamp Housing: High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process.



    5. Heat sink: Sufficient and thickness liner radiation fin are average distributed on the back of front head by die-casting technology with excellent thermal conductivity.



    6. IP65 waterproof structure:Every gap, screw and interface used the rubber ring with silica gel for waterproof purpose.



    7. Lifespan: led street light has 50000 hours lifespan for using.



    8. Warranty:we offers 3-years product warranty for all products. If you need 5-years warranty for this wattage product, please contact us directly.



    Waterproof Outdoor 60w LED Street Light With Constant Current IC Driver



    Applications:


    LED Street Lights are widely used for Arterial road,Branch road,Factories,schools,gardens,city squares and so on.


    Competitive Advantage:


    1. Long life properties;
    2. Contains no mercury;
    3. Easy to be installed.;
    4. High efficiency.
    5. 50,000-hour rated average life;
    6. Use Philips LUXEON Rebel ES;
    7. High uniformity.
    8. Square light stripe
    9. With IES file



    Packing & Shipping



    1. form stuff supports the lamp

    2. lamp is eveloped inside pc bag

    3. other foam covers the lamp

    4. tough corrugated paper carton packing

    Waterproof Outdoor 60w LED Street Light With Constant Current IC Driver

    Our service :



    Best price with good-quality



    Your inquiry will be replied within 24 hours.



    Well-trained & experienced sales can reply your inquiries in English.



    ON line with 24 hours



    Your business relationship with us will be confidential to any third party.



    Good after-sale service
