| Place of Origin: | China |
| Brand Name: | ZLONE |
| Certification: | CE ROHS TUV FCC |
| Model Number: | ZLRP2254018WS |
| Minimum Order Quantity: | NONE |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 9.4kgs/ CTN 20pcs/CTN 500*25*500mm /CTN 15kgs/ CTN |
| Delivery Time: | 5-7working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000pcs/Month |
| Material: | Aluminmiun + PMMA | Color: | White Frame |
|---|---|---|---|
| Wattage: | 18W | CRI: | >80 |
| Lumenius Flux: | 1600lm | Protection Grade: | IP44 |
| Input Voltage: | 90-260VAC 50/60Hz | Installation Way: | Surface Mounting |
| High Light: | surface mount led ceiling light,wall mounted led light panel |
||
Main parameters:
| Model Number | ZLRP2254018WS | Installation | Surface Mounting | View Angle: | 120° |
| Brand | ZLONE | Size: | Φ225*40mm | Power factor: | >0.95
|
| Lamp Power(W): | 18W | Luminous Efficiency | 85lm/w | Driver Type | Isolated Constant current driver
|
| Luminous Flux(lm): | 1450-1650LM | CRI | >80 | Input Voltage: | 85V~265V AC 50-60Hz
|
| CCT | 2700-6500K | LED QTY: | 90pcs | Warranty : |
2Years |
| IP Grade | IP40 | LED Light Source: | SMD2835 | LED Brand | EPISTAR |
| Working Lifetime | 50000Hours | Working Temperature | -25℃ - +55℃ | Certification: | CE, EMC, LVD, RoHS,TUV,SGS |
Features:

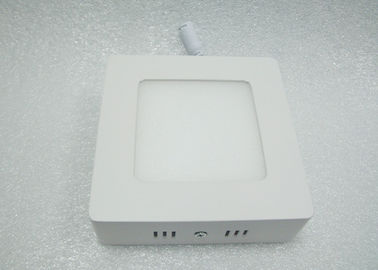

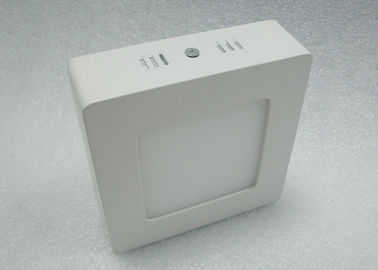

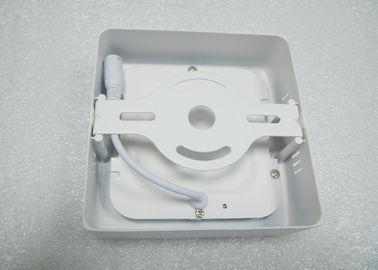

Photos of 18W Flat
Available Models:
| Product Name &Size | Model | CCT | Input Voltage | Lumen Flux | CRI | View Angle | Led Brand & Type | Note |
| 6W LED Surface Mounted Panel Φ120*40mm | ZLRP120406WR ZLRP120406WS | 3000K 4000K 6000K | 100-260V AC 50/60Hz | 360-420LM | >80 | 120° | SMD 2835 EPISTAR | IP40 CE/RoHs Surface mount WHITE Frame 2-Year Warranty |
| 12W LED Surface Mounted Panel Φ170*40mm | ZLRP1704012WR ZLRP1704012WS | 3000K 4000K 6000K | 100-260V AC 50/60Hz | 880-960LM | >80 | 120° | SMD 2835 EPISTAR | IP40 CE/RoHs Surface mount WHITE Frame 2-Year Warranty |
| 18W LED Surface Mounted Panel Φ225*40mm | ZLRP2254018WR ZLRP2254018WS | 3000K 4000K 6000K | 100-260V AC 50/60Hz | 1450-1650 LM | >80 | 120° | SMD 2835 EPISTAR | IP40 CE/RoHs Surface mount WHITE Frame 2-Year Warranty |
| 24W LED Surface Mounted Panel Φ300*40mm | ZLRP3004024WR ZLRP3004024WS | 3000K 4000K 6000K | 100-260V AC 50/60Hz | 2000-2100LM | >80 | 120° | SMD 2835 EPISTAR | IP40 CE/RoHs Surface mount WHITE Frame 2-Year Warranty |
| 48W LED Surface Mounted Panel Φ600*40mm | ZLRP6004048WR ZLRP6004048WS | 3000K 4000K 6000K | 100-260V AC 50/60Hz | 3300-3500 LM | >75 | 120° | SMD 2835 EPISTAR | IP40 CE/RoHs Surface mount WHITE Frame 3-Year Warranty |
Installation guidance
Application of surface mounted led panel lights:
1. Hotels
2. Conference/Meeting rooms
3. Factories & Offices
4. Commercial Purposes
5. Residential / Institution Buildings
6. Schools, Colleges & Universities
7. Hospitals
