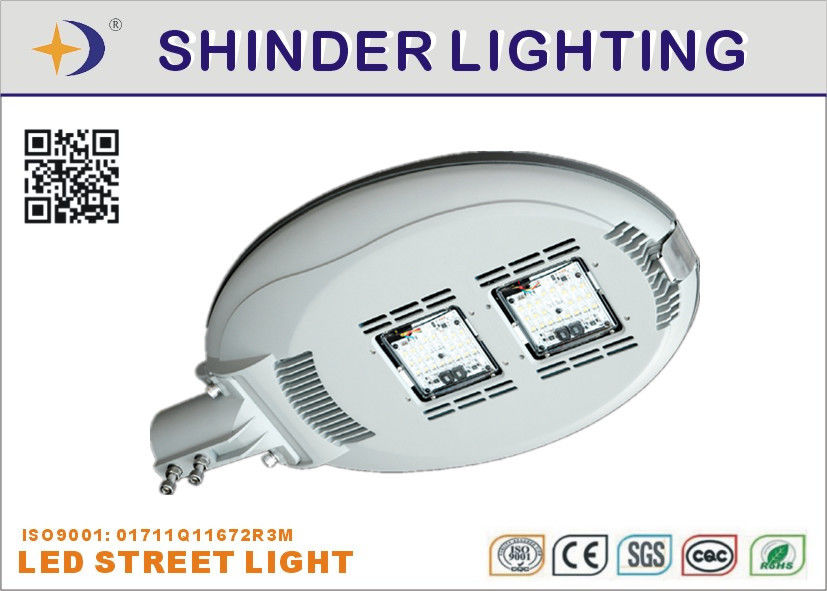

Long Lifespan Outdoor 50w LED Street Light 3 Years Warranty , LED Walkway Lights

Long Lifespan Outdoor 50w LED Street Light 3 Years Warranty , LED Walkway Lights

  • Long Lifespan Outdoor 50w LED Street Light 3 Years Warranty , LED Walkway Lights
Long Lifespan Outdoor 50w LED Street Light 3 Years Warranty , LED Walkway Lights
Product Details:
Place of Origin: China
Brand Name: SHINDER
Certification: CE ROHS
Model Number: SDZD802-50
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: 62.0*40.5*26.50 cm / 1 piece / 6.50 kg / CTN
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Type: 50w Outdoor Led Street Light Light Source: LED
LED Light Source: Lumileds Luxeon Rebel ES Voltage(v): 85-265
Lamp Body Material: Aluminum CCT(K): 4100
Luminous Flux: 5100 Optional: 0-90 Degree
High Light:

led street lamp

,

led highway lights

long lifespan power ip65 outdoor led street light 50w outdoor lighting fixture with CE and Rohs certification

Specifications:


SHINDER led street light uses high power led chips(at present it is mainly Lumileds Luxeon Rebel ES series),which watt is 1.96W @700mA for each chip, then packed different pieces of lumileds led chips on a special heat sink to get different wattage.

Long Lifespan Outdoor 50w LED Street Light 3 Years Warranty , LED Walkway Lights 0



then covering professional LENs to control the light from LEDs,anther polycarbonate sealing shield covers on the LENs to protect all of LEDs which complete LED module can be lighted underwater,IP65 is OK!

Long Lifespan Outdoor 50w LED Street Light 3 Years Warranty , LED Walkway Lights 1

Long Lifespan Outdoor 50w LED Street Light 3 Years Warranty , LED Walkway Lights 2

1. Led Power Supply: Constant current Mean well series power supply will protect LED chip in correct current and voltage. It provide power factor >0.9 and power efficient > 90% characteristic to ensure power saving. Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.

2. Stainless steel parts: Endurancing the corrosion of air, water, chemical acid, alkaline,salt and other materials, can be used in all kinds of harsh conditions for long term.

3. Lamp Housing: High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process.

4. Led chip: LUXEON® Rebel ES gives you the flexibility you need for designing luminaires and lamps.Tested and binned at 700 mA, confidently design LUXEON Rebel ES into high lumen applications or create more energy efficient devices using the same designers count on LUXEON Rebel ES for quality, realiablity and in-device performance.

5. Heat sink: Sufficient and thickness liner radiation fin are average distributed on the back of front head by die-casting technology with excellent thermal conductivity.

6. IP65 waterproof structure: Every gap, screw and interface used the rubber ring with silica gel for waterproof purpose.

7. Lifespan: led street light has 50000 hours lifespan for using.

8. Warranty: we offers 3-years product warranty for all products. If you need 5-years warranty for this wattage product, please contact us directly.



Item Name

802-50

Lumen

4250Lm

Power

50W

LED Type

  SMD

Voltage

AC85~265V

LED Quantity

LUXEON Rebel ES

SIZE

62*40.5*26.5cm/PC/CTN

PF

0.73-0.92

Material

Alumimun Die Casting

G.W/N.W

  6.5/5.00KG

Operational

0-90 Degree

The IP rating

  IP65

Surface Color

Grey/Black

Operation Temperature

  -20℃-+50℃

Color Temperature

4100K

Lamp working temperature

   ≤60℃

Life Span

50000 Hours

Uniformity

 0.45

Warranty

3 YEARS

Power supply circuit

   Constant Current IC Driver

Certificates

CE RoHS



Applications:
LED Street Lights are widely used for Arterial road,Branch road,Factories,schools,gardens,city squares and so on.


Competitive Advantage:

1. Use Philips LUXEON Rebel ES;

2. Long life properties
3. Contains no mercury
4. Easy to be installed.
5. High uniformity.
6. Square light stripe
7. With IES file
8. High efficiency.
9. 50,000-hour rated average life;


Packing & Shipping

1. form stuff supports the lamp
2. lamp is eveloped inside pc bag
3. other foam covers the lamp
4. tough corrugated paper carton packing

Our service :

Best price with good-quality

Your inquiry will be replied within 24 hours.

Well-trained & experienced sales can reply your inquiries in English.

ON line with 24 hours

Your business relationship with us will be confidential to any third party.

Good after-sale service

Company information:

SHINDER(CHANGZHOU)LIGHTING APPLIANCES CO.LTD was established in 1994 Jiangsu , Changzhou, China. We are a professional manufacturer and exporter , specializing in Outdoor industrial lighting and light source .

With more than ten years experience in the field of lighting appliances , we can get more information of lighting products , and control well on that detail of products for clients, which is based on market discipline around the world. Thus we can make great efforts to contribute share for cost and time saving.
