| Place of Origin: | China |
| Brand Name: | SHINDER |
| Certification: | CE ROHS |
| Model Number: | SDZD802-30 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | 62.0*40.5*26.50 cm / 1 piece / 6.50 kg / CTN |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 pcs per month |
| Type: | 30w Led Street Light | IP Rating: | Ip65 |
|---|---|---|---|
| LED Light Source: | Lumileds Luxeon Rebel ES | Voltage(v): | 85-265 |
| Lamp Body Material: | Aluminum | CCT(K): | 4100 |
| Luminous Flux: | 5100 | Optional: | 0-90 Degree |
| High Light: | led street lamp,led highway lights |
||

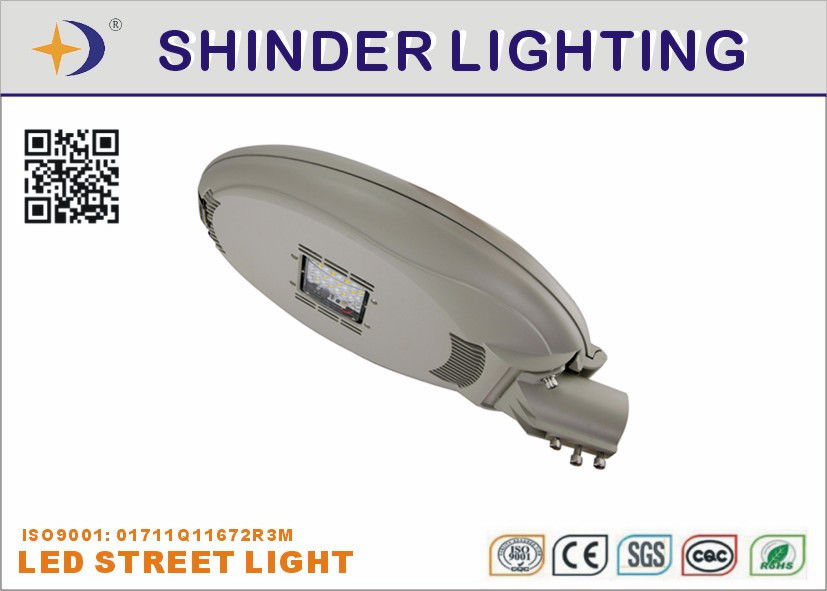

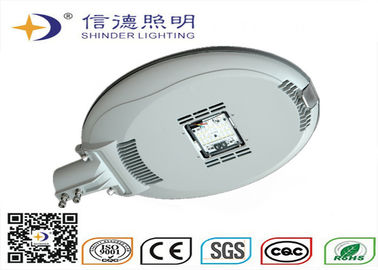

ip65 waterproof 30w led street light outdoor lighting fixture street light housing with roadway
Specifications:
* die casting aluminium housing,corrision proof spraying outdoor powder with different color optional,which can retain over 10years same as the new
* lumileds luxeon rebel ES led chips,luminous flux is over 230lux @700mA each chip
* Meanwell LED driver,PF>0.75;>0.85,service efficiency is over 90%,long lifespan
* professional design LED mould with best warterproof performance which can be lighted underwater
* professional light distribution design,display a even rectangle light pattern on the ground,the scale is 1:4.2
* waterproof connection box to get through the cables,IP65
| new design 30w led street lights | |||||||||||
| Model | Rated Watt | Voltage | PF | Lumens | Uniformity | CCT | Mounting Angle | Suitabel Mounting Heigh | Effective Flux | Valide Range | Operation Temp. |
| SDZD801-30/solar | 30W | 12V | 0.9 | 2500lm | 0.45 | 4100K | Horiztonal & Vertical | 4-5M | >21lux | 5*21M |
-20~50 degree |
SHINDER led street light uses high power led chips(at present it is mainly Lumileds Luxeon Rebel ES series),which watt is 1.96W @700mA for each chip, then packed different pieces of lumileds led chips on a special heat sink to get different wattage.
then covering professional LENs to control the light from LEDs,anther polycarbonate sealing shield covers on the LENs to protect all of LEDs which complete LED module can be lighted underwater,IP65 is OK!
Led chip: LUXEON® Rebel ES gives you the flexibility you need for designing luminaires and lamps.Tested and binned at 700 mA, confidently design LUXEON Rebel ES into high lumen applications or create more energy efficient devices using the same designers count on LUXEON Rebel ES for quality, realiablity and in-device performance.
Led Power Supply: Constant current Mean well series power supply will protect LED chip in correct current and voltage. It provide power factor >0.9 and power efficient > 90% characteristic to ensure power saving. Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.
Stainless steel parts: Endurancing the corrosion of air, water, chemical acid, alkaline,salt and other materials, can be used in all kinds of harsh conditions for long term.
Lamp Housing: High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process.
IP65 waterproof structure:Every gap, screw and interface used the rubber ring with silica gel for waterproof purpose.
Lifespan: led street light has 50000 hours lifespan for using.
Applications:
LED Street Lights are widely used for Arterial road,Branch road,Factories,schools,gardens,city squares and so on.
Competitive Advantage:
1. Use Philips LUXEON Rebel ES;
2. Long life properties
3. Contains no mercury
4. Easy to be installed.
5. High uniformity.
6. Square light stripe
7. With IES file
8. High efficiency.
9. 50,000-hour rated average life;
