| Place of Origin: | Shenzhen,China |
| Brand Name: | YICAI |
| Certification: | CE/RoHS |
| Model Number: | YC-DA517-01 |
| Minimum Order Quantity: | 5PCS |
|---|---|
| Price: | negotiation |
| Packaging Details: | 42CMx42CMx52CM 16.5Kg/Box |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T in Advance |
| Supply Ability: | 100,000PCS/Month |
| Luminance: | 1250±50lm | Beads Type: | SMD |
|---|---|---|---|
| CCT: | 2700~6500K | Input Voltage: | AC85~265V |
| High Light: | 240v led downlights,Recessed Led Downlight |
||

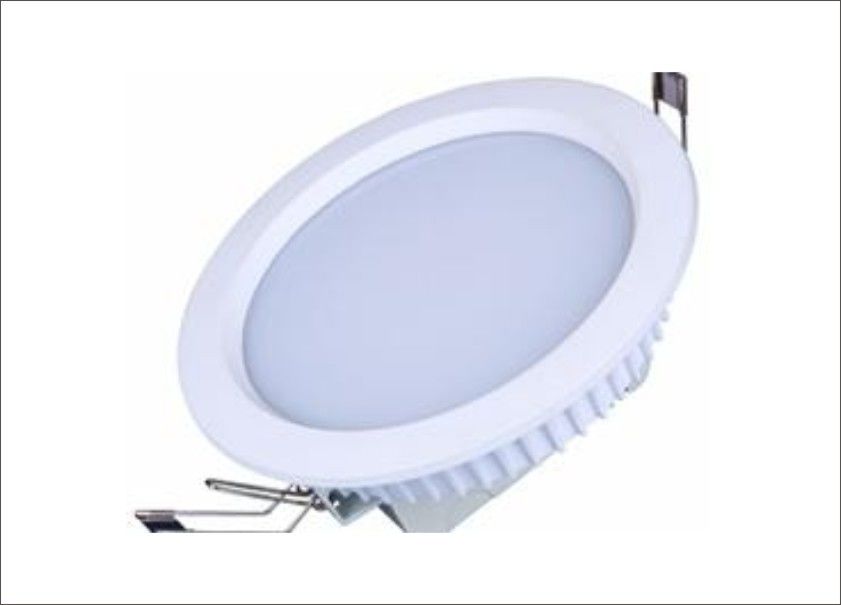

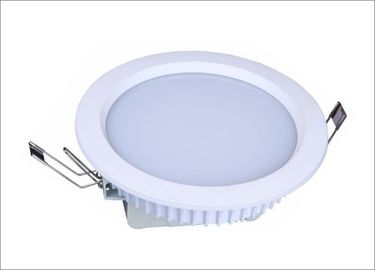

CE/ROHS High Brightness 15W LED Recessed Downlights 1300lm for Commercial Lighting 80lm/w
Feature:
►Highly energy saving, 60% over metal halide lamp
►Environmental-friendly, no UV, no Mercury or other Hazardous substances
► Long lifetime 50,000 hours(5+years)
► Long time working, produce low heat
► Instant start-up and Extremely low maintenance cost for led downlight
► Easy to installation,shock proof and concussion-proof
►High Ra with SMD LED light source,ultra bright
►AC85V to 265V Input voltage are available to meet different installation condition.
►Adopt BERYL capacitor , make sure the power’s life.
►High thermal conductivity MCPCB and die-casting aluminium body, ensure the effective heat dissipation
►Changeable beam angle and CCT 2700K-6500K available
►Extremely light weight to ensure safety use and installation
► Constant current driver and lower energy consumption for led downlight
► Working environment -25°C-50°C, suitable for unusual climate
► Energy-saving——led downlight can saving 70%-80% energy compared with
traditional Fluorescent tube.light loss is less than 5% during 3000 hours.
► Environmental-friendly:No RF interference and no flickering,No hazard of mercury
or lead entering the environment.
►The products have passed CE/ROSH certifications.
Specifications:
7W/10W/12W/15W/18W/24W Downlight led
AC100-240V, or AC100-277V
CE&RoHS,
Dimmable or non-dimmable
Color Temperature:
Warm White(2700K-3200K);
Neutral White(4000K-4500K);
Cool White(6000K-6500K)
Driver:External
CRI:>80
PF:>0.9
Lifetime:50,000Hours
Certificate: CE & RoHS
Warranty:3 years
MOQ:1 Piece/Model
Applications:
Shopping malls , Houses, Restaurant,Hotel,store,cafe shop,
Specifications :
| Item Number | YC-DA517-01 | Luminance | 1250±50lm |
| Lamp Material | Aluminium | Color index | Ra >80 |
| Beads type | SMD | CCT | 2700~6500K |
| Brand chips | Epistar/Samsung | Storage temperature | -20°C-45°C |
| Input Voltage | AC85~265V | Surface temperature | 50°C (test in 25°C ) |
| Frequence | 50~60HZ | Lifespan | 40,000+ hours |
| Power Factor | >0.95 | Lamp Size | Φ180*53mm |
| Power consumption | 15-16W | Hole Size | Φ150mm |
| Power Efficiency | ≥90% | Inner Box Size | 185x185x85MM |
| Beam Angle | 120° | Inner Box Weight | 1.1KG |
Lamp size:
Pack Information:
| Item Number | Inner box size | Inner box weight | Master box size | Qty in Master box | Master box weight |
| YC-DA517-01 | 185X185X85MM | 1.1Kg | 375X340X385MM | 20PCS/Box | 23Kg/Box |
Product Details:
Certification:
Lamp Application:
