| Place of Origin: | Shenzhen City, China |
| Brand Name: | screentech |
| Certification: | CE/RoHS/SAA |
| Model Number: | HDL-06-20W |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner box size:22.5*21.5*8.5cm,Carton size:46*36*35cm,8PCS/CTNS |
| Delivery Time: | 7~10 days |
| Payment Terms: | T/T, L/C, Western Union, cash |
| Supply Ability: | 5,000 Piece/Pieces per Month |
| Input Voltage: | 100~240V AC | Power:: | 20W |
|---|---|---|---|
| CRI (Ra>):: | 80 | Color Temperature:: | Warm White|Natural White|Cool White |
| LED Chip:: | Samsung | Product Name: | Led Downlights |
| High Light: | commercial led recessed downlights,recessed adjustable led downlight |
||

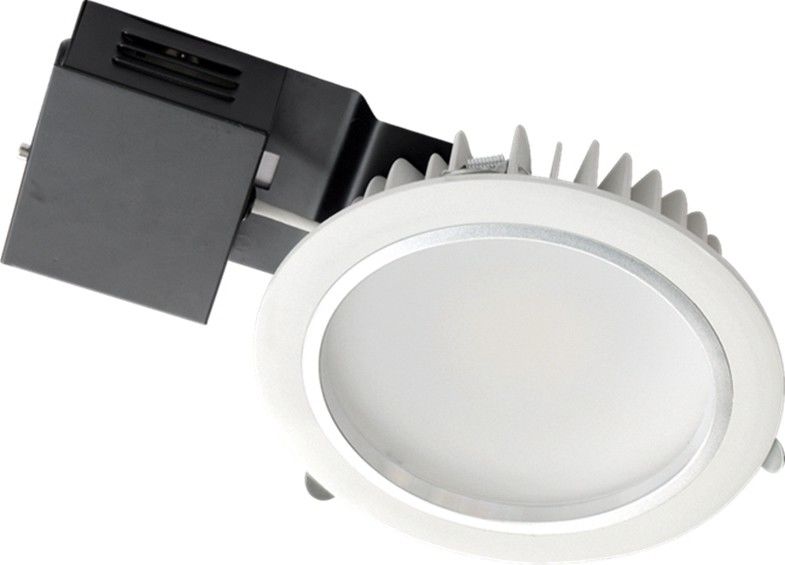

20 Watt Commercial LED Recessed Downlights IP20 AC 100V - 240V For Shop Lighting
Quick Detail:
Structure features:

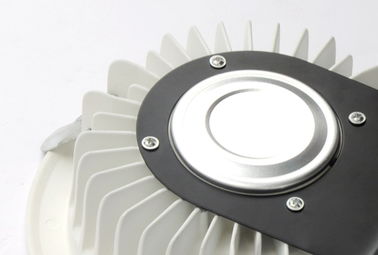

1. Superior heat emission structure with patented technology and power supply configuration, The light can work efficiently and safely. Lifespan more than 50000 hours.(the use of ambient temperature is 25℃)
2 .Using high performance light guide, the light source with high color rendering index. Optimized light distribution design solution can make the optical property more excellent. Pass on the value of illumination spiritually.
3. Integrated power pack and lamp design, more safety and practical. Reduced the light height of installment, easily used in ceiling installation.
4. Wid frame design, the recessed installation dimension widely used in silmilar items. It’s a easy thing for you to replace the light, no need to cut the hole once again.
Application:
Widely used in hotels, restaurants, hypermarkets, shops, offices,supermarkets, museums and residential lighting and so on.
Main technical parameters:
|
NO |
Item |
Unit |
Value |
|
1 |
Input voltage |
V |
AC100-240 |
|
2 |
Frequency |
Hz |
50/60 |
|
3 |
Output voltage |
V |
DC40-70V |
|
4 |
Output current |
mA |
300mA |
|
5 |
PF |
|
≥0.9 |
|
1 |
Luminousflux |
cool white |
Lm |
1833 |
|
natural white |
1745 |
|||
|
warm white |
1684 |
|||
|
2 |
Efficiency |
cool white |
lm/W |
94 lm/W |
|
natural white |
89 lm/W |
|||
|
warm white |
85 lm/W |
|||
|
3 |
CCT |
cool white |
K |
5500 |
|
natural white |
4000 |
|||
|
warm white |
3000 |
|||
|
4 |
Ra |
|
≥80 |
|
|
5 |
Operating ambient temperature |
℃ |
-20～ +40 |
|
|
6 |
Operating environment humidity |
|
10-80% |
|
|
7 |
Net weight/pcs |
Kg |
1.1 |
|
|
8 |
Dimensions |
mm |
∅210×78 |
|
|
9 |
Certification |
|
SAA /CE/ ROHS |
|
|
10 |
Power |
W |
20W±5% |
|
|
11 |
Led chip |
|
Samsung |
|
|
12 |
IP grade |
|
IP20 |
|
IIIumination intensity chart
Electrical connection:
Package diagram:
Packaging Parameters:
|
Quantity pcs/carton |
8inner box*1pc downlight/inner box=8 |
|
Weight kg/carton |
13.5kgs |
|
Inner box size(mm) |
215(L)×85(W)×350(H) |
|
Carton size(mm) |
450(L)×355(W)×345(H) |
Installation steps(Notes):
Notes:
1:All dimensions are in millimeters.
2: Tolerance is±1mm unless otherwise specified.
3:Specifications are subject to change without notice
