| Place of Origin: | Shenzhen, China |
| Brand Name: | Ground Halo |
| Certification: | CE, RoHs, SAA, TuV |
| Model Number: | GH-DLC-15W |
| Minimum Order Quantity: | 1pcs for sample is available |
|---|---|
| Price: | EXW / FOB / CNF / CIF |
| Packaging Details: | Outer Packing and Inner Packing with foam and bubble wrap |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, PayPal, Western Union, |
| Supply Ability: | 10,000PCS Per Month |
| High Light: | led kitchen downlights,led recessed down lights |
||
|---|---|---|---|

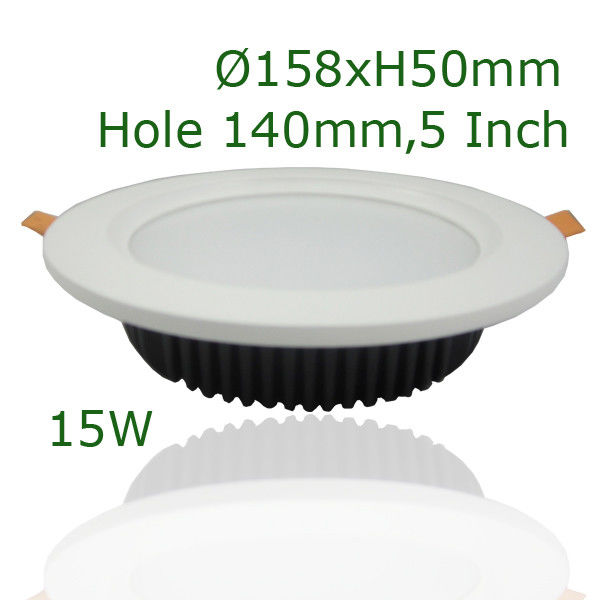

5 Inch Recessed LED Down Light / Recessed 5 Inch LED Down Light 15 Watt 6000K For Commercial Lighting
Quick Detail:
Model Name: GH-DLC-15W
Dimension: Ø158*H50mm
Cut Size: Ø140mm (5Inch)
LED Chip: Samsung
Consumption Power: 15W
Input Voltage: AC85~265V
CRI: RA85
LED Light Source: 40PCS SMD5630
Finish Color: White + Black
Material: Aluminum+Frosted Acrylic Cover
Warranty: 3 Years
Driver: External Isolated Constant Current Driver (GS,CB,SAA Approved)
Luminous Flux: 1300lm±5%
Beam Angle: 120°
Certificate: CE, RoHs
Color Temperature: Warm White / True White / Cold White
Competitive advantages:
Smoothy Surface, Attractive Apperance;
Superior Anti Glare LED Downlight;
Samsung Chip, 85lm/Watt;
GS,CB,SAA Approved External Isolated Constant Current Driver;
RA85, Thick Aluminum Alloy;
Strong Package to bear oversea transportation;
5 Years Warranty.
Description:
Adopt SMD5630 as the light source and aluminum alloy for the shell. The external cover is oxidation brushed finishing, outstanding performance and better Heat Dissipation with elegant appearance.
Specifications :
| Model Name | GH-DLC-15W | ||||
| Power Consumption | 30W | ||||
| Input Voltage | AC85 ~265V (50-60Hz) | ||||
| Luminous Flux | 30W | 3000K | >1200LM | ||
| 4500K | >1275LM | ||||
| 6000K | >1300LM | ||||
| LED Chip | Saumsung | ||||
| LED Light Source | 40PCS SMD2835 | ||||
| Driver | External Isolated Constant Current Driver | ||||
| Beam Angle | 120° | ||||
| CRI | RA85 | ||||
| Total Harmonic Distortion | ≤15％ | ||||
| Power Factor | ≥ 0.95 | ||||
| Power Supply Efficiency | >90％ | ||||
| Protection Class | IP44 | ||||
| Color Temperature | 2700~7500K | ||||
| Dimension | Ø158*H50mm | ||||
| Cut Size | Ø140mm (5Inch) | ||||
| Material | Die Casting Aluminum Alloy + PC Cover | ||||
| Finishing | White + Black | ||||
| Lamp Head | Fixed | ||||
| Installation | Recessed | ||||
| Operating Temperature | -20°~ +50° | ||||
| Lifespan | 50,000 Hours | ||||
| Certificate | CE, RoHs | ||||
| Warranty | 3 Years | ||||
| Box Size | 290*240*80mm | ||||
| Packing | 30pcs/Box, 18kg, L72*W38*H32cm | ||||
| Available Wattage In This Series |
8inch 40W/30W, 6inch 20W, 5inch 15W, 4inch 12W, 3inch 5W |
||||
Applications:
Shopping Malls, Stores, Building, supermarkets, hotels, exhibition rooms, museums, display windows, restaurants, art halls, offices, reading rooms etc.
After Sales Service:
The product comes with3 years warranty. Within the warranty period, if the product has a failure occurring under normal usage Ground Halo will provide full tecnical help, free maintenance service or change the product for you based on proof- documents and invoice (copy) of failure product.
Term of Trade:
1. Payment: T/T 30% deposit, 70% before shipment ,L/C ,western union or paypal.
2. Lead time : Within 7 working days after receiving the deposit
3. Samples: Can be ready in 5 working days once payment received
4. Shipping port: Shenzhen, China
5. Discounts : We offer discount for large quantity
6. Packaging: Neutral package, also can be customized according to customer requirements of Logo, Brand etc.
