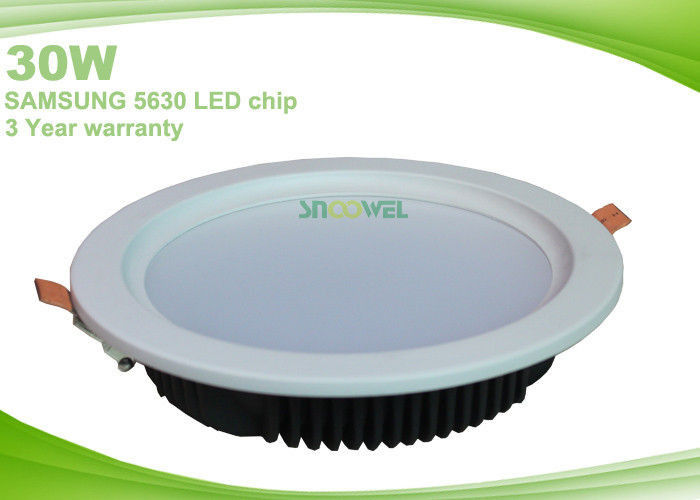

8 Inch 30 Watt Led Recessed Downlight Dimmable / Exterior Smd Led Downlight Recessed

8 Inch 30 Watt Led Recessed Downlight Dimmable / Exterior Smd Led Downlight Recessed

    • 8 Inch 30 Watt Led Recessed Downlight Dimmable / Exterior Smd Led Downlight Recessed
    • 8 Inch 30 Watt Led Recessed Downlight Dimmable / Exterior Smd Led Downlight Recessed
  • 8 Inch 30 Watt Led Recessed Downlight Dimmable / Exterior Smd Led Downlight Recessed

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: SNOOWEL
    Certification: CE, RoHS, FCC
    Model Number: SW-TD300B-30W

    Payment & Shipping Terms:

    Minimum Order Quantity: No requirement
    Price: Negotiable
    Packaging Details: 1 Piece in one inner box, 20pcs in one external carton
    Delivery Time: 5 to 7 days for sample order, 7 to 15 days for bulk order
    Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 50000pcs per month
    Contact Now
    Detailed Product Description
    Power: 30watt Input Voltage: AC90-285V
    LED Brand: SAMSUNG LED Type: SMD5630 60pcs
    Color Temperature: 2700-7000K Color Index: >80Ra
    Mountig Holes: 200mm 8inch Lamp Size: ф230*58mm
    Certificate: CE,RoHS Warranty: 3 Years



    8 Inch 30 Watt Led Recessed Downlight Dimmable / Exterior Smd Led Downlight Recessed



    Specifications:



    Model No.  SW-TD300B-30W
    Input Voltage  AC 90~265V 50/60Hz
    Power  30W
    Dimension  ф230*58mm
    Mounting hole  ф200mm
    Installation  Recessed
    Cut-out  200mm
    Main Material  Aluminium + PMMA
    Color Temperature  Warm White 2700~3200K
     Pure White 4000~4500K
     Cool White 6000~6500K
    Luminous Efficiency  90lm/w
    Luminous Flux  2700lm
    CRI(Ra>)  80
    LED Chip Brand  SAMSUNG
    LED Quantity 60pcs SMD5630
    Lifespan  50,000hrs
    Circuit Protection  Over-current Protection;
     Short-circuit Protection;
     Over-voltage Protection;
     High Voltage Surges Protection
    Ingress Protection  IP44
    Operating Temperaturer  -30℃ ~ +50℃
    Relevant Certificates  CE, RoHS, FCC, EMC, LVD
    Warranty  3 Years
    Application Environment  Indoor



    Features:



    1. With original Korean 5630 SMD LEDs. Samsung 5630 SMD LEDs.

    High Brightness Samsung/Epistar LED light efficiency >90lm/w, CRI>80;


    2. High quality external LED driver from top quality LED driver manufacturer. CE certified LED driver.fast response(no delay), low temperature, with isolated power driver.safe to use,easy installation



    3. Thermal technology: Advanced technology with first class radiator materials;

    Very good heat-dissipation. Strong and robust but light in weight.


    4. Frosted cover with imported materials. Light transmission rate around 80~85%. Bright but soft and even light, without glaring.



     5. A limited 3 year warranty. Long lifespan: Above 50,000 hours. SAMSUNG SMD5630 LEDS . we are confident with our quality; if there are any quality problems within the warranty period, we will send parts for replacement all at our cost, including shipping cost.



    Installation guide:

    8 Inch 30 Watt Led Recessed Downlight Dimmable / Exterior Smd Led Downlight Recessed

    NOTES:


    1. Cut off power supply before installation, prevent from getting an electric shock, Avoid working in touch the lamp of surface
    2. This lamp should avoid installation in those places, such as heat and hot steam, corrosive gas.  Those places may affect its lifespan ;
    3. Ensure installation position can withstand 10 times the weight of the product before installation;
    4. Insure to install in the smooth place without vibration and fire potential.



    Dimmable recessed led downlight Applications:



    The LED lights and LED bulbs are green lighting fixtures for illumination lighting and general lighting.  LED lights are a new generation of lighting technology and now they are used extensively for general lighting.


    1. Apply to hotel, shopping malls etc., can be universally used for decorative lighting of various commercial place.


    2. Apply to office, meeting room, exhibition hall, can be used for interior lighting in the office building.


    3. Apply to residential lighting such as aisle, washroom, corridor, storehouse, etc.


    4. Apply to shop window, painting displaying, artwork performance, etc., can be used for partial close-up lighting.


    5. Apply to cafe, bar etc., can be used for entertainment lighting.
