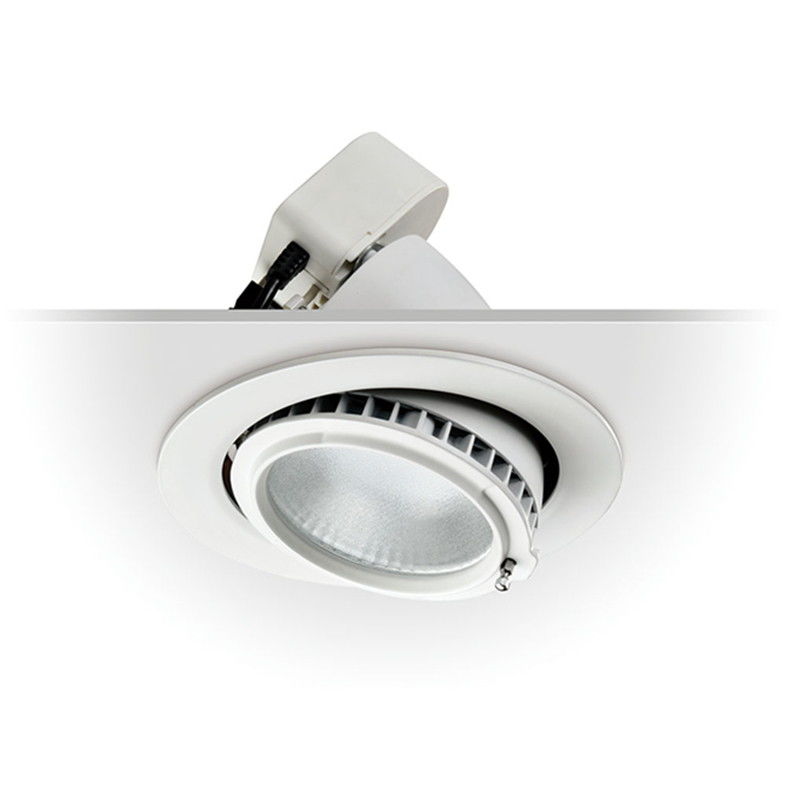

High CRI Samsung SMD 20W Round Outdoor Recessed Led Downlights Bathrooms

High CRI Samsung SMD 20W Round Outdoor Recessed Led Downlights Bathrooms

  • High CRI Samsung SMD 20W Round Outdoor Recessed Led Downlights Bathrooms
  • High CRI Samsung SMD 20W Round Outdoor Recessed Led Downlights Bathrooms
High CRI Samsung SMD 20W Round Outdoor Recessed Led Downlights Bathrooms
Product Details:
Place of Origin: Shenzhen City, China
Brand Name: screentech
Certification: CE/RoHS/SAA
Model Number: MHR-001-S20W
Payment & Shipping Terms:
Minimum Order Quantity: 8PCS
Price: Negotiation
Packaging Details: Carton size:530*490*370 mm,8PCS/CTNS
Delivery Time: 7~10 days
Payment Terms: T/T, L/C, Western Union, cash
Supply Ability: 5,000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Input Voltage: 100~240V AC Power:: 20W
CRI (Ra>):: 80 Color Temperature:: Warm White|Natural White|Cool White
LED Chip:: Samsung Product Name: Led Downlights
High Light:

outdoor recessed led downlights

,

recessed adjustable led downlight

High CRI Samsung SMD 20W Round Outdoor Recessed Led Downlights Bathrooms




Quick Detail:

  • Model Number: MHR-001-S20W
  • Item Type: LED Downlights
  • LED Light Source: 40pcs Samsung 5630
  • Private mold die-casting aluminum+ Glass lens
  • Power: 20W±5%
  • Input Voltage: 100~240V AC
  • Lamp Luminous Efficiency: >73 lm/w
  • CRI (Ra>): 80%
  • Color Temperature(CCT): 2700K+5000K
  • Working Temperature(℃): -20℃~40℃
  • Working Lifetime(Hour): 40000
  • Certification: CE, RoHS, SAA
  • Warranty: 3years
  • IP Rating: IP20


Structure features:



1.Superior heat emission structure with patented technology and power supply configuration, The light can work efficiently and safely. Lifespan more than 50000 hours.(the use of ambient temperature is 25℃)



2.350 rotatable degree, 60 adjustable degree. It can easily satisfy the adjustable beam angle and easy to finish different fixture position.



3.Wide frame design, the embedded installation dimension is widely used in similar items. It’s a  easy thing for you to replace the light, no need to cut the hole once again.



4.Optimized light distribution design solution can make the optical property more excellent.



5.Compare wtih the tranditional metal halide lamp, this light can replace the 75W metal halide lamp at maximum, possessing incomparable performance.Ultra-low energy consumption, high optical property, ultra-long lifespan, safety and reliable are absolutely the choice of your heart.



Application:

    Widely used in hotels, restaurants, hypermarkets, shops, offices,supermarkets, museums and residential lighting and so on.

Main technical parameters:

NO

Item

Unit

Value

1

Input Voltage

V

AC100—240

2

Frequency

Hz

50/60

3

Output Voltage

V

DC18-28V

4

Output Curreent

mA

700mA

5

PF



≥0.9



1

Luminousflux

cool white

Lm

1609

natural white

1636

warm white

1332

2

Efficiency

cool white

lm/W

86 lm/W

natural white

88 lm/W

warm white

71 lm/W

3

CCT

cool white

K

5500

natural white

4000

warm white

3000

4

Ra



≥80

5

Beam angle



45°

7

Operating ambient temperature

-20 +40

8

Operating environment humidity



10-80%

9

Net weight/pcs

Kg

1.70

10

Dimensions

mm

195×179

11

Certification



SAA /CE/ ROHS

12

Power

W

20W±5%

13

Led chip



Samsung

14

IP grade



IP20











































































IIIumination intensity chart






 High CRI Samsung SMD 20W Round Outdoor Recessed Led Downlights Bathrooms 0





High CRI Samsung SMD 20W Round Outdoor Recessed Led Downlights Bathrooms 1

High CRI Samsung SMD 20W Round Outdoor Recessed Led Downlights Bathrooms 2



Electrical connection:


 High CRI Samsung SMD 20W Round Outdoor Recessed Led Downlights Bathrooms 3
Package diagram:

High CRI Samsung SMD 20W Round Outdoor Recessed Led Downlights Bathrooms 4


Packaging Parameters:

Quantity pcs/carton

8inner box*1pc downlight/inner box=8

Weight kg/carton

15.8kgs

Inner box size(mm)

250(L)×230(W)×170(H)

Carton size(mm)

525(L)×485(W)×370(H)


Installation steps(Notes):

High CRI Samsung SMD 20W Round Outdoor Recessed Led Downlights Bathrooms 5

Notes:
1: All dimensions are in millimeters.
2: Tolerance is±1mm unless otherwise specified.
3: Specifications are subject to change without notice

High CRI Samsung SMD 20W Round Outdoor Recessed Led Downlights Bathrooms 6
