| Place of Origin: | Shenzhen, China |
| Brand Name: | Ground Halo |
| Certification: | CE, RoHs |
| Model Number: | GH-DLC-5W |
| Minimum Order Quantity: | 1pcs for sample is available |
|---|---|
| Price: | EXW / FOB / CNF / CIF |
| Packaging Details: | Outer Packing and Inner Packing with foam and bubble wrap |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, PayPal, Western Union, |
| Supply Ability: | 10,000PCS Per Month |
| High Light: | bathroom led downlights,led recessed down lights |
||
|---|---|---|---|

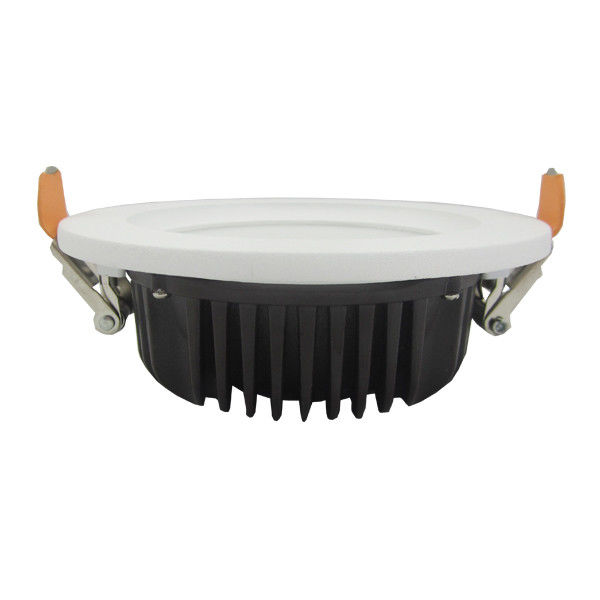

LED Recessed Downlights 120° 240V 100lm / Watt , 3 Inch Round Recessed LED Down Light 5Watt RA85 CE TuV UL Approval
Quick Detail:
Competitive advantages:
Description:
Adopt SMD5630 as the light source and aluminum alloy for the shell. The external cover is oxidation brushed finishing, outstanding performance and better Heat Dissipation with elegant appearance. The main features include low heat, lower power consumption, energy sacing, long lifespan etc. White, Warm white and Cool white are available. lt is easy to install and use.
Specifications :
Technical Parameter:
| Model Name | GH-DLC-5W | ||||
| Power Consumption | 5W | ||||
| Input Voltage | AC85 ~265V (50-60Hz) | ||||
| Luminous Flux | 12W | 3000K | >430LM | ||
| 4500K | >450LM | ||||
| 6000K | >465LM | ||||
| LED Chip | Samsung | ||||
| LED Light Source | 15PCS SMD5630 | ||||
| Driver | External Isolated Constant Current Driver | ||||
| Beam Angle | 120° | ||||
| CRI | RA85 | ||||
| Total Harmonic Distortion | ≤15％ | ||||
| Power Factor | ≥ 0.95 | ||||
| Power Supply Efficiency | >90％ | ||||
| Protection Class | IP44 | ||||
| Color Temperature | 2700~7500K | ||||
| Dimension | Ø108XH46mm | ||||
| Cut Size | Ø92mm (3Inch) | ||||
| Material | Aluminum+Frosted Acrylic Cover | ||||
| Finishing | White + Black | ||||
| Lamp Head | Fixed | ||||
| Installation | Recessed | ||||
| Operating Temperature | -20°~ +50° | ||||
| Lifespan | 50,000 Hours | ||||
| Certificate | CE, RoHs | ||||
| Warranty | 3 Years | ||||
| Packing | 60pcs/15kg/0.08m3/Box, L72*W38*H28cm | ||||
| Available Wattage In This Series |
8inch 40W/30W, 6inch 20W, 5inch 15W, 4inch 12W, 3inch 5W |
||||
Applications:
Shopping Malls, Stores, Building, supermarkets, hotels, exhibition rooms, museums, display windows, restaurants, art halls, offices, reading rooms etc.
After Sales Service:
The product comes with 3 years warranty. Within the warranty period, if the product has a failure occurring under normal usage Ground Halo will provide full tecnical help, free maintenance service or change the product for you based on proof- documents and invoice (copy) of failure product.
Term of Trade:
1. Payment: T/T 30% deposit, 70% before shipment ,L/C ,western union or paypal.
2. Lead time : Within 7 working days after receiving the deposit
3. Samples: Can be ready in 5 working days once payment received
4. Shipping port: Shenzhen, China
5. Discounts : We offer discount for large quantity
6. Packaging: Neutral package, also can be customized according to customer requirements of Logo, Brand etc.
