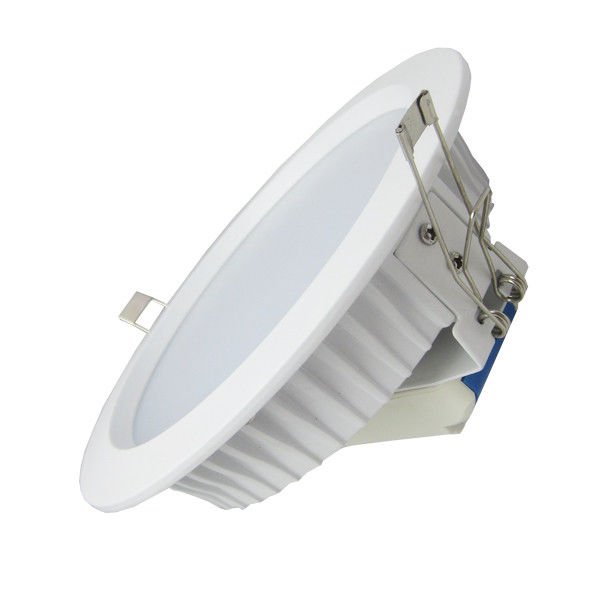

Recessed LED Downlighting / LED Downlight 20W 3000K CRI80

Recessed LED Downlighting / LED Downlight 20W 3000K CRI80

    • Recessed LED Downlighting / LED Downlight 20W 3000K CRI80
    • Recessed LED Downlighting / LED Downlight 20W 3000K CRI80
  • Recessed LED Downlighting / LED Downlight 20W 3000K CRI80

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Ground Halo
    Certification: CE, RoHs
    Model Number: GH-DLD-20W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs for sample is available
    Price: EXW / FOB / CNF / CIF
    Packaging Details: Outer Packing and Inner Packing with foam and bubble wrap
    Delivery Time: 7 Days
    Payment Terms: T/T, PayPal, Western Union,
    Supply Ability: 10,000PCS Per Month
    Contact Now
    Detailed Product Description


    3000k CRI80 Led Downlighting / 240v Led Downlights SMD5630 Samsung Chip


    Quick Detail:

    1. Model Name: GH-DLD-20W
    2. Consumption Power: 20W
    3. Input Voltage: AC85~265V
    4. Driver: External Isolated Constant Current Driver (GS,CB,SAA Approved)
    5. Beam Angle: 120°
    6. LED Light Source: 40PCS SMD5630
    7. Certificate: CE, RoHs,
    8. Luminous Flux: 20W 1700lm±5%
    9. Dimension: Ø190*H85mm
    10. Cut Size: Ø170mm (6Inch)
    11. LED Chip: Samsung
    12. CRI: RA80
    13. Warranty: 3 Years
    14. Finish Color: White + Black
    15. Material:  Aluminum+Frosted Acrylic Cover
    16. Color Temperature: 2700~3200K, 4000~4500K, 6000~6500K



    Adopt SAMSUNG LED Chip as the light source and aluminum alloy for the shell. The external cover is oxidation brushed finishing, outstanding performance and better Heat Dissipation with elegant appearance.


    Competitive advantages:

    • Superior Anti Glare LED Downlight;
    • Thick Aluminum Alloy, Attractive Apperance;
    • SAMSUNG Chip, RA85, 85lm/Watt;
    • GS,CB,SAA Approved External Isolated Constant Current Driver;
    • Strong Package to bear oversea transportation.

    Specifications :

    Model Name GH-DLD-20W
    Power Consumption 20W
    Input Voltage AC85 ~265V (50-60Hz)
    Luminous Flux 1700lm±5%
    Driver External Isolated Constant Current Driver
    Beam Angle 120°
    CRI RA80
    Total Harmonic Distortion ≤15%
    Power Factor ≥ 0.95
    Power Supply Efficiency >90%
    Color Temperature 2700~7500K
    Dimension Ø190*H85mm
    Cut Size Ø170mm (6Inch)
    Material Aluminum Alloy + Frosted Acrylic Cover
    Finishing White
    Lamp Head Fixed
    Installation Recessed
    Operating Temperature -20°~ +50°
    Lifespan 50,000 Hours
    Certificate CE, RoHs
    Warranty 3 Years
    Finish Option White
    Power Option in this Series 8inch 30W / 6inch 20W / 4inch 12W

    Recessed LED Downlighting / LED Downlight 20W 3000K CRI80


    Shopping Malls, Stores, Building, supermarkets, hotels, exhibition rooms, museums, display windows, restaurants, art halls, offices, reading rooms etc.


    After Sales Service:

    The product comes with 3 years warranty. Within the warranty period, if the product has a failure occurring under normal usage Ground Halo will provide full tecnical help, free maintenance service or change the product for you based on proof- documents and invoice (copy) of failure product.


    Term of Trade:

    1. Payment: T/T 30% deposit, 70% before shipment ,L/C ,western union or paypal.
    2. Lead time : Within 7 working days after receiving the deposit
    3. Samples: Can be ready in 5 working days once payment received
    4. Shipping port: Shenzhen, China
    5. Discounts : We offer discount for large quantity
    6. Packaging: Neutral package, also can be customized according to customer requirements of Logo, Brand etc.


    Why Choose Us?

    • Your inquiry related to our products or prices will be replied whitin 24 hour
    • Experienced sales to answer all your inquiry in short time.

    • Clients' special requirement is accepted. We also provide Lighting Solution and recommend the best suitable lights to you.

    • Protect your sales area, ideas of design and all your private information.
