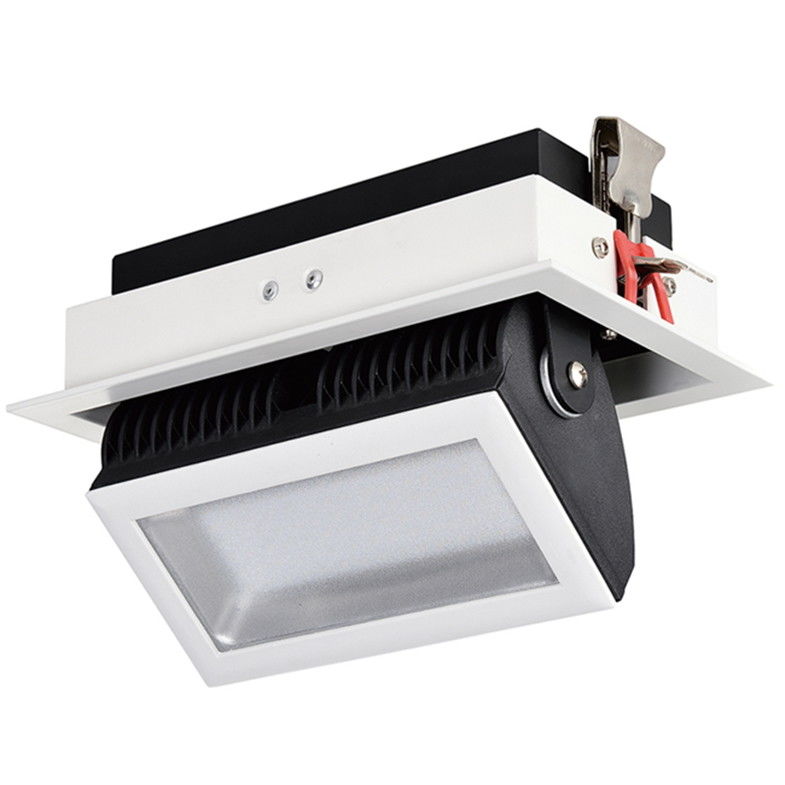

Adjustable 38W LED Recessed Downlights , Die-Casting Aluminum And Glass Lens

Adjustable 38W LED Recessed Downlights , Die-Casting Aluminum And Glass Lens

    • Adjustable 38W LED Recessed Downlights , Die-Casting Aluminum And Glass Lens
    • Adjustable 38W LED Recessed Downlights , Die-Casting Aluminum And Glass Lens
  • Adjustable 38W LED Recessed Downlights , Die-Casting Aluminum And Glass Lens

    Product Details:

    Place of Origin: Shenzhen City, China
    Brand Name: screentech
    Certification: CE/RoHS/SAA
    Model Number: MHS-005-S38W

    Payment & Shipping Terms:

    Minimum Order Quantity: 8PCS
    Price: Negotiation
    Packaging Details: Innder box size:305*176*177mm;Carton size:630*375*375 mm,8PCS/CTNS
    Delivery Time: 7~10 days
    Payment Terms: T/T, L/C, Western Union, cash
    Supply Ability: 5,000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Input Voltage: 100~240V AC Power:: 38W
    CRI (Ra>):: 80 Color Temperature:: Warm White|Natural White|Cool White
    LED Chip:: Sunsang Product Name: Led Downlights

    Adjustable 38W LED Recessed Downlights , Die-Casting Aluminum And Glass Lens



    Quick Detail:

    • Model Number: MHS-005-S38W
    • Item Type: LED Downlights
    • LED Light Source: 75pcs Sunsang 5630
    • Private mold die-casting aluminum+ Glass lens
    • Power: 38W±5%
    • Input Voltage: 100~240V AC
    • Lamp Luminous Efficiency: >73 lm/w
    • CRI (Ra>): 80%
    • Color Temperature(CCT): 2700K+5000K
    • Working Temperature(℃): -20℃~40℃
    • Working Lifetime(Hour): 40000
    • Certification: CE, RoHS, SAA
    • Warranty: 3years
    • IP Rating: IP20


    Structure features:



    1.Superior heat emission structure with patented technology and power supply configuration, The light can work efficiently and safely. Lifespan more than 50000 hours.(the use of ambient temperature is 25℃)



    2.350 rotatable degree, 60 adjustable degree. It can easily satisfy the adjustable beam angle and easy to finish different fixture position.



    3.Wide frame design, the embedded installation dimension is widely used in similar items. It’s a  easy thing for you to replace the light, no need to cut the hole once again.



    4.Optimized light distribution design solution can make the optical property more excellent.



    5.Compare wtih the tranditional metal halide lamp, this light can replace the 75W metal halide lamp at maximum, possessing incomparable performance.Ultra-low energy consumption, high optical property, ultra-long lifespan, safety and reliable are absolutely the choice of your heart.



    Application:

        Widely used in hotels, restaurants, hypermarkets, shops, offices,supermarkets, museums and residential lighting and so on.

    Main technical parameters:

    NO

    Item

    Unit

    Value

    1

    Input voltage

    V

    AC100-240

    2

    Frequency

    Hz

    50/60

    4

    Output voltage

    V

    DC36-48V

    5

    Output current

    mA

    700mA

    6

    PF



    0.9



    1

    Luminousflux

    cool white

    Lm

    2878

    natural white

    3165

    warm white

    3167

    2

    Efficiency

    cool white

    lm/W

    81 lm/W

    natural white

    89 lm/W

    warm white

    89 lm/W

    3

    CCT

    cool white

    K

    5500

    natural white

    4000

    warm white

    3000

    4

    Ra



    ≥80

    5

    Beam angle



    85°

    6

    Rotate the beam angle



    140°

    7

    Operating ambient temperature

    -20 +40

    8

    Operating environment humidity



    10-80%

    9

    Net weight/pcs

    Kg

    1.95

    10

    Dimensions

    mm

    245×152×142

    11

    Certification



    SAA /CE/ ROHS

    12

    Power

    W

    38W±5%

    13

    Led chip



    Samsung

    14

    IP grade



    IP20











































































    IIIumination intensity chart






     Adjustable 38W LED Recessed Downlights , Die-Casting Aluminum And Glass Lens





    Adjustable 38W LED Recessed Downlights , Die-Casting Aluminum And Glass Lens

    Adjustable 38W LED Recessed Downlights , Die-Casting Aluminum And Glass Lens



    Electrical connection:


     Adjustable 38W LED Recessed Downlights , Die-Casting Aluminum And Glass Lens
    Package diagram:

    Adjustable 38W LED Recessed Downlights , Die-Casting Aluminum And Glass Lens


    Packaging Parameters:

    Quantity pcs/carton

    8inner box*1pc downlight/inner box=8

    Weight kg/carton

    18.5kgs

    Inner box size(mm)

    287(L)×185(W)×203(H)

    Carton size(mm)

    585(L)×385(W)×425(H)


    Installation steps(Notes):

    Adjustable 38W LED Recessed Downlights , Die-Casting Aluminum And Glass Lens

    Notes:
    1: All dimensions are in millimeters.
    2: Tolerance is±1mm unless otherwise specified.
    3: Specifications are subject to change without notice



    Adjustable 38W LED Recessed Downlights , Die-Casting Aluminum And Glass Lens
