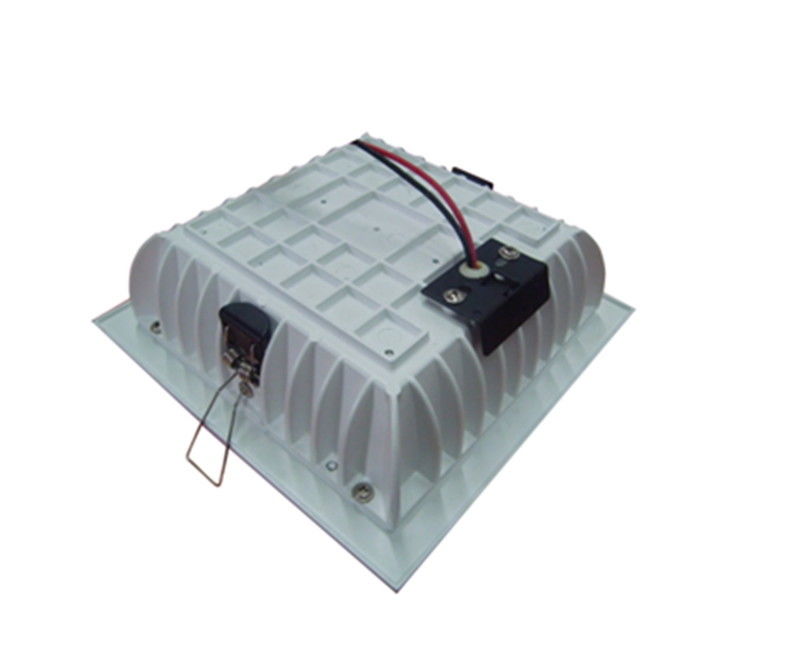

Bathroom 30W LED Recessed Downlights Ceiling Lighting 195mm , Die-Casting Aluminum

Bathroom 30W LED Recessed Downlights Ceiling Lighting 195mm , Die-Casting Aluminum

  • Bathroom 30W LED Recessed Downlights Ceiling Lighting 195mm , Die-Casting Aluminum
  • Bathroom 30W LED Recessed Downlights Ceiling Lighting 195mm , Die-Casting Aluminum
Bathroom 30W LED Recessed Downlights Ceiling Lighting 195mm , Die-Casting Aluminum
Product Details:
Place of Origin: Shenzhen City, China
Brand Name: screentech
Certification: CE/RoHS/SAA
Model Number: FS-195-30W
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Inner box size:235*235*92mm,Carton size:465*450*260mm,12PCS/CTNS
Delivery Time: 7~10 days
Payment Terms: T/T, L/C, Western Union, cash
Supply Ability: 5,000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Input Voltage: 100~240V AC Power:: 30W
CRI (Ra>):: 80 Color Temperature:: Warm White|Natural White|Cool White
LED Chip:: Samsung Product Name: Led Downlights
High Light:

outdoor recessed led downlights

,

recessed adjustable led downlight

Bathroom 30W LED Recessed Downlights Ceiling Lighting 195mm , Die-Casting Aluminum


Quick Detail:

  • Model Number: FS-195-30W
  • Item Type: LED Downlights
  • LED Light Source: 72pcs Samsung 5630
  • Private mold die-casting aluminum+ Glass lens
  • Power: 30W±5%
  • Input Voltage: 100~240V AC
  • Lamp Luminous Efficiency: >73 lm/w
  • CRI (Ra>): 80%
  • Color Temperature(CCT): 2700K+5000K
  • Working Temperature(℃): -20℃~40℃
  • Working Lifetime(Hour): 40000
  • Certification: CE, RoHS, SAA
  • Warranty: 3years
  • IP Rating: IP20


Structure features:


  1. Superior heat emission structure with patented technology and power supply configuration, The light can work efficiently and safely. Lifespan more than 50000 hours.(the use of ambient temperature is 25℃)

       2.Optimized light distribution design solution can make the optical property more excellent. Pass on                the value of illumination spiritually.

Application:

    Widely used in hotels, restaurants, hypermarkets, shops, offices,supermarkets, museums and residential lighting and so on.

Main technical parameters:


NO

Item

Unit

Value

1

Input voltage

V

AC100-277

2

Frequency

Hz

50/60

3

Output voltage

V

DC27-42V

4

Output current

mA

700mA

5

PF



≥0.9



1

Luminousflux

cool white

Lm

2565

natural white

2586

warm white

2492

2

Efficiency

cool white

lm/W

87 lm/W

natural white

87 lm/W

warm white

83 lm/W

3

CCT

cool white

K

5500

natural white

4000

warm white

3000

4

Ra



≥80

7

Operating ambient temperature

-20 +40

8

Operating environment humidity



10-80%

9

Net weight/pcs

Kg

0.9

10

Dimensions

mm

194×194×60

11

Certification



SAA /CE/ ROHS

12

Power

W

30W±5%

13

Led chip



Samsung

14

IP grade



IP20



Bathroom 30W LED Recessed Downlights Ceiling Lighting 195mm , Die-Casting Aluminum 0






Bathroom 30W LED Recessed Downlights Ceiling Lighting 195mm , Die-Casting Aluminum 1

Bathroom 30W LED Recessed Downlights Ceiling Lighting 195mm , Die-Casting Aluminum 2



Electrical connection:

Bathroom 30W LED Recessed Downlights Ceiling Lighting 195mm , Die-Casting Aluminum 3


Package diagram:

Bathroom 30W LED Recessed Downlights Ceiling Lighting 195mm , Die-Casting Aluminum 4


Packaging Parameters:

Quantity pcs/carton

10inner box*1pc downlight/inner box=10

Weight kg/carton

12kgs

Inner box size(mm)

215(L)×215(W)×85(H)

Carton size(mm)

460(L)×260(W)×450(H)


Installation steps(Notes):

Bathroom 30W LED Recessed Downlights Ceiling Lighting 195mm , Die-Casting Aluminum 5

Notes:
1: All dimensions are in millimeters.
2: Tolerance is±1mm unless otherwise specified.
3: Specifications are subject to change without notice



Bathroom 30W LED Recessed Downlights Ceiling Lighting 195mm , Die-Casting Aluminum 6
