| Place of Origin: | Shenzhen, China |
| Brand Name: | SNOOWEL |
| Certification: | CE, RoHS, FCC |
| Model Number: | SW-PNL00-18W |
| Minimum Order Quantity: | No requirement |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Piece in one inner box, 30pcs in one external carton |
| Delivery Time: | 5 to 7 days for sample order, 7 to 15 days for bulk order |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, Paypal |
| Supply Ability: | 100000pcs per month |
| Item: | Round LED Panel Lights | Power: | 18w |
|---|---|---|---|
| Working Voltage: | AC85-265V | PF: | >0.95 |
| LED Quantity: | 90PCS | Lumens: | Over 1500lm |
| LED Type: | 0.2w 2835 SMD | CRI: | >70Ra, Or >80Ra |
| Size: | 225*13mm | Mounting Size: | 200mm |
| High Light: | LED Circular Panel Lights,LED Ceiling Panel Light |
||

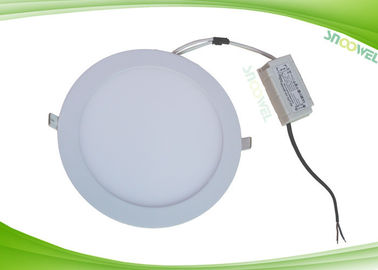

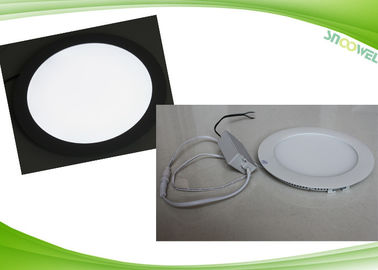

SMD 18W Square or Round LED Panel Lights , Ceiling Flat Panel LED Light Fixtures
|
PRODUCT SPECIFICATIONS |
||||
|
Product name: |
Round led panel light |
|||
|
Model No.: |
SW-PNL00-18W |
|||
|
Power: |
18W |
|||
|
Working voltage: |
AC100-240V, 50/60Hz |
|||
|
PF: |
> 0.95 |
|||
|
Size |
225mm*13mm |
|||
|
Mounting size: |
200mm(diameter) |
|||
|
TECHNICAL CHARACTERISTICS |
||||
|
Color: |
Warm White |
Natural White |
Cool White |
|
|
Color Temperature: |
2700-3200K |
4000-4500K |
6000-6500K |
|
|
CRI: |
>70Ra, can be over 80Ra |
>70Ra, can be over 80Ra |
>70Ra, can be over 80Ra |
|
|
Lumens: |
1600LM |
|||
|
View angle: |
120 degree |
|||
|
CONFIGURATIONS |
||||
|
LED chip: |
0.2w 2835SMD |
|||
|
LED Qty: |
90pcs |
|||
|
Body color: |
White, or Silver |
|||
|
OTHERS |
||||
|
Operating Temperature: |
-30℃ to 50℃ |
|||
|
Operating Humidity: |
20%-90% RH |
|||
|
Storage Temperature: |
-30℃ to 60℃ |
|||
|
Warranty: |
3 Years |
|||
|
Certificates: |
CE, RoHS, FCC |
|||
Main Features of our round led panel light:
1. High raising efficiency and saving energy,1000 hours consumes only 1kwh
Super long life, up to 50, 000hours.
2. Health light without ultraviolet ray, infrared ray, non producing radiation
Green and environmental protection, no lead, mercury and phosphorus harmful element, help us to reclamation and recycling
3. Eye protection. No strobe. Working with current power, eliminate the visual fatigue caused by the stroboscopic of traditional light source
4. Highly safe low voltage low current, dissipates small, not produce potential safety hazard
Application
1. Illumination lighting for homes, offices, restaurants, hotels, malls, buses, trains, warehouses, parking lots etc.
2. Task lighting for cabinets, cupboards etc in your homes, restaurants, and kitchens or any other places where accent lighting is required.
3. Display lighting for the articles in your stores and shops.
4. Back lighting for square billboards or advertisement boards
Quality Control:
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours' lighting.Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.
