Party Show Active Speaker Box Line Array System With 15 Inch Subwoofer

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	CVR
Certification:	CE,RoHS
Model Number:	W-210BP

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	Negotiation
Packaging Details:	Carton Box & Flight Case
Delivery Time:	5--8 Work Days
Payment Terms:	D/A, D/P, L/C, Western Union
Supply Ability:	1000 Pieces Per Month

Contact Now

Detailed Product Description

Model Number::	W-210A&W-250A	Type:	Passive Two Way Line Array Speaker System
Brand Name::	CVR	Power::	1200W(RMS)2400W(PEAK)(W-250A)
Input Connectors::	2-Neutrik NL4	Size:	10" Neodymium Woofers
Finish:	Water-proof,wear-resistant
Highlight:	audio line array

Party Show Active Speaker Box Line Array System With 15 Inch Subwoofer

DESCRIPTION and APPLICATION

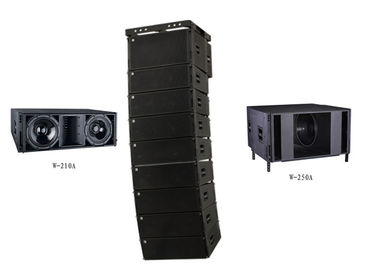

W-210A is a line array system which is made of two 10” neodymium woofers, two 2” titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. It is a zero interfere line array with multi- speaker combined to produce accurate directivity and maximum dynamic impact. Wherever low frequency extension is required, a W-210A will integrate seamlessly with W-250A line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-210A is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.

W-250A is dedicated high performance sub-bass system designed to augment the low frequency output of the W-210A, W-250A is a sub-bass enclosure which must be flown with W-210A. So its physical dimensions are identical to the W-210A and it is equipped with the same proprietary rigging system. It features with twin 15” neodymium woofers with magnet structure and suspensions engineered for maximum linear excursion.

Model	W-210A/W-250A
Type	Line array system
Type	Line array sub-bass system(W-250A)
Frequency Response	60Hz-20KHz±3dB
Frequency Response	40Hz-150Hz±3dB(W-250A)
Power handling	LF 600W(RMS)1200W(PEAK)
	HF 160W(RMS)320W(PEAK)
	1200W(RMS)2400W(PEAK)(W-250A)
Sensitivity	LF 99dB(1W-1M)
	HF 108dB(1W-1M)
	112dB(1W-1M)(W-250A)
Max-S.P.L	LF 127dB(PEAK/1M)
	HF 127dB(PEAK/1M)
	143dB(PEAK/1M)(W-250A)
LF section	2×10"(260mm) neodymium woofer
LF section	75mm(3in)coil
Components	2×15"(380mm) woofers
Components	100mm(4in)coil(W-250A)
Nominal impedance	16 ohm
Nominal impedance	4 ohm(W-250A)
HF section	2×2"neodymium compression driver
HF section	with 51mm titanium diaphragm
Nominal impedance	16 ohm
Output section	2-channel
Dispersion pattern	110°H×9°V
Finish	Water-proof,wear-resistant textured black paint
Array design	Arrays of less than 3×W-210A will
	provide poor dispersion control and
	are neither recommended nor supported
Speaker cables	LF 1(+)1(-) HF 2(+)2(-)
Speaker cables	1(+)1(-) (W-250A)
Rigging system	Please refer to the W-210A user
Rigging system	manual before any operation
Input connectors	2×NL4MP speakon
Recommend crossover	LF 70Hz-2kHz
	HF 2kHz-20KHz
	35Hz-120Hz(W-250A)
Dimensions	855×293×600mm(W×H×D)
Dimensions	855×440×820mm(W×H×D)(W-250A)
Package dimensions	925×360×670mm/0.22cbm
Package dimensions	925×510×890mm/0.42cbm(W-250A)
Enclosure	Birch plywood
Net weight	42kg (W-210A)/ 72kg (W-250A)
Gross weight	45kg (W-210A)/ 76kg (W-250A)

Party Show Active Speaker Box Line Array System With 15 Inch Subwoofer 0

Party Show Active Speaker Box Line Array System With 15 Inch Subwoofer 1

Features

Detachable front dolly panel
High fidelity, durability and light weight
Three-way large format line array module
15loudspeaker with neodymium magnet
3loudspeakers with neodymium magnetic ine array
Captive figging system intergrated in the cabinet design with good quality birch plywood

Our Unique Advantage

Small order accept
Green Paint, low pollution
Flat aluminum wire for the woofer
All are textured, durable birch plywood
Plug is Neutrik, endure repeatedly plug
Import loudspeaker cone, Good elasticity for woofer

Package&Delivery

--Carton or flycase

--At buyers' option

CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !

Guangzhou CVR Pro Audio Factory is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.
