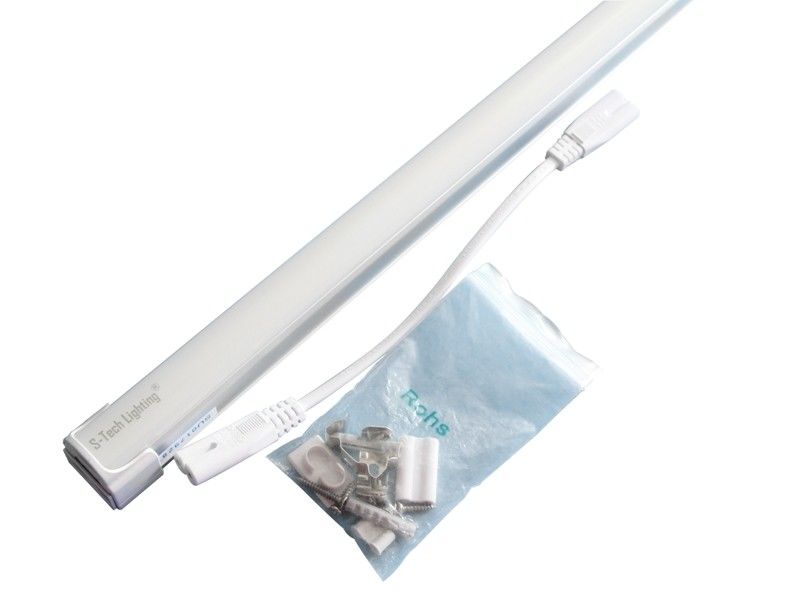

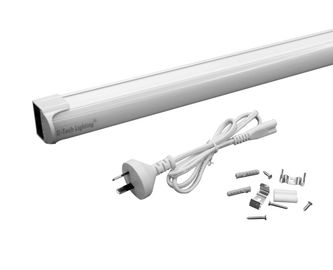

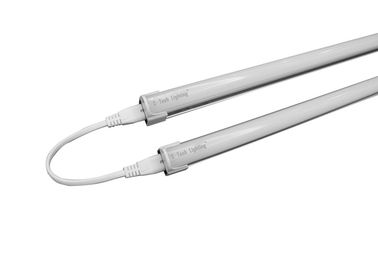

LED T5 tube light

Indoor Eco friendly fireproof Aluminum T5 LED Tube Light 4ft 1700Lm high Luminous

Quick Detail:

Japanese led light tube 20W with PSE ETL SAA, CE ROHS 2ft 1200mm 20W 105L20-X30 T5 LED Tube Light Fixtures

• Model Number: 105L20-X30
• Item Type: 1.2m LED T5 tube
• Light Source: Epistar 3014SMD 10*30mil
• Lamp Body Material: Pure Aluminum Alloy+ PC cover (94-V0)
• Power: 20W
• Input Voltage(V): AC 110~240V
• Light efficiency: 80lm/w
• Certification: CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,
• Service: OEM label-print
• Warranty: 3years

Description:

• Model Number: 105L20-X30
• Item Type: 1.2m LED T5 tube light
• Light Source: Epistar 3014SMD 10*30mil
• Lamp Body Material: Pure Aluminum Alloy+ PC cover (fire-proof 94-V0, imported form Taiwan, you can choose frosted, transparent PC, the luminousness is ≥ 90%)
• Power: 20W
• Input Voltage: 110~240V AC
• Light efficiency: 80lm/w
• Lamp Luminous Flux:1500~1700Lm
• Lamp Luminous Efficiency(lm/w): 90
• CRI (Ra>): 70
• Color Temperature: Warm White(3000K±300K), Natural White(4000K±400K), Cold White(5700K±570K)
• Working Temperature: -20℃ - 40℃
• Working Lifetime: 40000hrs
• IP Rating: IP33
• Certification: CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,
• Service: OEM label-print
• Warranty: 3years

Applications:

Widely used in the lighting of office, hospital, school, business area, airport, metro station, flyover, signboard, Gymnasium, landmark and so on.

Specifications:

Size:

Flux Diagram:

Certificate Applicable:

CE Applicable standards: EN55015:2006+A12007+A2:2009

                                         EN61547:2009

                                         EN61000-3-2:2006+A1:2009+A2:2009

                                         EN61000-3-3:2008

Packing:

Qty/CTN:  20pcs

Gross Weight:11.2Kg

Size of Carton:

CTN A: 123×42×42mm

CTN B: 1245×242×200mm

Competitive Advantage:

＊ Structure & Material

1) We use high quality pure Aluminum Alloy, it is heavier than other supplier tube, our PC cover is fire-proof 94-V0 and imported from Taiwan.

2) PC cover has frosted, translucent, optical for you choose, the luminousness is ≥ 90%

3) The PC shell has anti-oxidation processing, not turn to Yellow within 3 years!

4)Electrolytic capacitor- Rubicon; LED- Epistar chip (Taiwan Brand); MLCC- TDK (Japanese Brand),Yageo (Taiwan Brand); MOS-UTC (Taiwan Brand)/Infineon (Germany Brand)

＊ Optics Design

1) Glare Index <19, No glare for our nice optics design

2) The lighting effect is very even (just like traditional fluorescent tube

＊ Quality Control & Lead time Control

1) Strict Materials testing & purchasing

2) Automatically production with SMT & Reflow Soldering machines

3) Strict test processing: Special Automatically Aging test line, integrating sphere test..) to warranty stable tubes ex-factory.

4) Product Reject Ratio is <2‰, we guarantee 3 years strictly!

＊ Certificate

 CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,

CE 120cm T5 SMD led tube light, 20W 1.2m T5 led tube lighting, 20W 3014SMD T5 led tube lamp
