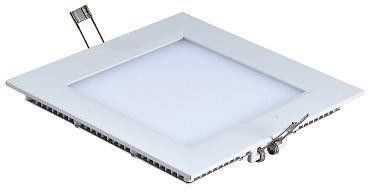

Family 18W High Lumen LED Flat Panel Lights Cool White 6000K , LED Flat Panel Ceiling Lights

Family 18W High Lumen LED Flat Panel Lights Cool White 6000K , LED Flat Panel Ceiling Lights

    • Family 18W High Lumen LED Flat Panel Lights Cool White 6000K , LED Flat Panel Ceiling Lights
    • Family 18W High Lumen LED Flat Panel Lights Cool White 6000K , LED Flat Panel Ceiling Lights
  • Family 18W High Lumen LED Flat Panel Lights Cool White 6000K , LED Flat Panel Ceiling Lights

    Product Details:

    Place of Origin: China
    Brand Name: Safe light
    Certification: CE,ROHS
    Model Number: SLFP18W
    Contact Now
    Detailed Product Description



    Family High Lumen LED Flat Panel Lights Cool White 6000K , LED Flat Panel Ceiling Lights



    Body Materials AL + PC + PMMA LED Flat Panel Light 18 Wattage Luminous Flux 1800LM




    Description:



    1.  LED panel light are widely used in office, family, station, public area, etc

    2.  Long life span: 35,000+ hours in average

    3.  Super thin design

    4.  With excellent heat-dissipation structure



    Quick Detail:



    1.  LED Brand: Epistar Chip

    2.  Frequency Range:50-60Hz

    3.  Certificate:CE RoHS

    4.  Brand Name: Safe Light



    Specifications :



    PARAMETER



    ·  Item NO:

    SLFP18W W/NW/WW

    ·  Dimension:

    225mm x 225mm/Cut hole 200mm x 200mm

    ·  LED type:

    SMD 2835

    ·  LED Q'ty:

    90pcs

    ·  Material:

     Aluminum

    ·  Working temperature:

     -20.C~50.C

     ·  Installation method:

    Embedded.

    ·  IP rate

     IP40

     ·  N.W.(±0.1Kg)

     0.85Kg



    ·

     PHOTOELECTRICITY PARAMETER



    ·  CCT :

    2900-6500K

    ·  Light Efficiency(±10%):

    100lm / Watt

    ·  Flux.(±10%):

    1800lm

    ·  Input voltage:

    AC 86-265V

    ·  Input Power:

    18W

    ·  CRI:

    Ra>80

    ·  Dimmable:

    Non Dimmable

    ·  Lighting Angle:

    120°





    DIMENSIONAL DRAWING

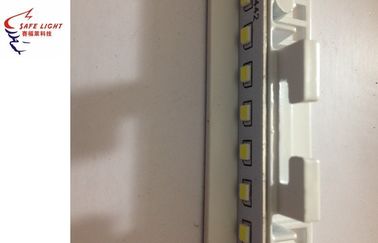

    PRODUCT DETAILS FOR 18 W LED FLAT PANEL LIGHT






    Applications:




    ◎ Commercial  lighting, environmentally friendly lighting, warehouse , supermarket  and home illumination.
    ◎ IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hotel  and other public places.
    ◎ Exhibition Hall, art galleries, museums, offices, reading-room, corridor, staircase lighting,such as contour rangE



    Installation instrustions







    Why choose us?


    1. Every down light will pass 18 tests (including led chip light output test, voltage test, power supplier test, light shell test,and so on) before we delivery.
    2. We use top range material for led down light, for example, led chip from taiwan, the die casting shell , and very stable power supplier.
    3. Fast lead time
    4. Fast response
    5. Wow price



    thanks for your inquiry, we will response you in 8 hours.

    Led Panel light; 18 W Led  panel; Led Light panel
