| Place of Origin: | China |
| Brand Name: | Die Casting Man/OEM |
| Certification: | CE,ROHS, UL,SAA |
| Model Number: | ZHSL-04-180(180W) |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | US$70.5-US$76 |
| Packaging Details: | Carton box with foam |
| Delivery Time: | 7-30 days base on order quantity |
| Payment Terms: | By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union, L/C |
| Supply Ability: | 10000PCS/Month. |
| Manufacturer: | Ninghai Zhouhua Die Casting Co.,Ltd | Material: | ADC12 Aluminum |
|---|---|---|---|
| Wattage: | COB 180W | Fixture Color: | Grey |
| IP: | 65 | LED Color: | WW/NW/CW |
| CRI: | >70 | Input Voltage: | AC85 - 265V |
| Frequency Range: | 50 - 60Hz | Working Ambient Humidity: | 10% - 90% |
| Working Ambient Temperature: | -30℃ - 50℃ | ||
| High Light: | street light fittings,led street light |
||

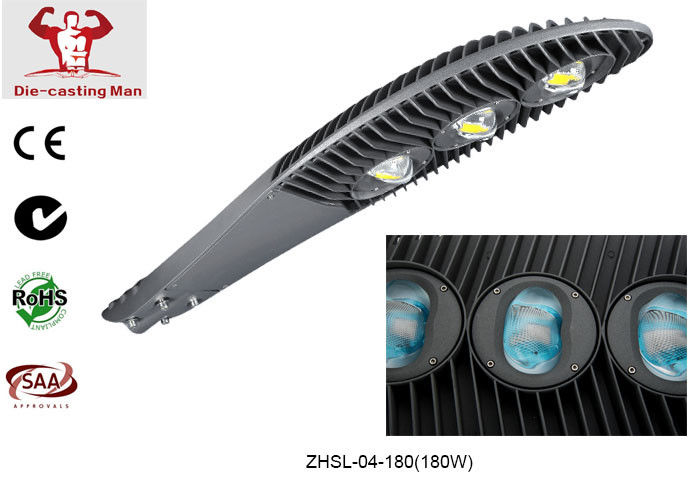

IP65 COB 180W Outdoor LED Street Lights Grey color for Roadway AC85-265V
Quick Detail:
|
Name |
Cob 180W Led Steet lights |
Application |
Use for Roadway |
|
Color |
Grey |
Feature |
New Design |
|
Lamp Luminous Flux(lm) |
18000 |
Certificate |
CE/ROHS |
Description:
New Design High power 180W LED streetlight made of High quality Die Casting Aluminum housing with brighting LED and long life Driver
1. The latest version of high power COB Street Light Housing
2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system,which can hold maximum 3pcs of 60W Bridgelus COB led.
3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.
4. IP65 protection grade.
5. User-friendly mechanical designing,easy to assemble the led,potic lense and led power supply.
6.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.
Applications:
Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.
Specifications
|
Model Number |
ZHSL-04-180(180) |
|
|
Electrical Specifications |
LED QTY |
60W x3Pcs |
|
TotaLPower consumption |
185W |
|
|
Operation Voltage |
85-265VAC or 12VDC or 24VDC |
|
|
Operating Humidity |
10%~90% |
|
|
Working Temperature |
-30 ~ 50°C |
|
|
Power Fact(PF) |
>0.95 |
|
|
Driver Efficiency |
> 0.9 |
|
|
Photometric Specifications |
LED Luminous Flux |
18000 lm - Initial |
|
|
165600 lm - Maintain |
|
|
Led Luminous Efficiency |
>100LM/W |
|
|
CRI |
Ra ≥ 70 |
|
|
LED Color |
3000k-6500k |
|
|
Mechanical Specifications |
IP Rating |
IP65 |
|
Warranty |
5Years |
|
|
Heat Radiator |
die-casting body as heat sink |
|
|
Lens |
Patented anti-glare optic lense |
|
|
Fixture Dimension |
950x347x155MM |
|
|
Fixture Weight |
10.5kgs(23.1lbs) |
|
|
Packing Information |
Packing Type |
1unit /ctn |
|
Packing Dimension |
100.5x40 x21 cm (39.6” x15.7” x8.3”) |
|
|
Packing Weight |
12.5kgs(27.6lbs) |
|
