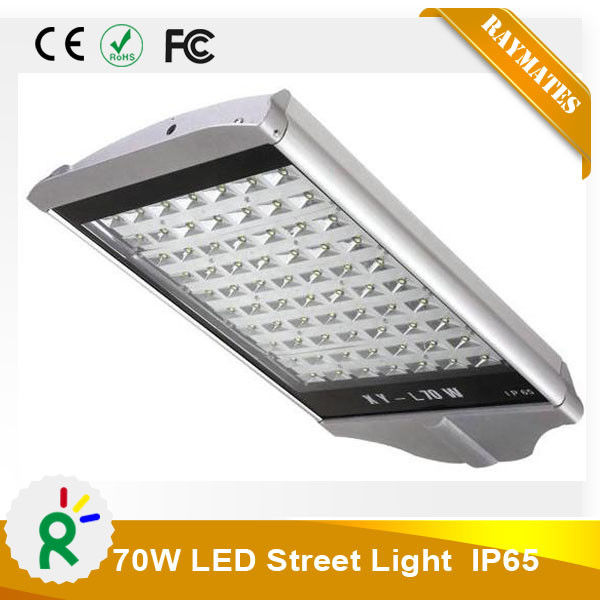

IP65 Waterproof Outdoor LED Street Lights 70 W Wide Beam Angle

IP65 Waterproof Outdoor LED Street Lights 70 W Wide Beam Angle

  • IP65 Waterproof Outdoor LED Street Lights 70 W Wide Beam Angle
IP65 Waterproof Outdoor LED Street Lights 70 W Wide Beam Angle
Product Details:
Place of Origin: Shenzhen China
Brand Name: Raymates
Certification: CE ROHS
Model Number: RM-LD70-D
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: US$112-116/Unit
Packaging Details: Individually Packed
Delivery Time: 3-5days
Payment Terms: T/T Western Union Paypal Bank Transfer
Supply Ability: 50000 Piece/Pieces / Month
Contact Now
Detailed Product Description
LED Qty.: 70pcs LED Qty.: 70pcs
Luminous Efficiency: 70~110LM/W Certification: CE, RoHS, FCC
IP Grade: IP65 Lamp Efficiency: >85%
LED Chip Brand: Bridgelux Life Span: >30000hrs
Power: 70W Product Name: LED Street Light
Voltage: AC85~265V
High Light:

LED Street Lighting

,

Outdoor LED Light

IP65 Waterproof Outdoor LED Street Lights 70 W Wide Beam Angle





Quick Detail:



  • · Die-casting aluminum housing
  • · AC85~265V input options
  • · 70w power consumption
  • · IP65 Ingress protection
  • · CE, RoHS compliant
  • · 3 Year Warranty



Description:

      High quality power supply,reliable and stable,universal input voltage:AC85-265V/277V.

      Unique optical design & rectangular beam suitable for road way illumination.

      Light control and time-phase dimming saving further energy,automatically reduce current againt                 overheating temperature.

      Convenient for maintenance,more than 70% energy saving.



Applications:

Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.



Specifications:



Tech Date



Model

RM-LD70-002

LED Qty

70pcs

LED Type

Bridgelux

LED Power

70W

LED Color

Warm white, Pure white, Cool white

Input Voltage

AC85~265V

Frequency Range

50Hz – 60Hz

Power Factor

>98

Power Efficiency

>85%

Luminous Efficiency

70LM~110LM/W

Color Temperature

WW

2700K-3500K

PW

4000K-5500K

CW

6000K-7000K

CRI

WW

Ra>70

PW

Ra>75

CW

Ra>75

Lamp Efficiency

>85%

Lumens Output

WW

7000lm

PW

7700lm

CW

8400lm

Beam Angle

120° or 50°

Working Temperature

-40℃ ~ +55℃

Storage Temperature

-25℃ ~ +65℃(25℃best)

Life span

>30000hrs

Certification

CE, RoHS, FCC

IP Grade

IP65

Housing Color

Silver or Black

Net Weight

10.5kgs

Dimension

452*288*80mm

package

58*36*29cm (4pcs/box) G.W.: 12.5kgs





Competitive Advantage:



  • Health: Won't cause eye fatigue and helps to protect eye health.
  • Safety: Won't do harm to body with no harmful substances such as mercury and lead.
  • Color rendering: LEDs for led street ligh applications have been designed to achieve a warm, white light that ranges >80 on the color rendering index (CRI).
  • Color temperature: From 2700K~6500K, customers can choose according to requirements.
  • High quality: High power factor, constant voltage power supply and constant flux.
  • Installation flexibility: Can be installed in any orientation with no restrictions.

Application scope: Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
