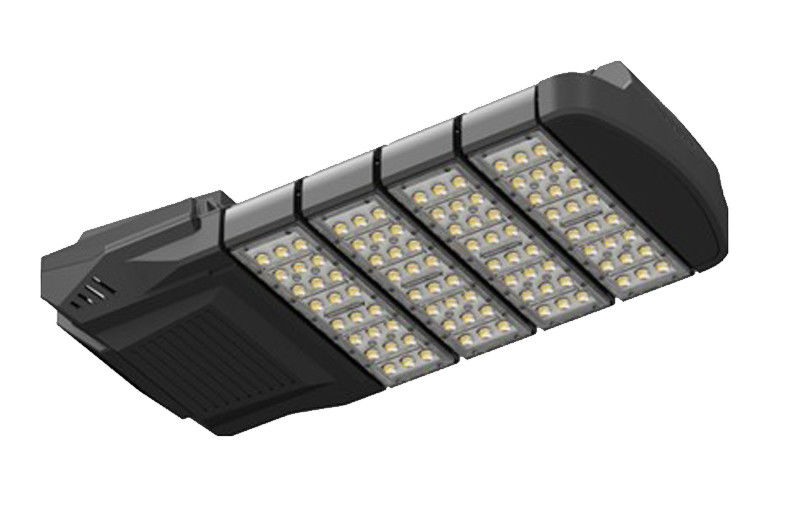

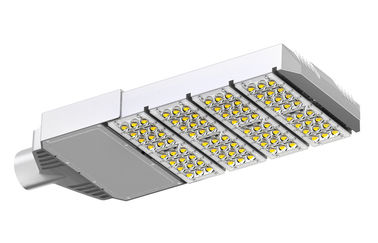

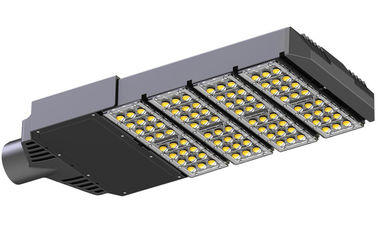

High Power 120W Outdoor LED Street Lights 120 Degree Beam Angle CREE Chip for Square , Billboards LED

High Power 120W Outdoor LED Street Lights 120 Degree Beam Angle CREE Chip for Square , Billboards LED

  • High Power 120W Outdoor LED Street Lights 120 Degree Beam Angle CREE Chip for Square , Billboards LED
  • High Power 120W Outdoor LED Street Lights 120 Degree Beam Angle CREE Chip for Square , Billboards LED
  • High Power 120W Outdoor LED Street Lights 120 Degree Beam Angle CREE Chip for Square , Billboards LED
High Power 120W Outdoor LED Street Lights 120 Degree Beam Angle CREE Chip for Square , Billboards LED
Product Details:
Place of Origin: Shenzhen China
Brand Name: Raymates
Certification: CE ROHS
Model Number: RM-LD120
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: Individually Packed
Delivery Time: 3-5days
Payment Terms: T/T Western Union Paypal Bank Transfer
Supply Ability: 50000 Piece/Pieces / Month
Contact Now
Detailed Product Description
LED Qty.: 96pcS Luminous Efficiency: 70~110LM/W
Certification: CE, RoHS, FCC IP Grade: IP65
Lamp Efficiency: >85% LED Chip Brand: CREE
Life Span: >30000hrs Power: 120W
Product Name: Led Street Lights Voltage: AC85~265V
Application: Outdoor|billboards Led|bridge|square Led|stadium|parking Lot|supermarket Beam Angle: 120°|50°
Color Temperature: WW(2700-3500K)|PW(4000-5500K)|CW(6000-7000K) Feature: High Power|commercial|outdoor|exterior|energy Saving|high Brightness|Eco Friendly|long Life|super Br
High Light:

LED Street Light

,

LED Street Lighting

High Power 120W Outdoor LED Street Lights 120 Degree Beam Angle CREE Chip for Square , Billboards LED

Quick Detail:



  • Die-casting aluminum housing
  • Optical grade diffused lens
  • Graduated angle scale
  • Low emitted heat
  • CE, RoHS compliant
  • 3 Year Warranty



Description:

      High quality power supply,reliable and stable,universal input voltage:AC85-265V/277V.

      Unique optical design & rectangular beam suitable for road way illumination.

        Light control and time-phase dimming saving further energy,automatically reduce current againt overheating temperature.

     5*24LED module design,convenient for maintenance,more than 70% energy saving.

Applications:

Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.



 Specifications:

Tech Date



Model

RM-LD120S

LED Qty

96pcs

LED Type

CREE

LED Power

120W

LED Color

Warm white, Pure white, Cool white

Input Voltage

AC85~265V/277V

Frequency Range

50Hz – 60Hz

Power Factor

>98

Power Efficiency

>85%

Luminous Efficiency

70LM/W~110LM/W

Color Temperature

WW

2700K-3500K

PW

4000K-5500K

CW

6000K-7000K

CRI

WW

Ra>70

PW

Ra>75

CW

Ra>75

Lamp Efficiency

>85%

Lumens Output

WW

11500lm

PW

11750lm

CW

12000lm

Beam Angle

120°

Working Temperature

-40℃ ~ +55℃

Storage Temperature

-25℃ ~ +65℃(25℃best)

Life span

>30000hrs

Certification

CE, RoHS, FCC

IP Grade

IP65

Housing Color

Silver or Black

Gross Weight

9.5kg

Dimension

L617*W315*H204mm

package

58*36*29cm (4pcs/box) G.W.: 12.5kgs



Competitive Advantage:



  • Health: Won't cause eye fatigue and helps to protect eye health.
  • Safety: Won't do harm to body with no harmful substances such as mercury and lead.
  • Color rendering: LEDs for led street ligh applications have been designed to achieve a warm, white light that ranges >80 on the color rendering index (CRI).
  • Color temperature: From 2700K~6500K, customers can choose according to requirements.
  • High quality: High power factor, constant voltage power supply and constant flux.
  • Installation flexibility: Can be installed in any orientation with no restrictions.

Application scope: Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
