100W E40 SMD LG 5630 High Power Led Street Light Bulbs With Meanwell Driver

100W E40 SMD LG 5630 High Power Led Street Light Bulbs With Meanwell Driver

    • 100W E40 SMD LG 5630 High Power Led Street Light Bulbs With Meanwell Driver
    • 100W E40 SMD LG 5630 High Power Led Street Light Bulbs With Meanwell Driver
  • 100W E40 SMD LG 5630 High Power Led Street Light Bulbs With Meanwell Driver

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Xintianwell
    Certification: CE/PSE/RoHS
    Model Number: XTCNL-100W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: 1pcs 16*16*33cm / 4pcs 33*33*40cm
    Delivery Time: 7-14 working days after received your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Power: 100 Watts Chip Brand: Original Korea LG 5630 SMD
    Driver: External Meanwell Driver CRI: >82
    Size: 125mm*325mm Luminous Flux: 11000lm ±5%
    Color Temperature: 2700-6500K Input Voltage: 90-305VAC
    Power Factor: >0.95 Cover: Milky Cover Or Transparent Cover
    IP Rating: IP67 •Temperature(°C): -20°C~45°C
    Material: Magnesium Alloy



    CE PSE 100 Wattts E40 Outdoor LED Street Lights with Meanwell Driver High Brightness







    Specifications:



    Item Type

    XTCNL-100W

    Power

    100W

    Replacement

    200-400W

    Input Voltage

    AC90-305V

    Frequency

    50/60Hz

    Size

    W125mm*325mm

    Chip Brand

    SMD LG 5630 chips

    LED Quantity

    420pcs

    Luminous Flux

    11000lm ±5%

    Light Efficiency

    110 lm/w

    Color Temperature

    2700-6500K

    Color Rendering Index

    >82Ra

    Beam Angle

    360°

    Working Temperature

    -30°C~60°C

    IP Rating

    IP67

    Working Lifetime

    50,000 hours

    Material of Cover

    PC made of Japan MITSUBISHI

    Cover Type

    Transparent or Milky Cover

    Material of Chassis

    Magnesium Alloy

    Driver

    External Meanwell Driver

    Holder

    E39/E40

    Lamp Weight:G.W./N.W.

    2.5kg/2.1kg

    Pcs/CTN

    4pcs/Carton

    Box Size(1 pcs)

    160*160*300mm

    Carton Size(4 pcs)

    330*330*350mm









    Description:



    • 1, Magnesium Alloy is a good material with high thermal conductivity;
    • 2, A perfect structure of the heat sink is pretty good for heat dissipation, can enlarge the lifetime of the
    •  whole lamp;
    • 3, The gaps of the cooling fin come into being convention, which is beneficial to heat dissipation;
    • 4, IP65 makes sure that this lamp can be used outdoor, but one important thing is to protect the holder;
    • 5, Only 0.9kg without driver, and with E39/E40 holder, it’s very easy to install and dismount;
    • 6, Using high quality and most popular driver--Meanwell Driver;
    • 7, PC cover, made of Japan MITSUBISHI, which is will not become yellow and not easy to be broken.



    Competitive Advantage:





    • 1,The gaps of the cooling fin come into being convention, which is beneficial to heat dissipation;
    • 2, Can be used in the sealing fixture;
    • 3, Well-distributed and without any light spot;
    • 4, With a pretty appearance and unique design, and it’s easy to install and dismount, can replace
    • 100W to 200W traditional lamps;
    • 5, The driver has a unique automatic limiting current function, which can automatically reduce the
    • current and voltage when the temperature reaches the highest temperature;
    • 6, All the measures make sure that this 100W Corn Light can keep working even if under high
    •  temperature environment, there’s no need to add a fan to dissipate the heat;





    Applications:



    Industrial Places

    Factories, Warehouses, Workshops, Construction Site,

    Public Places

    Courtyard, Parks, Subway, Gas Stations, School, Hospital, Toll Stations,

    Indoor Stadiums, Museums, Convention Centers, Apartments, Villas,

    Commercial buildings;

    Entertainment Places

    Movie theaters, Fitness halls







    Dimension:





    100W E40 SMD LG 5630 High Power Led Street Light Bulbs With Meanwell Driver

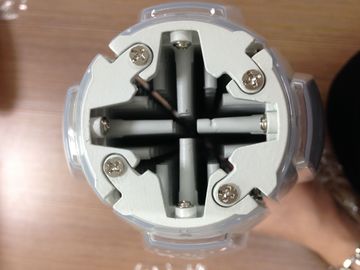

    Heat Sink:

    100W E40 SMD LG 5630 High Power Led Street Light Bulbs With Meanwell Driver







    Warning Note:

    •   Please make sure all the power is turned off before installation is completed.
    •   The ballast must be removed.
    •   Working Voltage:External Driver AC90~305V.
    •    If you need over than 300V, welcome to contact us, we also can make it
