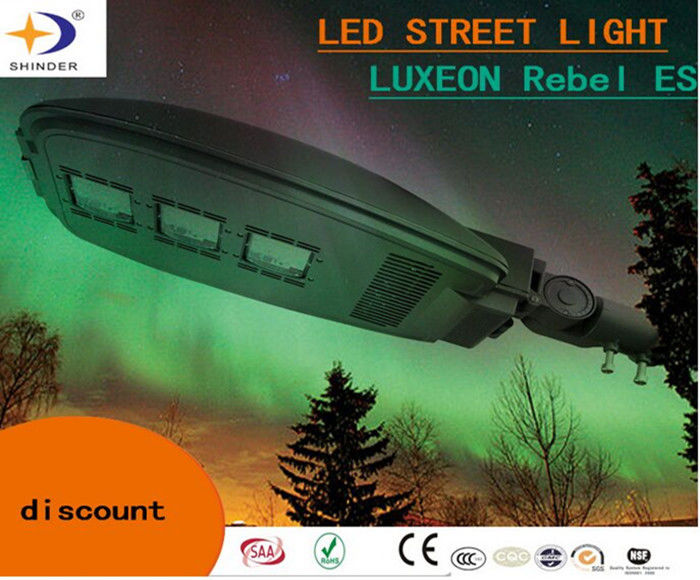

Eco - friendly IP65 SMD 120w Outdoor LED Street Lights , LED Highway Lights

Eco - friendly IP65 SMD 120w Outdoor LED Street Lights , LED Highway Lights

    • Eco - friendly IP65 SMD 120w Outdoor LED Street Lights , LED Highway Lights
    • Eco - friendly IP65 SMD 120w Outdoor LED Street Lights , LED Highway Lights
    • Eco - friendly IP65 SMD 120w Outdoor LED Street Lights , LED Highway Lights
  • Eco - friendly IP65 SMD 120w Outdoor LED Street Lights , LED Highway Lights

    Product Details:

    Place of Origin: China
    Brand Name: SHINDER
    Certification: CE ROHS
    Model Number: SDZD802-120

    Payment & Shipping Terms:

    Minimum Order Quantity: 50
    Packaging Details: 95.5*43.0*22.0 cm / 1 piece / 10.5 kg / CTN
    Delivery Time: 15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1000 pcs per month
    Contact Now
    Detailed Product Description
    Type: 120w Outdoor Led Street Light Light Source: SMD
    LED Light Source: Lumileds Luxeon Rebel ES Voltage(v): 85-265
    Lamp Body Material: Aluminum CCT(K): 4100
    Luminous Flux: 10200 Optional: 0-90 Degree
    Height: 9m,10m

    IP65 warranty 120w outdoor street lights CE and RoHs led street lighting fixture 85-265v

    Specifications:



     Outdoor LED solid state lighting is perfected with the following:



    *Ultrahigh efficacy LED lamp source *Ultrahigh effective thermal radiation system * Precise optical distribution * Long-lasting life



                          Eco - friendly IP65 SMD 120w Outdoor LED Street Lights , LED Highway Lights                                                 Eco - friendly IP65 SMD 120w Outdoor LED Street Lights , LED Highway Lights

    Professional solid state lighting - SHINDER LED series which is present in various modules and offers customers professional solution of uniform lighting, accurate lighting patterns. Shinder lights are based on precise optical designs.



    When the precision optics of projection technology meets LED street lighting, then the street surface at night time can be as square, bright, and even, ans the movie screen...





                Eco - friendly IP65 SMD 120w Outdoor LED Street Lights , LED Highway Lights



     The street surface should be illuminated like a movie screen, so that the night vision can be made as bright, even and homogeneous as watching a movie, without the “bright-and-dark zebra spots” splashed sporadically by traditional street light.



    Great different from LED street light above, the modular LED street light is made of LED light engines,

    an driver module and housing. The LED light engine has built-in optics designed for desired light distribution and built-in heat sink,herefore,the housing serves only for holding the modules, installing and decoration.



    • Light Source: LED
    • Item Type: Street Lights
    • LED Light Source: Lumiled Luxeon Rebel ES
    • Input Voltage(V): 85-265
    • Lamp Power(W): 120
    • Lamp Luminous Flux(lm): 10200
    • Lamp Luminous Efficiency(lm/w): 85
    • CRI (Ra>): 75
    • Color Temperature(CCT): Pure White
    • Working Temperature(℃): -20 - 50
    • Working Lifetime(Hour): 50000
    • Lamp Body Material: Aluminum
    • IP Rating: IP65
    • Certification: CE, EMC, RoHS
    • Warranty(Year): 3
    • Place of Origin: Jiangsu, China (Mainland)
    • Brand Name: Shinder
    • Model Number: SDZD803-120
    • Application: Highway, street, road, park lot, outdoor ground
    • Feature: Energy saving, high efficiency
    • Heat dissipation: Very good
    • Quality: High grade
    • Supply type: Manufacturer
    • Eco-friendly: Yes
    • Body material: High quality Aluminun die-casting

    Eco - friendly IP65 SMD 120w Outdoor LED Street Lights , LED Highway Lights



    Performance:


    High powerHigh brightness High optical
    efficiency
    Save more 70% energy than CFL
    Long lifetime (>50,000 hrs), more 10 times than
    common lamps
    Cold light source

    from professional manufacturer of led lighting about 10 years

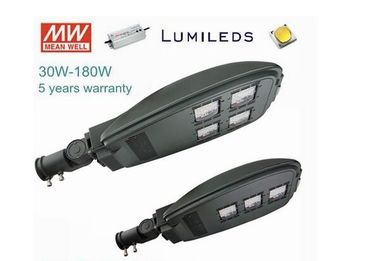

    Advantages of LED street light retrofit kits LED:


    1). Using high quality lumileds luxeon rebel chips
    2). Mean Well UL/cUL driver, very easy for repair/replacement
    3). Various options: 100-277V, 347-480V etc
    4). Higher lumen compared to similar models of others
    5). Positive cooling technology with Fan
    6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up

     to 90%, almost free of maintenance

    arm bracket adjustable angle of led street lighting (from 180degree-165degree or from 90degree to 75degree)



    Description

    1. Stainless steel parts: Endurancing the corrosion of air, water, chemical acid, alkaline,salt and other materials, can be used in all kinds of harsh conditions for long term.

    2 Lamp Housing: High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process.

    3. IP65 waterproof structure:Every gap, screw and interface used the rubber ring with silica gel for waterproof purpose.

    4. Lifespan: led street light has 50000 hours lifespan for using.


    5. Heat sink: Sufficient and thickness liner radiation fin are average distributed on the back of front head by die-casting technology with excellent thermal conductivity.


    6. Warranty:we offers 3-years product warranty for all products. If you need 5-years warranty for this wattage product, please contact us directly.

    7. Led Power Supply: Constant current Mean well series power supply will protect LED chip in correct current and voltage. It provide power factor >0.9 and power efficient > 90% characteristic to ensure power saving. Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.

    8. Led chip: LUXEON® Rebel ES gives you the flexibility you need for designing luminaires and lamps.Tested and binned at 700 mA, confidently design LUXEON Rebel ES into high lumen applications or create more energy efficient devices using the same designers count on LUXEON Rebel ES for quality, realiablity and in-device performance.



    Item Name

    803-100

    Lumen

    8500Lm

    Power

    100W

    LED Type

      SMD

    Voltage

    AC85~265V

    LED Quantity

    LUXEON Rebel ES

    SIZE

    95.50*43.00*22.0cm

    /PC/CTN

    PF

    0.73-0.92

    Material

    Alumimun Die Casting

    G.W/N.W

     10.50/10.00KG

    Operational

    0-90 Degree

    The IP rating

      IP65

    Surface Color

    Grey/Black

    Operation Temperature

      -20℃-+50℃

    Color Temperature

    4100K

    Lamp working temperature

       ≤60℃

    Life Span

    50000 Hours

    Uniformity

     0.45

    Warranty

    3 YEARS

    Power supply circuit

       Constant Current IC Driver

    Certificates

    CE RoHS



    Key Features of Lens Led Street Lamp / Light (SDZD803-100)



    Ø Very durable& stable with strong shell

    Ø  High heat-sink efficiency: Special design to help heat dissipation.

    Ø  Long lifespan; Quick start.
    Ø  Excellent lighting shape.

    Ø Uniform lighting.
    Ø  CE & ROHS compliant.
    Ø  High efficiency LED constant current driver
    Ø  60% energy-saving is more than traditional light.

    Ø  Original America-imported Philips LEDs with excellent luminous efficiency.



    Applications:


    LED StreetLights are widely used for Arterial road,Branch road,Factories,schools,gardens,city squares and so on.


    Competitive Advantage



    1. Easy to be installed.
    2. High uniformity.
    3. Square light stripe

    4. Long life properties
    5. Contains no mercury
    6. High efficiency.
    7. 50,000-hour rated average life;
    8. With IES file
    9. Use Philips LUXEON Rebel ES;

    Packing & Shipping

    1. form stuff supports the lamp
    2. lamp is eveloped inside pc bag
    3. other foam covers the lamp
    4. tough corrugated paper carton packing


    Our service



     Well-trained & experienced sales can reply your inquiries in English.

    ON line with 24 hours

    Your business relationship with us will be confidential to any third party.


    Best price with good-quality

    Your inquiry will be replied within 24 hours.

    Good after-sale service



    Our Capacity



    1) Date of foundation:1994
    2) Annual Sales: Exceed $6 million
    3) Sales Market: Domestic and Overseas markets
    4) About QC: Excellence, quality first is our philosophy
    5) Main Products:Specially in led street light,led flood light, led high bay light
