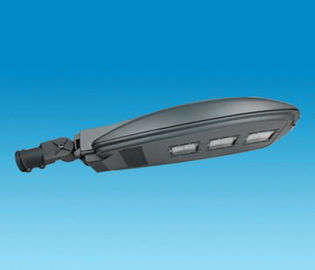

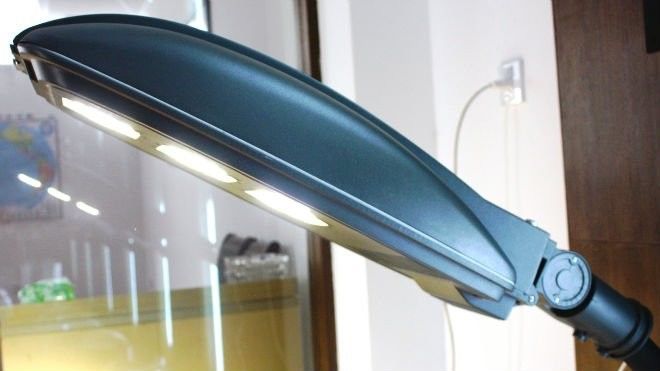

Beam Angle Adjustable Park Lot / Outdoor LED Street Lights High Lumen 85 - 265v

Beam Angle Adjustable Park Lot / Outdoor LED Street Lights High Lumen 85 - 265v

    • Beam Angle Adjustable Park Lot / Outdoor LED Street Lights High Lumen 85 - 265v
    • Beam Angle Adjustable Park Lot / Outdoor LED Street Lights High Lumen 85 - 265v
    • Beam Angle Adjustable Park Lot / Outdoor LED Street Lights High Lumen 85 - 265v
  • Beam Angle Adjustable Park Lot / Outdoor LED Street Lights High Lumen 85 - 265v

    Product Details:

    Place of Origin: China
    Brand Name: SHINDER
    Certification: CE ROHS
    Model Number: SDZD802-100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Packaging Details: 95.5*43.0*22.0 cm / 1 piece / 10.5 kg / CTN
    Delivery Time: 15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1000 pcs per month
    Contact Now
    Detailed Product Description
    Type: 100w Outdoor Led Street Light Light Source: LED
    LED Light Source: Lumileds Luxeon Rebel ES Voltage(v): 85-265
    Lamp Body Material: Aluminum CCT(K): 4100
    Luminous Flux: 5100 Optional: 0-90 Degree

    100w ip65 outdoor led street lights high lumen 85 - 265v CE and ROHS approved street lighting


    Specifications:

    • Light Source: LED
    • Item Type: Street Lights
    • LED Light Source: Lumiled Luxeon Rebel ES
    • Input Voltage(V): 85-265
    • Lamp Power(W): 100
    • Lamp Luminous Flux(lm): 8500
    • Lamp Luminous Efficiency(lm/w): 85
    • CRI (Ra>): 75
    • Color Temperature(CCT): Pure White
    • Working Temperature(℃): -20 - 50
    • Working Lifetime(Hour): 50000
    • Lamp Body Material: Aluminum
    • IP Rating: IP65
    • Certification: CE, EMC, RoHS
    • Warranty(Year): 3
    • Place of Origin: Jiangsu, China (Mainland)
    • Brand Name: Shinder
    • Model Number: SDZD803-100
    • Application: Highway, street, road, park lot, outdoor ground
    • Feature: Energy saving, high efficiency
    • Heat dissipation: Very good
    • Quality: High grade
    • Supply type: Manufacturer
    • Eco-friendly: Yes
    • Body material: High quality Aluminun die-castingBeam Angle Adjustable Park Lot / Outdoor LED Street Lights High Lumen 85 - 265v

    Beam Angle Adjustable Park Lot / Outdoor LED Street Lights High Lumen 85 - 265v



    Description



    1. IP65 waterproof structure:Every gap, screw and interface used the rubber ring with silica gel for waterproof purpose.

    2. Lifespan: led street light has 50000 hours lifespan for using.

    3. Led Power Supply: Constant current Mean well series power supply will protect LED chip in correct current and voltage. It provide power factor >0.9 and power efficient > 90% characteristic to ensure power saving. Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.

    4. Led chip: LUXEON® Rebel ES gives you the flexibility you need for designing luminaires and lamps.Tested and binned at 700 mA, confidently design LUXEON Rebel ES into high lumen applications or create more energy efficient devices using the same designers count on LUXEON Rebel ES for quality, realiablity and in-device performance.

    5. Heat sink: Sufficient and thickness liner radiation fin are average distributed on the back of front head by die-casting technology with excellent thermal conductivity.
     8. Warranty:we offers 3-years product warranty for all products. If you need 5-years warranty for this wattage product, please contact us directly.


    6. Stainless steel parts: Endurancing the corrosion of air, water, chemical acid, alkaline,salt and other materials, can be used in all kinds of harsh conditions for long term.

    7. Lamp Housing: High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process.



    Item Name

    803-100

    Lumen

    8500Lm

    Power

    100W

    LED Type

      SMD

    Voltage

    AC85~265V

    LED Quantity

    LUXEON Rebel ES

    SIZE

    95.50*43.00*22.0cm

    /PC/CTN

    PF

    0.73-0.92

    Material

    Alumimun Die Casting

    G.W/N.W

     10.50/10.00KG

    Operational

    0-90 Degree

    The IP rating

      IP65

    Surface Color

    Grey/Black

    Operation Temperature

      -20℃-+50℃

    Color Temperature

    4100K

    Lamp working temperature

       ≤60℃

    Life Span

    50000 Hours

    Uniformity

     0.45

    Warranty

    3 YEARS

    Power supply circuit

       Constant Current IC Driver

    Certificates

    CE RoHS



    Key Features of Lens Led Street Lamp / Light (SDZD803-100)



    Ø Very durable& stable with strong shell

    Ø  High heat-sink efficiency: Special design to help heat dissipation.

    Ø  Long lifespan; Quick start.
    Ø  Excellent lighting shape.

    Ø Uniform lighting.
    Ø  CE & ROHS compliant.
    Ø  High efficiency LED constant current driver
    Ø  60% energy-saving is more than traditional light.

    Ø  Original America-imported Philips LEDs with excellent luminous efficiency.



    Applications:


    LED Street Lights are widely used for Arterial road,Branch road,Factories,schools,gardens,city squares and so on.


    Competitive Advantage



    1. Easy to be installed.
    2. High uniformity.
    3. Square light stripe

    4. Long life properties
    5. Contains no mercury
    6. High efficiency.
    7. 50,000-hour rated average life;
    8. With IES file
    9. Use Philips LUXEON Rebel ES;


    Packing & Shipping

    1. form stuff supports the lamp
    2. lamp is eveloped inside pc bag
    3. other foam covers the lamp
    4. tough corrugated paper carton packing
