| Place of Origin: | China |
| Brand Name: | SHINDER |
| Certification: | CE ROHS |
| Model Number: | SDZD802-80 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | 62.0*40.5*26.50 cm / 1 piece / 6.50 kg / CTN |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 pcs per month |
| Type: | LED Street Light | IP Rating: | Ip65 |
|---|---|---|---|
| Color: | White, Customized | Voltage(v): | 85-265 |
| Lamp Body Material: | Aluminum | CCT(K): | 4100 |
| Luminous Flux: | 6800 | PF: | 0.73-0.92 |
| Uniformity: | 0.45 | Mounting Height: | 7m,8m |
| High Light: | led road light,led street lamp |
||

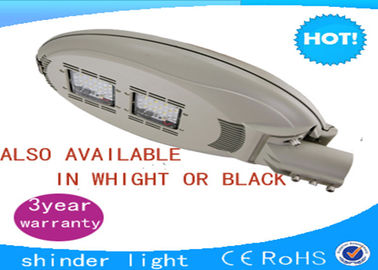

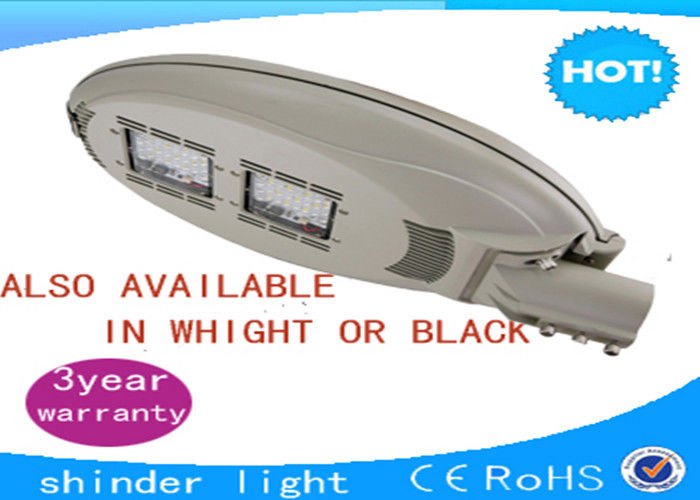

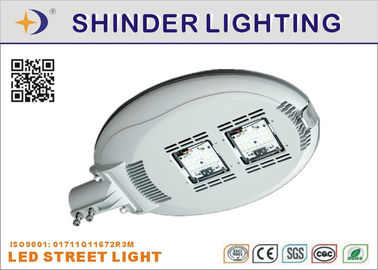

high power adjustable aluminum light meanwell driver 50w-80w led street light outdoor ip65 AC 85-265
Specifications:
1. Super bright: >100 lm/w.
2. Long working life: >50000 hours.
3. Energy saving: save 75% energy than the traditional street light.
4. Enviromental Protection: No IR or UV.
5. Excellent heat Dissipation, No Flashing, No Noise.
6. Long warranty time: 3 Years Guarantee.
| Model | SDZD802-80 |
| voltage(v) | 85-265 |
| power(w) | 80 |
| PF | 0.73-0.92 |
| Luminous Flux | 6800 |
| Uniformity | 0.45 |
| CCT(k) | 4100 |
| Height(M) | 7m,8m |
| warranty(year) | 3 |
* die casting aluminium housing,corrision proof spraying outdoor powder with different color optional,which can retain over 10years same as the new
* lumileds luxeon rebel ES led chips,luminous flux is over 230lux @700mA each chip
* Meanwell LED driver,PF>0.75;>0.85,service efficiency is over 90%,long lifespan
* professional design LED mould with best warterproof performance which can be lighted underwater
* professional light distribution design,display a even rectangle light pattern on the ground,the scale is
1:4.2
* waterproof connection box to get through the cables,IP65
SHINDER led street light uses high power led chips(at present it is mainly Lumileds Luxeon Rebel ES series),which watt is 1.96W @700mA for each chip, then packed different pieces of lumileds led chips on a special heat sink to get different wattage.
Led chip: LUXEON® Rebel ES gives you the flexibility you need for designing luminaires and lamps.Tested and binned at 700 mA, confidently design LUXEON Rebel ES into high lumen applications or create more energy efficient devices using the same designers count on LUXEON Rebel ES for quality, realiablity and in-device performance.Lamp Housing: High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process. IP65 waterproof structure:Every gap, screw and interface used the rubber ring with silica gel for waterproof purpose.Lifespan: led street light has 50000 hours lifespan for using.
Applications:
LED Street Lights are widely used for Arterial road,Branch road,Factories,schools,gardens,city squares and so on.
Competitive Advantage:
1. Use Philips LUXEON Rebel ES;
2. Long life properties
3. Contains no mercury
4. With IES file
5. High efficiency.
6. 50,000-hour rated average life;
Packing & Shipping
1. form stuff supports the lamp
2. lamp is eveloped inside pc bag
3. other foam covers the lamp
4. tough corrugated paper carton packing
