| Place of Origin: | Shenzhen City, China |
| Brand Name: | S-Tech, Lightingtalk |
| Certification: | CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA, |
| Model Number: | 105L20-X30 |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Qty/CTN: 20pcs, Gross Weight: 11.2Kg |
| Delivery Time: | 3~7 days |
| Payment Terms: | L/C,D/P,T/T, Western Union, cash , pay pal |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Working Lifetime: | 40000hrs | Color Temperature: | Warm White, Natural White, Cold White |
|---|---|---|---|
| Features: | High Brightness, Energy Saving | Key Material: | Aluminum Alloy, PC |
| Light Source: | Epistar | Product Name: | T5 LED Tube Light |
| High Light: | LED T5 tube light,led fluorescent tube light |
||

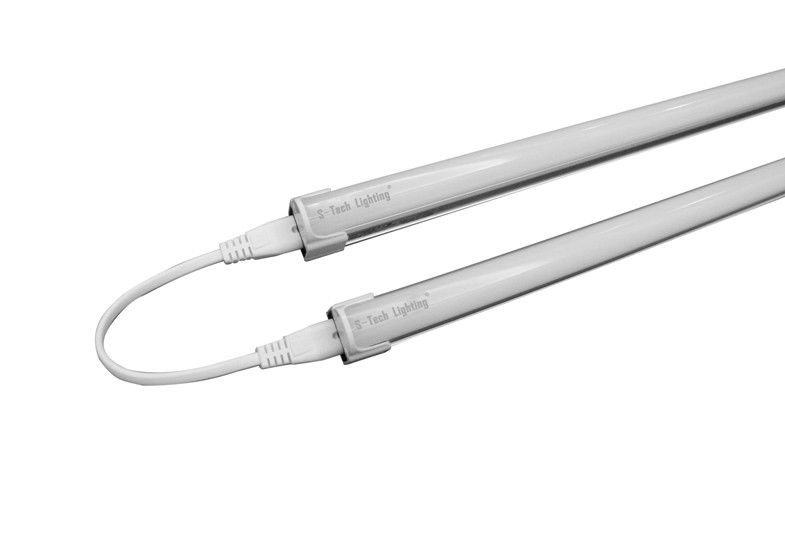

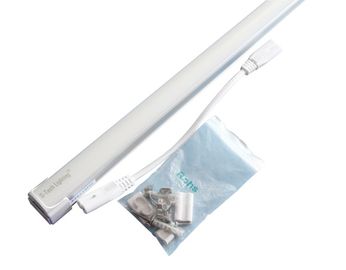

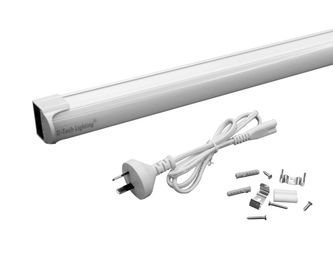

IP33 High brightness Epistar T5 LED Tube Light with 40000hrs super long life 12W 18W 20W
Quick Detail:
Japanese led light tube 20W with PSE ETL SAA, CE ROHS 2ft 1200mm 20W 105L20-X30 T5 LED Tube Light Fixtures
Description:
Applications:
Widely used in the lighting of office, hospital, school, business area, airport, metro station, flyover, signboard, Gymnasium, landmark and so on.
Specifications:
|
Rated Voltage |
100~240VAC / 50~60 Hz |
|
Wattage |
20W* |
|
Power Factor |
>0.85 |
|
Lumen |
1500~1700Lm* |
|
Efficiency |
>75Lm/w* |
|
Beam Angle |
≥180° |
|
Flux(Lux)@1M |
＞350Lux* |
|
Lifespan (hrs) @25℃ |
40,000hrs * |
|
Ambient Temp. (℃) |
-20℃~40℃ |
|
Storage Temp. (℃) |
-40℃~65℃ |
|
Color Temp. |
3000K±300K, 4000K±400K, 5700K±570K |
|
CRI |
＞70% |
|
Key Material |
Aluminum Alloy+ PC Cover |
|
N.W.(g) |
390g* |
|
Warranty |
3years |
|
Item |
Wattage |
CCT(K) |
Flux@1M |
Lumen |
Efficiency |
CRI(%) |
|
105L20-R30 |
20W |
3000K* |
350lux* |
1500lm* |
>75Lm/w* |
＞70% |
|
105L20-T30 |
20W |
4000K* |
370lux* |
1600lm* |
>80Lm/w* |
＞70% |
|
105L20-V30 |
20W |
5000K* |
420lux* |
1700lm* |
>85lm/w* |
>70% |
Size:
|
Item |
Length A |
Length B |
Length C |
Length D |
|
105L20-R/T/V30 |
1170mm |
1165mm |
25mm |
32mm |
Flux Diagram:
|
Distance Item |
1m |
2m |
3m |
|
105L20-R30 |
350 lux |
100 lux |
45 lux |
|
105L20-T30 |
370 lux |
110 lux |
50 lux |
|
105L20-V30 |
420 lux |
120 lux |
55 lux |
Certificate Applicable:
CE Applicable standards: EN55015:2006+A12007+A2:2009
EN61547:2009
EN61000-3-2:2006+A1:2009+A2:2009
EN61000-3-3:2008
Packing:
Qty/CTN: 20pcs
Gross Weight:11.2Kg
Size of Carton:
CTN A: 123×42×42mm
CTN B: 1245×242×200mm
Competitive Advantage:
＊ Structure & Material
1) We use high quality pure Aluminum Alloy, it is heavier than other supplier tube, our PC cover is fire-proof 94-V0 and imported from Taiwan.
2) PC cover has frosted, translucent, optical for you choose, the luminousness is ≥ 90%
3) The PC shell has anti-oxidation processing, not turn to Yellow within 3 years!
4)Electrolytic capacitor- Rubicon; LED- Epistar chip (Taiwan Brand); MLCC- TDK (Japanese Brand),Yageo (Taiwan Brand); MOS-UTC (Taiwan Brand)/Infineon (Germany Brand)
＊ Optics Design
1) Glare Index <19, No glare for our nice optics design
2) The lighting effect is very even (just like traditional fluorescent tube
＊ Quality Control & Lead time Control
1) Strict Materials testing & purchasing
2) Automatically production with SMT & Reflow Soldering machines
3) Strict test processing: Special Automatically Aging test line, integrating sphere test..) to warranty stable tubes ex-factory.
4) Product Reject Ratio is <2‰, we guarantee 3 years strictly!
＊ Certificate
CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,
CE 120cm T5 SMD led tube light, 20W 1.2m T5 led tube lighting, 20W 3014SMD T5 led tube lamp
