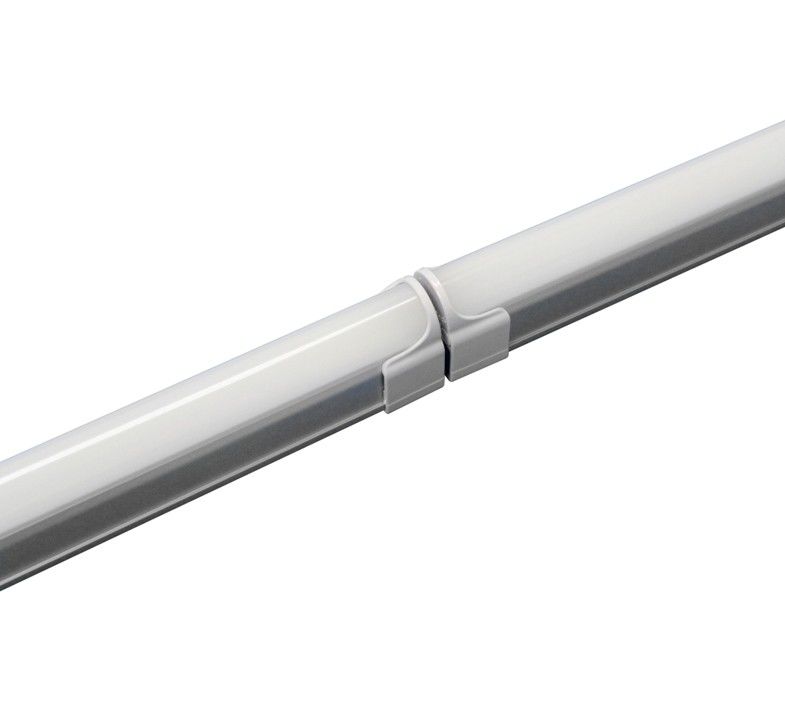

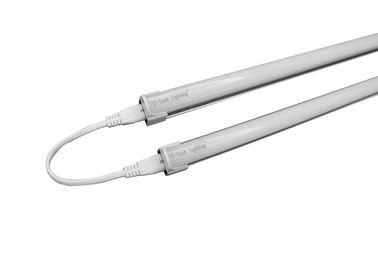

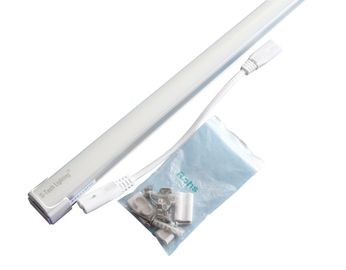

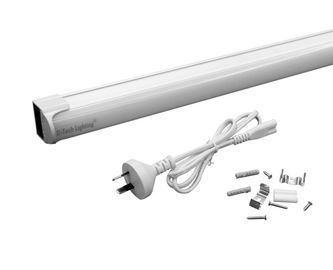

Energy Saving SMD T5 LED Tube Light

Energy Saving SMD T5 LED Tube Light

    • Energy Saving SMD T5 LED Tube Light
    • Energy Saving SMD T5 LED Tube Light
    • Energy Saving SMD T5 LED Tube Light
    • Energy Saving SMD T5 LED Tube Light
    • Energy Saving SMD T5 LED Tube Light
    • Energy Saving SMD T5 LED Tube Light
  • Energy Saving SMD T5 LED Tube Light

    Product Details:

    Place of Origin: Shenzhen City, China
    Brand Name: S-Tech, Lightingtalk
    Certification: CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,
    Model Number: 105N15-X30

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiation
    Packaging Details: Qty/CTN: 20pcs, Gross Weight: 9.5Kg
    Delivery Time: 3~7 days
    Payment Terms: L/C,D/P,T/T, Western Union, cash , pay pal
    Supply Ability: 100000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    IP Rating: IP33 Power: 15W
    Tube Length: 0.9m Application: Home
    Color Temperature: Warm White Features: Energy Saving
    Light Source: Epistar Product Name: T5 LED Tube Light, T5 LED Tubes





    0.9m Energy Saving 15W SMD T5 LED Tube Light , 3000K Warm White T5 LED tubes for home





    Quick Detail:



    Japanese led light tube 15W with PSE ETL SAA, CE ROHS 2ft 900mm 15W 105N15-X30 T5 LED Tube Light Fixtures

    • Model Number: 105N15-X30
    • Item Type: 0.9m LED T5 tube
    • Light Source: Epistar 3014SMD 10*30mil
    • Lamp Body Material: Pure Aluminum Alloy+ PC cover (94-V0)
    • Power: 15W
    • Input Voltage(V): AC 110~240V
    • Light efficiency: 80lm/w
    • Certification: CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,
    • Service: OEM label-print
    • Warranty: 3years



    Description:



    • Model Number: 105N15-X30
    • Item Type: 0.9m LED T5 tube light
    • Light Source: Epistar 3014SMD 10*30mil
    • Lamp Body Material: Pure Aluminum Alloy+ PC cover (fire-proof 94-V0, imported form Taiwan, you can choose frosted, transparent PC, the luminousness is ≥ 90%)
    • Power: 15W
    • Input Voltage: 110~240V AC
    • Light efficiency: 80lm/w
    • Lamp Luminous Flux:1125~1275Lm
    • Lamp Luminous Efficiency(lm/w): 90
    • CRI (Ra>): 70
    • Color Temperature: Warm White(3000K±300K), Natural White(4000K±400K), Cold White(5700K±570K)
    • Working Temperature: -20℃ - 40℃
    • Working Lifetime: 40000hrs
    • IP Rating: IP33
    • Certification: CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,
    • Service: OEM label-print
    • Warranty: 3years



    Applications:



    Widely used in the lighting of office, hospital, school, business area, airport, metro station, flyover, signboard, Gymnasium, landmark and so on.





    Specifications:



    Rated Voltage

    100~240VAC / 50~60 Hz

    Wattage

    15W*

    Power Factor

    >0.85

    Lumen

    1125~1275Lm*

    Efficiency

    >75Lm/w*

    Beam Angle

    ≥180°

    Flux(Lux)@1M

    >270Lux*

    Lifespan (hrs) @25℃

    40,000hrs *

    Ambient Temp. (℃)

    -20℃~40℃

    Storage Temp. (℃)

    -40℃~65℃

    Color Temp.

    3000K±300K, 4000K±400K, 5700K±570K

    CRI

    >70%

    Key Material

    Aluminum Alloy+ PC Cover

    N.W.(g)

    310g*

    Warranty

    3years



    Item

    Wattage

    CCT(K)

    Flux@1M

    Lumen

    Efficiency

    CRI(%)

    105N15-R30

    15W

    3000K*

    270lux*

    1125lm*

    >75Lm/w*

    >70%

    105N15-T30

    15W

    4000K*

    300lux*

    1200lm*

    >80Lm/w*

    >70%

    105N15-V30

    15W

    5000K*

    325lux*

    1275lm*

    >85lm/w*

    >70%



    Size:

    Item

    Length A

    Length B

    Length C

    Length D

    105N15-R/T/V30

    870mm

    865mm

    25mm

    32mm











    Energy Saving SMD T5 LED Tube Light

    Flux Diagram:



               Distance

    Item

    1m

    2m

    3m

    105N15-R30

    270 lux

    75 lux

    35 lux

    105N15-T30

    300 lux

    90 lux

    40 lux

    105N15-V30

    325 lux

    91 lux

    41 lux



    105L20-V30

    420 lux

    120 lux

    55 lux





    Certificate Applicable:



    CE Applicable standards: EN55015:2006+A12007+A2:2009

                                             EN61547:2009

                                             EN61000-3-2:2006+A1:2009+A2:2009

                                             EN61000-3-3:2008

    Energy Saving SMD T5 LED Tube Light

    Energy Saving SMD T5 LED Tube Light

    Packing:



    Qty/CTN:  20pcs

    Gross Weight:9.5Kg

    Size of Carton:

    CTN A: 932×42×42mm

    CTN B: 945×242×200mm

    Energy Saving SMD T5 LED Tube Light



    Competitive Advantage:



    * Structure & Material

    1) We use high quality pure Aluminum Alloy, it is heavier than other supplier tube, our PC cover is fire-proof 94-V0 and imported from Taiwan.

    2) PC cover has frosted, translucent, optical for you choose, the luminousness is ≥ 90%

    3) The PC shell has anti-oxidation processing, not turn to Yellow within 3 years!

    4)Electrolytic capacitor- Rubicon; LED- Epistar chip (Taiwan Brand); MLCC- TDK (Japanese Brand),Yageo (Taiwan Brand); MOS-UTC (Taiwan Brand)/Infineon (Germany Brand)

    * Optics Design

    1) Glare Index <19, No glare for our nice optics design

    2) The lighting effect is very even (just like traditional fluorescent tube

    * Quality Control & Lead time Control

    1) Strict Materials testing & purchasing

    2) Automatically production with SMT & Reflow Soldering machines

    3) Strict test processing: Special Automatically Aging test line, integrating sphere test..) to warranty stable tubes ex-factory.

    4) Product Reject Ratio is <2‰, we guarantee 3 years strictly!

    * Certificate

     CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,



    CE 90cm T5 SMD led tube light, 15W 0.9m T5 led tube lighting, 15W 3014SMD T5 led tube lamp
