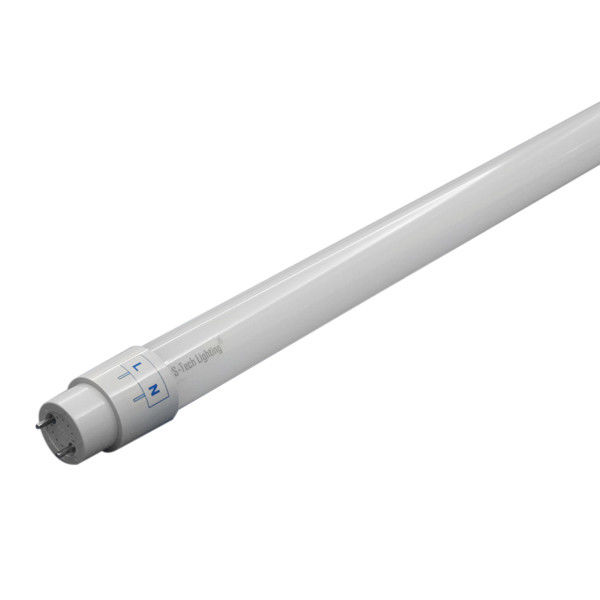

Office Building 0.6m 10W 2ft T8 LED Tube Light With Soft Light

Office Building 0.6m 10W 2ft T8 LED Tube Light With Soft Light

    • Office Building 0.6m 10W 2ft T8 LED Tube Light With Soft Light
    • Office Building 0.6m 10W 2ft T8 LED Tube Light With Soft Light
    • Office Building 0.6m 10W 2ft T8 LED Tube Light With Soft Light
  • Office Building 0.6m 10W 2ft T8 LED Tube Light With Soft Light

    Product Details:

    Place of Origin: Shenzhen City, China
    Brand Name: S-Tech, Lightingtalk
    Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
    Model Number: 108B10-V10

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiation
    Packaging Details: Qty/CTN: 30pcs, Gross Weight: 7.5Kg
    Delivery Time: 3~7 days
    Payment Terms: L/C,D/P,T/T, Western Union, cash , pay pal
    Supply Ability: 100000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description



    Office Building 0.6m 10W 2ft T8 LED Tube Light With Soft Light



    Quick Detail:


              Number: 108B10-V10

    • Item Type: 0.6m LED T8 tube
    • Light Source: Epistar 3014SMD 10*30mil
    • Lamp Body Material: Pure Aluminum Alloy+ PC cover (94-V0)
    • Power: 8W
    • Input Voltage(V): AC 110~240V
    • Light efficiency: 85-100lm/w
    • Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
    • Service: OEM label-print
    • Warranty: 3years



    Description:



    • Model Number: 108B10-V10
    • Item Type: 0.6m LED T8 tube light
    • Light Source: Epistar 3014SMD 10*30mil
    • Lamp Body Material: Pure Aluminum Alloy+ PC cover (fire-proof 94-V0, imported form Taiwan, you can choose frosted, transparent PC, the luminousness is ≥ 90%)
    • Power: 8W
    • Input Voltage: 110~240V AC
    • Lamp Luminous Flux: 600~800Lm
    • Lamp Luminous Efficiency(lm/w): 90
    • CRI (Ra>): 70
    • Color Temperature: Warm White(3000K±300K), Natural White(4000K±400K), Cold White(5700K±570K)
    • Working Temperature: -20℃ - 40℃
    • Working Lifetime: 40000hrs
    • IP Rating: IP33
    • Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
    • Service: OEM label-print
    • Warranty: 3years



    Applications:



    Widely used in the lighting of office, hospital, school, business area, airport, metro station, flyover, signboard, Gymnasium, landmark and so on.



    Specifications:



    Rated Voltage

    100~240VAC / 50~60 Hz

    Wattage

    8W*

    Power Factor

    >0.85

    Lumen

    650~950Lm*

    Efficiency

    >75Lm/w*

    Beam Angle

    ≥180°

    Flux(Lux)@1M

    >150Lux*

    Lifespan (hrs) @25℃

    40,000hrs *

    Ambient Temp. (℃)

    -20℃~40℃

    Storage Temp. (℃)

    -40℃~65℃

    Color Temp.

    3000K±300K, 4000K±400K, 5700K±570K

    CRI

    >70%

    Key Material

    Aluminum Alloy+ PC Cover

    N.W.(g)

    190g*

    Warranty

    3years



    Item

    Wattage

    CCT

    Flux@1m

    Lumen

    Efficiency

    CRI

    108B10-R10

    10W

    3000K±300K

    165lux

    650-750lm

    >65lm/w

    >80%

    108B10-T10

    10W

    4000K±400K

    200lux

    780-900lm

    >78lm/w

    >70%

    108B10-W10

    10W

    5700K±570K

    210lux

    820-950lm

    >82lm/w

    >70%





    Size:



    Length A

    Length  B

    Length  C

    Length  D

    Dia  E

    Dia  F

    594mm

    587mm

    580mm

    45mm

    Ø28.70

    Ø26.00

    Office Building 0.6m 10W 2ft T8 LED Tube Light With Soft Light



    Flux Data:



               Distance

    Item

    1m

    2m

    3m

    108B10-R10

    165 lux

    39 lux

    20 lux

    108B10-T10

    200 lux

    47 lux

    24 lux

    108B10-W10

    210 lux

    47 lux

    23 lux



    Certificate Applicable:



    CE Applicable standards: EN55015:2006+A12007+A2:2009

                                                    EN61547:2009

                                                    EN61000-3-2:2006+A1:2009+A2:2009

                                                    EN61000-3-3:2008

    Office Building 0.6m 10W 2ft T8 LED Tube Light With Soft Light

    Office Building 0.6m 10W 2ft T8 LED Tube Light With Soft Light

    Packing:



    Qty/CTN:  30pcs

    Gross Weight:  7.5Kg

    Size of Carton:

    CTN A: 618×32×32mm

    CTN B: 630×210×180mm

    Office Building 0.6m 10W 2ft T8 LED Tube Light With Soft Light



    Competitive Advantage:



    * Structure & Material

    1) We use high quality pure Aluminum Alloy, it is heavier than other supplier tube, our PC cover is fire-proof 94-V0 and imported from Taiwan.

    2) PC cover has frosted, translucent, optical for you choose, the luminousness is ≥ 90%

    3) The PC shell has anti-oxidation processing, not turn to Yellow within 3 years!

    4)Electrolytic capacitor- Rubicon; LED- Epistar chip (Taiwan Brand); MLCC- TDK (Japanese Brand),Yageo (Taiwan Brand); MOS-UTC (Taiwan Brand)/Infineon (Germany Brand)

    * Optics Design

    1) Glare Index <19, No glare for our nice optics design

    2) The lighting effect is very even (just like traditional fluorescent tube

    * Quality Control & Lead time Control

    1) Strict Materials testing & purchasing

    2) Automatically production with SMT & Reflow Soldering machines

    3) Strict test processing: Special Automatically Aging test line, integrating sphere test..) to warranty stable tubes ex-factory.

    4) Product Reject Ratio is <2‰, we guarantee 3 years strictly!



    * Certificate

     CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,



    CE 60cm T8 SMD led tube light, 10W 0.6m T8 led tube lighting, 8W 3014SMD T8 led tube lamp
