| Place of Origin: | CHINA |
| Brand Name: | DUKE |
| Certification: | CE, EMC, LVD, RoHS |
| Model Number: | DK-FPN-0606-36W |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standards Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, Western Union, PayPal |
| Lamp Power: | 36W | Actual Size:: | 595*595mm |
|---|---|---|---|
| Dimmable: | 0-10V | RGB Color: | Optional |
| IP Rating: | IP42 | Color: | 2700-6000K |
| High Light: | led ceiling panels,led panel lamp |
||

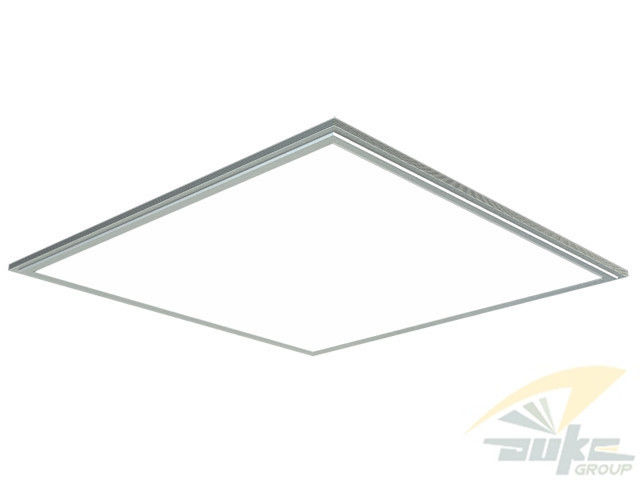

0 - 10V Dimmable 36 Watt LED Ceiling Panel / LED Surface Panel Light 100% Uniformity Anti Glare
What are the advantages of 0-10V Dimmable LED Panel Light?
• Superior Aluminum Alloy materials. Stylish everlasting color aluminum frame with advanced anodized and oxidation treatment. Advanced designing makes the ceiling lighting more elegant.
• Different sizes of LED light panel for your options. Diversity in shape (square, round)
• Easy to install. Ideal to be built into system ceilings, offices, and can be used as a hanging fixture.
• LED flat ceiling panel light direct replace T8 and T5 fixtures.
• The led panel light is available 0-10V dimmable.
• Innovated structure heating design.
• Constant current driver with a power factor of 0.95;
• Lock cable DC plug for 0-10V dimmable led flat panel light.
|
Item No.: |
DK-FPN-0606 |
|
Lamp Power |
36W |
|
Lumen |
3000lm |
|
LED Qty |
192pcs SMD2835 |
|
CRI |
>80 |
|
Beam Angle |
120 ° |
|
Luminous Efficiency |
85 lm/w |
|
Input Voltage |
AC185~265V 50/60Hz |
|
LED panel light Size |
600*600*12mm |
|
Dimming Way |
Remote/Wall controller |
|
Material |
Aluminium +PMMA |
|
Power Factor |
>0.95 |
|
Glaring Rate |
UGR < 19 |
|
Installation Type |
Recessed (or pendant mounted) |
|
Warranty |
3 Years |
The Dimming Ways of 36W 600x600 led panel light:
Installation Ways
