| Place of Origin: | China |
| Brand Name: | MF |
| Certification: | CE, RoHS |
| Model Number: | MF-145F024 |
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 73*46*20cm/10pcs, G.W: 12.8KG |
| Delivery Time: | Depends on orders |
| Payment Terms: | T/T, Western Union, Paypal, L/C |
| Supply Ability: | 10,000pcs/Month |
| Power: | 24W | Luminous Flux: | 2650lm |
|---|---|---|---|
| PF: | >0.92 | LED Light Source: | SAMSUNG |
| CRI (Ra): | >83 | CCT: | 3000K/4000K |
| LED Driver: | TRIDONIC | Input: | 220-240Vac, 50/60Hz |
| Lamp Luminous Efficiency(lm/w: | 100LM/W | Warranty: | 3 / 5 Years Customized |

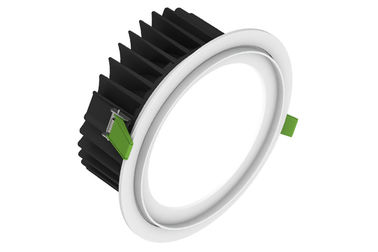

CE 24 Watt 2650lm Led Ceiling Lighting With Frosted Cover / Tridonic Driver
Quick Detail:
Description:
MingFeng, as a prominent China LED down light manufacotry, devotes himself to providing high quality LED ceiling light ingfor the replacement of traditional down lights in residential, museum, office and commercial applications.
MingFeng F Series LED CEILING LIGHTING is the most comprehensive architectural LED downlights in the market to replace CFL downlight, Cut out are 105mm, 145mm, 175mm, power are 14W/24W/36W, Luminous Flux efficiency up to 100lm/w,Also CRI>90 is available, the whole series provide a collection of intelligent led lighting solutions,
A reliable heat management and different optical systems based on the size of the lamps help exploit at the best characteristics of every luminaires, F Series LED CEILING LIGHTING maximize efficacy with minimum maintenance,making surroundings more dynamic. Advanced optic design precisely control the beam angle to achieve an ideal lighting effect. Anti-glare strcuture brings pleasant and comfortable visual experience.
Specifications:
|
Model No |
MF-145F024 |
|
Input voltage |
200-240Vac/220Vac, 50hz/60hz |
|
Power(watt) |
24W |
|
Dimension |
Product Size: Dia160*76mm Cutting hole size: 145mm |
|
Color temperature |
3000K /4000K |
|
LED Chip |
SAMSUNG |
|
PF |
>0.92 |
|
Housing Color |
Matt White(RAL9003) |
|
Luminous Flux (lm) |
2650LM |
|
CRI(Ra) |
≥83 |
|
Lifespan |
≥40000hrs |
|
Beam Angle |
950 |
|
Material |
Die-casting Aluminum |
|
Operating Temperature |
-200C ~400C |
|
Dimmable |
Y |
|
IP |
44 |
|
Protection Against Shock |
IK01 |
|
Dimension Single Package |
210x140x175mm, |
|
Weight Single Package |
1.35KG |
|
Certificate |
CE/RoHS |
|
Warranty Period |
3 /5 years |
Competitive Advantage:
19W/1780LM COB LED DOWN LIGHT SHOW:
Light Distribution curve of 24W LED CEILING LIGHTING :
Applications Of LED CEILING LIGHTING:
Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc.
