Home ProductsLED Flat Panel Ceiling Lights

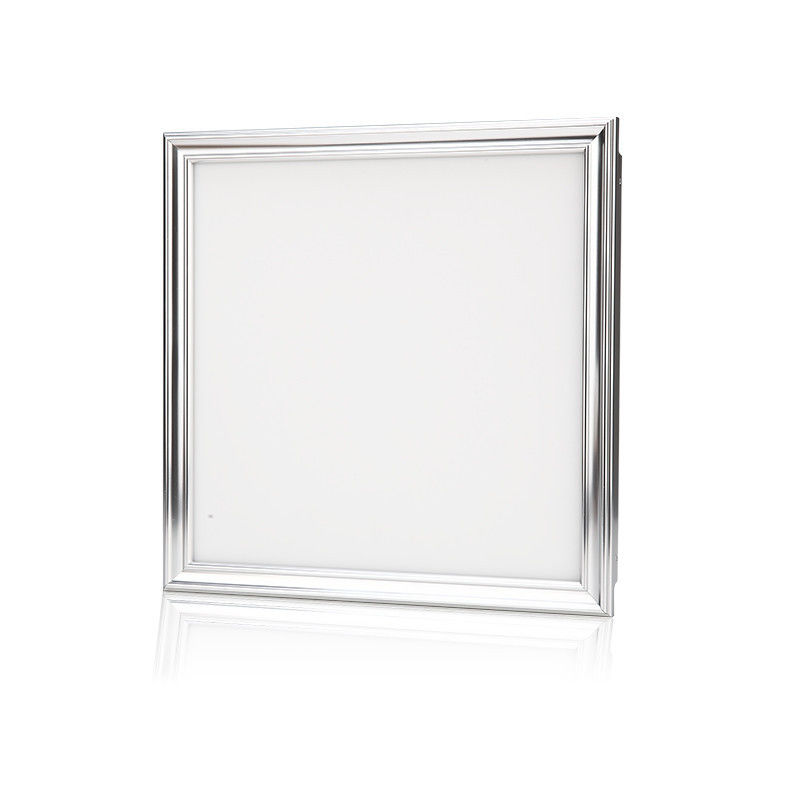

Square CRI 80​1000lm 50Hz / 60Hz 30x30 LED Flat Panel Ceiling Lights Natural White

Square CRI 80​1000lm 50Hz / 60Hz 30x30 LED Flat Panel Ceiling Lights Natural White

  • Square CRI 80​1000lm 50Hz / 60Hz 30x30 LED Flat Panel Ceiling Lights Natural White
  • Square CRI 80​1000lm 50Hz / 60Hz 30x30 LED Flat Panel Ceiling Lights Natural White
Square CRI 80​1000lm 50Hz / 60Hz 30x30 LED Flat Panel Ceiling Lights Natural White
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Xintianwell
Certification: CE/PSE/RoHS
Model Number: XT-PL-12W
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: 1pcs 340*340*194mm
Delivery Time: 7-14 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Power: 12 Watts Luminous Flux: 1000lm ±5%
Chip Brand: Epistar Color Temperature: 2700-7000K
Driver: Ledfriend Driver Input Voltage: AC100-277V
CRI: >82 Power Factor: >0.95
Size: 300*300*13mm / 1' By 1' Weight: 1.5kg
Material: Aluminum Alloy
High Light:

led flat panel ceiling lights

,

Square LED Panel Light



30*3012W Home SMD LED Flat Panel Lights AC85-265V Ceiling Square Light CRI 80​





Specifications:

Item Type

XT-PL

Power

12W

Replacement

25-45W

Input Voltage

AC100-277V

Frequency

50/60Hz

Size

300*300*13mm

Chip Brand

Epistar 4014

Luminous Flux

1000lm ±5%

Light Efficiency

90 lm/w

Color Temperature

2700-6500K

Color Rendering Index

>82Ra

Beam Angle

180°

Working Temperature

-20℃~45℃

Working Lifetime

40,000 hours

Material of Cover

Light guide plate (PGL)

Cover Type

Milky

Material of Chassis

Aluminum Alloy

Driver

Ledfriend Driver







Description:



1.Use high light LED as lighting resources. led ceiling panel light energy saving up to 60-80%. High brightness. Even lighting output.


2.Input voltage range: AC85-265V.


3.Life time: More than 10 years(depends on 8-24 hours per day usage).


4. Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.


5. New high efficiency constant current driver increases the working life of LED. and also effectively reduce the brightness decline.


6.No UV, IR, radiation and no flickering. People can feel peaceful and comfortable under the light.

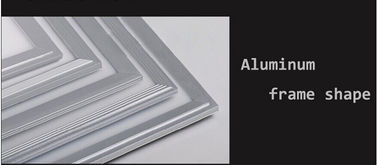

7.Use high thermal conductivity aluminum frame, high heat dissipation and low surface temperature.


8.CE, ROHS, PSE Certification, no electromagnetic interference, security, reliability, green and environment protection.





Competitive Advantage:



  • 1, Revolutionary ultra-thin flat lighting.
  •
  • 2, Absolutely thin, Light body thickness of only 20MM.
  •
  • 3, New concepts design from backlight technology.
  •
  • 4, Professional technology for lighting of diffusion.
  •
  • 5, New design for diversified environment application.
  •
  • 6, Energy-saving, High-efficiency energy-saving,Non-UV lighting source.
  •
  • 7, Durable usage, Long service life of 50,000 hours.
  •
  • 8, Instant start, no humming





Applications:



mounted ceiling lights



1. Factories, Hospital Lighting

2. Warehouse, Supermarket Lighting

3. Schools, Offices, Residential Area Lighting

4. Hotels, Conference, Meeting rooms Lighting









Square CRI 80​1000lm 50Hz / 60Hz 30x30 LED Flat Panel Ceiling Lights Natural White 0





Applications:



Square CRI 80​1000lm 50Hz / 60Hz 30x30 LED Flat Panel Ceiling Lights Natural White 1Square CRI 80​1000lm 50Hz / 60Hz 30x30 LED Flat Panel Ceiling Lights Natural White 2







FAQ:


1.How do you ensure the products in high quality ?
From material purchasing to production finishing,we have a full set of strict inspection process to ensure
exceptional quality problem, including IQC,QC,QA and OQC.Moreover,before production,our technology Dept. colleagues will assess the production process to ensure each process in the right way.

2.What is your warranty period and after-sales service?
Our warranty period will be 2 years according to the product series,please rest assure that we are reliable and responsible company.Please send us details and pictures when quality problems occured,the complaint will be responsed within 12 hours.

3. Can you customize and design products for us?
Yes. We have a professional R&D team including optics engineers who are proficient in DIALux design, structural engineers who are proficient in CAD, PROE design and heat dissipation treatment, and electronic engineers who are proficient in PCB design and electrical design of drivers.

4.May I use my own brand and design?
Yes,OEM / ODM is welcomed and available,our experienced R&D team can provide professional service and technology support.



Warning Note:



1. Please make sure the working voltage is correct. Incorrect voltage may lead to damage of the panel light
2. Do not use this panel light in the outdoor environment, emergency exit facilities, or emergency lighting facilities.
3. To avoid electric shock, after fitting the panel light and switch on the power, please do not touch the metal area of the screw base.
4. Before open the package, please check for any damage on the package caused during transportation. Please inform the supplier for
replacement if any damage on the package is found.
5. For product safety, please follow the instruction manual.
