Place of Origin: | China |
Brand Name: | Lead |
Certification: | CE,RoHS,FCC,SAA,UL&cUL |
Model Number: | LD-RL-150W-CL2 |
Chip: | Epistar/Bridgelux chip |
---|---|
Driver: | Meanwell driver |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Please contact me. |
Packaging Details: | 1pcs/carton |
Delivery Time: | 10-25days |
Payment Terms: | T/T,West Union,Paypal |
Supply Ability: | 100,000pcs/month |

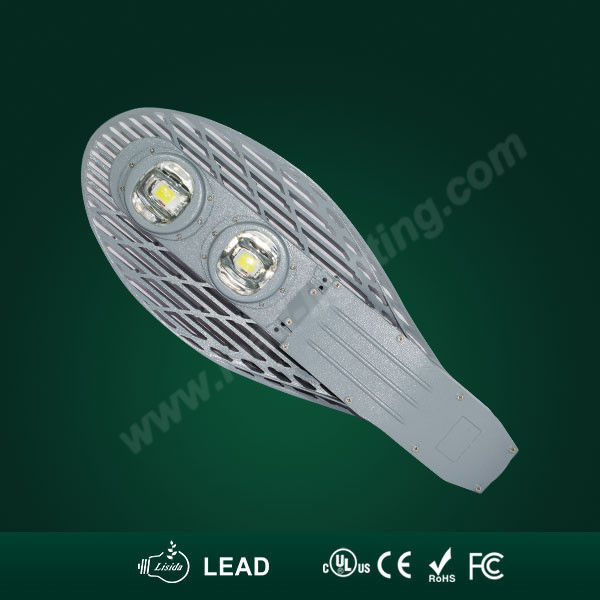

Environmental Outdoor LED Street light 150W with good quality
Outdoor LED Street light 150W parameters
Power | 150W | LED type | High power LED |
Material | Aluminum | Lumen | 14400lm |
Color index (CRI) | ≥80 Ra | Color Temperature(CCT) | 2800-7500K |
Input Voltage | 85~265V AC | Beam angle | 120° |
IP grade | IP65 | Humidity | 5~95% R.H. |
Light failure | <3% within 3000 Hrs | Working temperature | -20~55℃ |
Frequency (Hz) | 47 to 63 Hz | Storage temperature | -40~85℃ |
Power factor | ≥0.95 | Life span | 50,000 Hrs |
Warranty | 3 years | Fixture color | Silver Gray |
Power Efficiency | >80% | Working Lifetime | 50,000 Hrs 11-12hrs/day for 12 years |
Warranty | 3 years |
Outdoor LED Street light 150W series CL2
Model | Power | Lumen | Dimension | Color | Warranty |
LD-RL-60W-CL2 | 1*60w | 5400 | 530*115*250 | W/WW | 3years |
LD-RL-80W-CL2 | 1*80w | 7200 | 530*115*250 | W/WW | 3years |
LD-RL-100W-CL2 | 2*50w | 9000 | 640*245*115 | W/WW | 3years |
LD-RL-120W-CL2 | 2*60w | 10800 | 640*245*115 | W/WW | 3years |
LD-RL-120W-CL2 | 3*40w | 10800 | 800*310*90 | W/WW | 3years |
LD-RL-150W-CL2 | 3*50w | 14400 | 800*310*90 | W/WW |
3years |
May you like,click to see
Outdoor LED Street light 150W Application
Outdoor LED Street light 150W certifications
Factory information
Shenzhen Lead Optoelectronics Technology Co., Ltd.(Chinese name is Li Sida lighting) has been known as China's professional leading trusted
trade brand with cost-effective high-power outdoor LED lighting products and competitive lighting solutions. Lead lighting has successively
become a quality brand supplier for SGS certification, ISO 9001: 2008 certified company, governing unit of Professional Committee of
China Illuminating Engineering Society of electric light,vice president of the unit of Shenzhen LED Industry Association,as well as the member
of Chinese LED lighting Agricultural Society.
Lead Lighting has been specializing in manufacturing high-quality high-power LED outdoor lighting , development and application of LED
lighting solutions, covering competitive diversified LED lighting product system such as LED streetlighting fixture, LED commercial lighting,
including LED floodlights, LED high bay light, LED tunnel lights, LED street lights to meet the diversified demand on optical applications
(including OEM / ODM) for global customer.
"Quality first, customer first, integrity management,the pursuit of innovation,"is the philosophy Lead Lighting has been adhering to.Facing the
increasingly serious global warming, Lead lighting spares no effort to research and innovation of more energy saving LED lighting fixtures,
meanwhile constantly enhancing the management level and improve the product structure and services, "the world's most trusted LED lighting
leading brand for lighting user " is the goal lead lighting insist in the pursuit of.
Maintain&Repairing Instructions
*The power must be cut off before maintaining;
*Cleaning the glass of the product in regular time to ensure the good efficiency;
*Cleaning the housing and radiator in regular time to ensure the good performance of heat sinking;
*Forbid to use water or other corrosive liquid to clean, must use dry cloth;
*Can use the screwdriver open the cover and take out of the driver to change a new;
*Connection of the wires of AC driver please follows below: Brown to connect "L", Blue to connect “N", Yellow to connect “L”. The red or white wires of DC connect the positive pole of driver, and the black wire connects the negative pole of driver. Don't mix the positive pole and negative pole.
Note
Any wire damage should be replaced by qualified professional person to avoid dangerous occurs.
Please cut down the input power supply once the lamp works abnormal.
Please take measures of lightning protection, and ensure the Input voltage which is stable.
Please put the lamp under the dry, ventilated and clean circumstance, and clean and maintain regularly.
Don’t disassemble by yourself to avoid the electric shock as there is high voltage inside the lamp.
FAQ
1. Q: What kind of warranty do you provide?
(1) 3 years
(2) If any damage which is not caused by misuse or vandalism happens, please return the defective items to us within the warranty period, we will repair or replace them according to the damage circumstance.
2. Q: What payment terms do you accept?
A: We accept T/T (Bank Wire Transfer), L/C, Paypal, Western Union and etc.
3. Q: How about the lead time?
A: For samples, we will deliver within 7-15 working days after we got the payment. For led flood light bulk orders it takes about 15-25 work days normally.
