| Place of Origin: | Zhejiang, China |
| Brand Name: | KF |
| Certification: | CE. Rohs, UL, CB, SAA |
| Model Number: | L306 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD30-USD125 |
| Packaging Details: | Standard carton packing |
| Delivery Time: | 3 to 25 days after payment |
| Payment Terms: | T/T, LC, CASH, WESTUNION, PAYPOL |
| Supply Ability: | 20,000PCS monthly |
| High Light: | high power led street light,led road light |
||
|---|---|---|---|

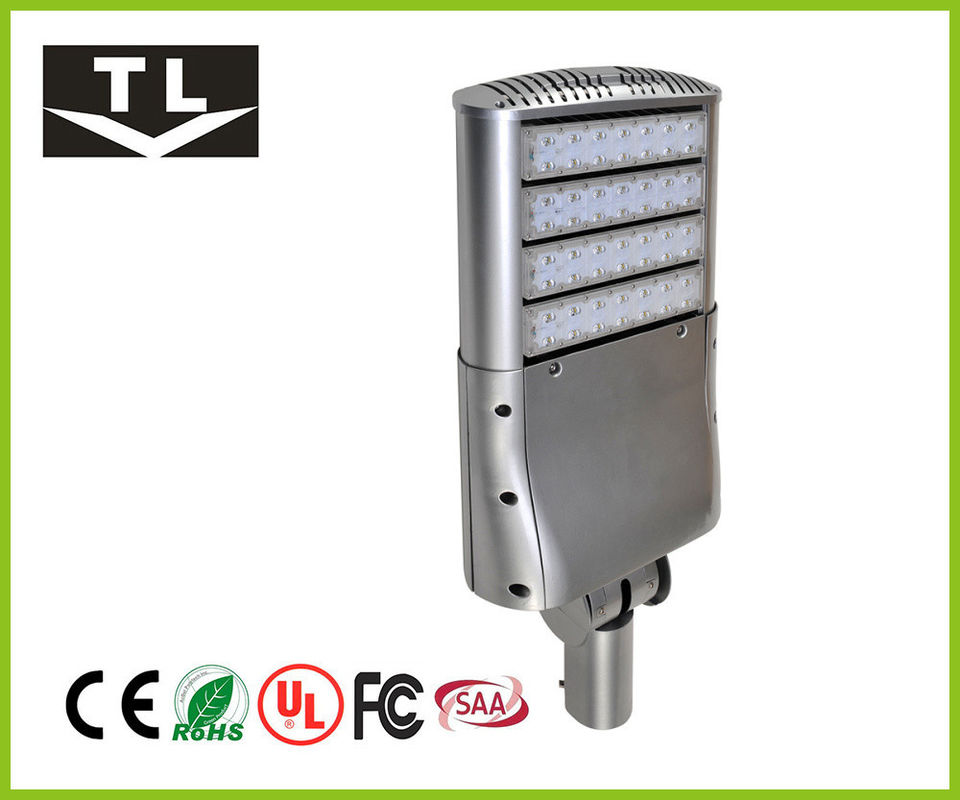

Outdoor IP66 Led Street Lighting Waterproof for High Express
Quick Detail:
CE, approved
Quick start
Elegant shape design
Die-casting aluminum housing
Long lifespan+50000hrs, 5 years warranty
No mercury, environmental protection
Dimmable and photocell
Description:
Quick start
No flicker,no glare
5 years warranty
Color temperature: 4500k-5500K
Excellent lumen output
Water proof
wide working temperature: -25~55 Degree Centigrade
Competitive Advantage:
No flicker, no glare
CE Rohs DLC IP66 UL approved
Comply with EMC standard
Good luminous efficiency
Applications:
Street, high express, factory roadway, parking lots
Specifications:
| Declaured Wattage (W) | Real Wattage (W) | LED module QTY | total Luminous Flux(>) | HPS/HID Equibalent replacement | LED pieces |
| 80 | 75 | 2 bars | 7200 | +150W | 32 |
| 120 | 110 | 3 bars | 10800 | 250W | 48 |
| 150 | 148 | 4 bars | 13500 | +250W | 64 |
| 180 | 185 | 5 bars | 16200 | 400W | 80 |
| 220 | 220 | 6 bars | 19800 | +400W | 96 |
| 250 | 260 | 7 bars | 22500 | 600W | 112 |
| 300 | 300 | 8 bars | 27000 | +600W | 128 |
| CRI | 70-80 | ||||
| Kelvin Color | 4500k - 5500k | ||||
| Input Votage | 120 - 277v | ||||
| Power Factor | > 0.9 | ||||
| Driver Output | 0.7A | ||||
| Driver Power | 200w Max. | ||||
| Operation Temperature-Low | -25℃ | ||||
| Operation Temperature-High | 55℃ | ||||
| Typical operating life time | +50000hrs | ||||
| Typical energy savings | up to 75% | ||||
| LED Brand | CREE XPG series / Philips Lumiled | ||||
| Power supply Brand | Philips / Inventronics | ||||
| Weather protection class rating (IP) | IP66 | ||||
| Warranty | 5years | ||||
| Dimmable | YES | ||||
| Photocell | NO. | ||||
| Wireless control metering | YES | ||||
| Type mount | Fixed angle | ||||
| Available housing color(s) | White , Gray , Bronze , Green , Black | ||||
