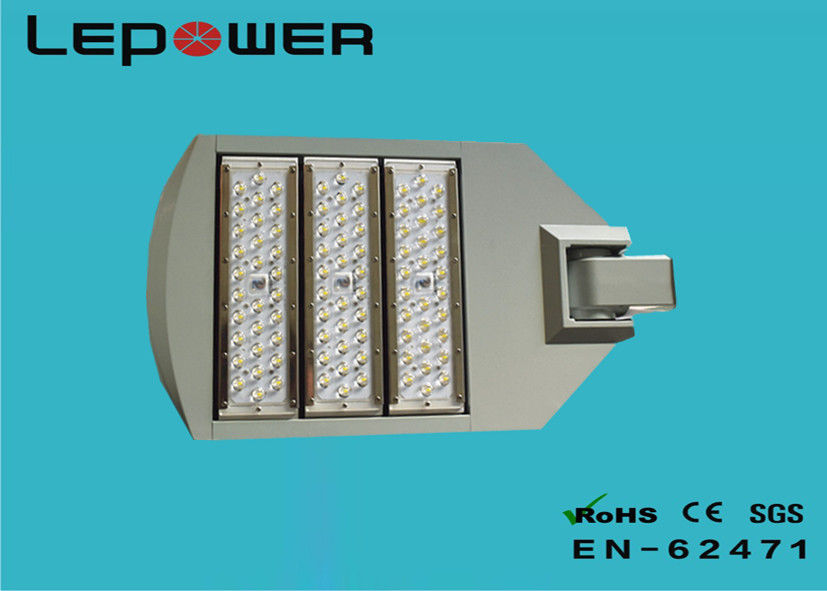

150w Aluminum Outdoor LED Street Lights 120LM/W Ip66 with Meanwell

Product Details:

Place of Origin:	China
Brand Name:	Shenzhen lepower
Certification:	CE RoHS
Model Number:	150w led street light

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US $145/PC
Packaging Details:	In carton
Delivery Time:	10 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10000pcs every month

Contact Now

Detailed Product Description

Type:	Outdoor 150w Led Street Light 120lm/w	Lamp Body Material:	Aluminum+PC
Input Voltage:	AC95~305V	Color Temperature:	2800-3200k/4000-4500k/5000~5500k/6000-6500k
IP Rate:	IP67	Driver:	Meanwell
Luminous Efficience:	110-120lm/w	Warranty:	5 Years
Size:	630388168mm
High Light:	outdoor led lights , led street lamps

150w Aluminum Outdoor LED Street Lights 120LM/W Ip66 with Meanwell

1,Features:

Adoption Lepower exclusive ZAG Lens with light transmittance up to 98%
Perfect Light Distribution Solution:Adoption of integrated peanut shell optic lens, meet the photometric
requirements of road lighting design standards,enhance the brightness and illumination uniformity.
Driven by high efficiency constant current and 60% energy-saving than traditional lamps; over –current protection, over-voltage protection, lightning protection,
high temperature protection, fully ensures the long life span and high stability.
Durable,long lifetime,and last up to 50000 hours; no need to replace frequently and less daily maintenance.
Green product,no UV or IR radiation, no mercury pollution
The lamp is waterproof and dustproof, with protecting rate: IP66
Fast response,no flicker; wide operating voltage rang

2,Technical parameter

◎Specifications

Part No.	Module Qty.	Dimension (L32898)	Lamp Weight
LY-SL11	1	39932898mm	5.3kg
LY-SL12	2	48432898mm	6.7kg
LY-SL13	3	56932898mm	7.6kg
LY-SL14	4	65432898mm	8.6kg
LY-SL15	5	73932898mm	9.6kg
LY-SL16	6	82432898mm	11.2kg

◎ Electrical Specifications

Part No.	Module Qty.	Rated Power	Input Voltage/ Frequency	Input Current	Power Factor	Driver Efficiency
LY-SL11	1	50W	AC90~305V 50/60Hz	0.64A/115VAC	>0.98/115VAC >0.95/230VAC	>93%
LY-SL12	2	60W		0.64A/115VAC
		90W		1.2A/115VAC
		100W		1.2A/115VAC
LY-SL13	3	120W		1.4A/115VAC
		135W		1.7A/115VAC
		150W		1.7A/115VAC
LY-SL14	4	180W		2.1A/115VAC
LY-SL14	4	200W		4A/115VAC
LY-SL15	5	250W		4A/115VAC
LY-SL16	6	300W		3.5A/115VAC

◎ Photometric Specifications

Part No.	Module Qty.	Rated Power	Lm.	Luminaire Efficacy	CRI(Ra)	CCT	Angle
LY-SL11	1	50W	6500	130lm/W
LY-SL12	2	60W	7800	130lm/W	>50 >60 >70	2800-3000K 3000-3500K 4000-4500K 5000-5500K 6000-6500K	150°x70°
		90W	11580	128lm/W
		100W	12425	124lm/W
LY-SL13	3	120W	15834	132lm/W
		135W	17368	129lm/W
		150W	18638	124lm/W
LY-SL14	4	180W	26316	128lm/W
LY-SL14	4	200W	28240	124lm/W
LY-SL15	5	250W	31000	124lm/W
LY-SL16	6	300W	36000	120lm/W

◎ Mechanical Specifications

Part No.	Module Qty.	Package SPC.	G.W.	IP Rating	Lifetime	Lamp Body Material
LY-SL11	1	460388168mm	6.5kg	IP66	50000hs	Aluminum+PC
LY-SL12	2	545388168mm	7.8kg
LY-SL13	3	630388168mm	8.8kg
LY-SL14	4	714388168mm	9.8kg
LY-SL15	5	800388168mm	11.2kg
LY-SL16	6	885388168mm	13.0kg
Operating Environment		-40℃~50℃,20%~90% H.R.		Storage Environment	-40℃~85℃10%~90% H.R.

3,Our Services

1. For all your inquires about us or our products, we will reply you in detail within 24 hours.

2. We have engineers who has the experience of 20 designs for big lighting engineering projects to help

you solve all the problems of technical.

3. We have sales who have engage in LED about 6years to help you custom-made the sales solution.

4. We have a good translation, enthusiastic sales and service who can speak fluently in English language
5. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.

6. We have very experienced R&D engineers and we have strong ability to do ODM projects.

7. We are led package ,led lens factory and led lamp manufacturer, so we are the best reliable led lighting partner !

6,Application areas:

This Product mainly applies to highway, urban trunk road and secondary trunk road, stadium,

sidewalk, residential district, industrial district, square , park ,school, villa, courtyard and other

places of street lighting.

7,Cautions

Warranty:Five years.
Please handle the product with care when open the package.
If the new LED down light is found damaged, please keep the original package and contact us.
Please do not try to use the damaged down light.
In order to ensure the product work properly, please use the power supply within indicating voltage range.
Please follow the installation instructions to install the product. Please do not touch the light while it is working.
Whatever the case, lamps can not be covered by heat resistant gasket or similar materials.
Please turn off the power supply for the base to avoid electric shock while installing and uninstalling the product.
Do not look directly to LED light source for a long time, because the high-intensity light source may cause harm to eyes.
