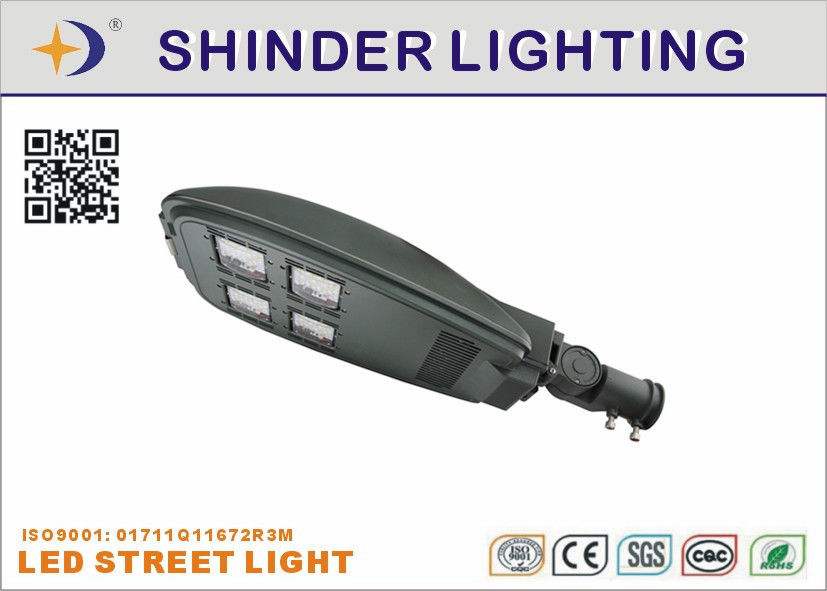

Morden High Lumen 150 Watt Outdoor LED Street Lights Retrofit Pure White 4100K

Morden High Lumen 150 Watt Outdoor LED Street Lights Retrofit Pure White 4100K

    • Morden High Lumen 150 Watt Outdoor LED Street Lights Retrofit Pure White 4100K
    • Morden High Lumen 150 Watt Outdoor LED Street Lights Retrofit Pure White 4100K
  • Morden High Lumen 150 Watt Outdoor LED Street Lights Retrofit Pure White 4100K

    Product Details:

    Place of Origin: China
    Brand Name: SHINDER
    Certification: CE ROHS
    Model Number: SDZD804-150

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: 95.5*43.0*22.0 cm / 1 piece / 10.50 kg / CTN
    Delivery Time: 15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1000 pcs per month
    Contact Now
    Detailed Product Description
    Type: 150w Outdoor Led Street Light Light Source: LED
    LED Light Source: Lumileds Luxeon Rebel ES Voltage(v): 85-265
    Lamp Body Material: Aluminum CCT(K): 4100
    Luminous Flux: 12750 Optional: 0-90 Degree
    Height: 10m,11m G.W/N.W: 11.00/10.50kg

    morden led lights 150w outdoor led street light pure white 3 years warranty ip65 waterproof led street lighting

    Specifications:



    tem Name

    803-150

    Lumen

    12750Lm

    Power

    150W

    LED Type

      SMD

    Voltage

    AC85~265V

    LED Quantity

    LUXEON Rebel ES

    SIZE

    95.5*43.0*22.0cm/PC/CTN

    PF

    0.73-0.92

    Material

    Alumimun Die Casting

    G.W/N.W

      10.5/10.00KG

    Operational

    0-90 Degree

    The IP rating

      IP65

    Surface Color

    Grey/Black

    Operation Temperature

      -20℃-+50℃

    Color Temperature

    4100K

    Lamp working temperature

       ≤60℃

    Life Span

    50000 Hours

    Uniformity

     0.45

    Warranty

    3 YEARS

    Power supply circuit

       Constant Current IC Driver

    Certificates

    CE RoHS





    SHINDER led street light uses high power led chips(at present it is mainly Lumileds Luxeon Rebel ES series),which watt is 1.96W @700mA for each chip, then packed different pieces of lumileds led chips on a special heat sink to get different wattage.



    then covering professional LENs to control the light from LEDs,anther polycarbonate sealing shield covers on the LENs to protect all of LEDs which complete LED module can be lighted underwater,IP65 is OK!



    Morden High Lumen 150 Watt Outdoor LED Street Lights Retrofit Pure White 4100K

    Morden High Lumen 150 Watt Outdoor LED Street Lights Retrofit Pure White 4100K



    1. Led Power Supply: Constant current Mean well series power supply will protect LED chip in correct current and voltage. It provide power factor >0.9 and power efficient > 90% characteristic to ensure power saving. Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.

    2. Stainless steel parts: Endurancing the corrosion of air, water, chemical acid, alkaline,salt and other materials, can be used in all kinds of harsh conditions for long term.

    3. Lamp Housing: High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process.

    4. Led chip: LUXEON® Rebel ES gives you the flexibility you need for designing luminaires and lamps.Tested and binned at 700 mA, confidently design LUXEON Rebel ES into high lumen applications or create more energy efficient devices using the same designers count on LUXEON Rebel ES for quality, realiablity and in-device performance.

    5. Heat sink: Sufficient and thickness liner radiation fin are average distributed on the back of front head by die-casting technology with excellent thermal conductivity.

    6. IP65 waterproof structure:Every gap, screw and interface used the rubber ring with silica gel for waterproof purpose.

    7. Lifespan: led street light has 50000 hours lifespan for using.

    8. Warranty:we offers 3-years product warranty for all products. If you need 5-years warranty for this wattage product, please contact us directly.
     Morden High Lumen 150 Watt Outdoor LED Street Lights Retrofit Pure White 4100K


    Applications:
    LED Street Lights are widely used for Arterial road,Branch road,Factories,schools,gardens,city squares and so on.


    Competitive Advantage:

    1. Use Philips LUXEON Rebel ES;

    2. Long life properties
    3. Contains no mercury
    4. Easy to be installed.
    5. High uniformity.
    6. Square light stripe
    7. With IES file
    8. High efficiency.
    9. 50,000-hour rated average life;


    Our service :

    Best price with good-quality

    Your inquiry will be replied within 24 hours.

    Well-trained & experienced sales can reply your inquiries in English.

    ON line with 24 hours

    Your business relationship with us will be confidential to any third party.

    Good after-sale service

    Company information:

    SHINDER(CHANGZHOU)LIGHTING APPLIANCES CO.LTD was established in 1994 Jiangsu , Changzhou, China. We are a professional manufacturer and exporter , specializing in Outdoor industrial lighting and light source .

    With more than ten years experience in the field of lighting appliances , we can get more information of lighting products , and control well on that detail of products for clients, which is based on market discipline around the world. Thus we can make great efforts to contribute share for cost and time saving.
