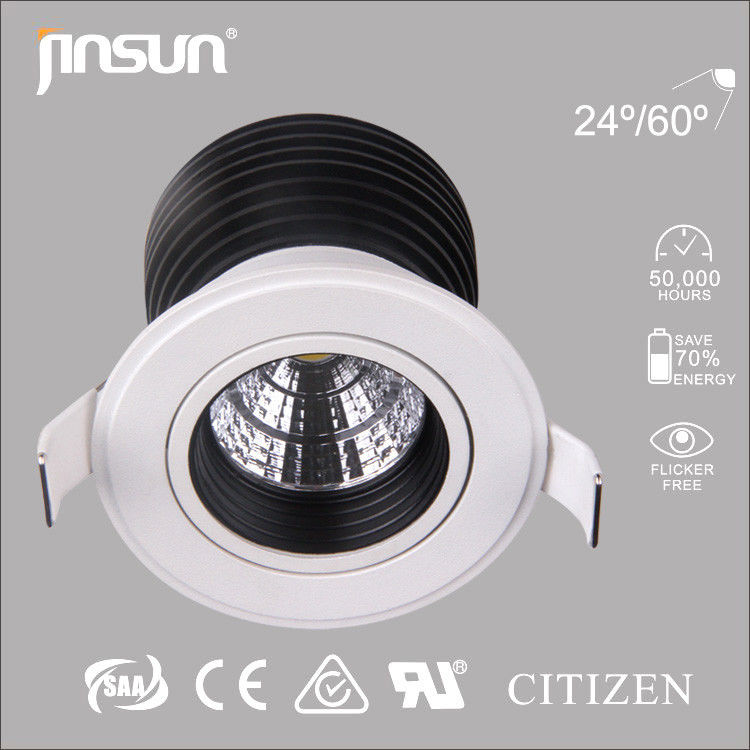

led recessed downlight 220-240v 7W dimmable led ceiling light in China

led recessed downlight 220-240v 7W dimmable led ceiling light in China

  • led recessed downlight 220-240v 7W dimmable led ceiling light in China
  • led recessed downlight 220-240v 7W dimmable led ceiling light in China
led recessed downlight 220-240v 7W dimmable led ceiling light in China
Product Details:
Place of Origin: Zhongshan
Brand Name: Jinsun
Certification: SAA,CE,RoHS
Model Number: D1002A-CT-7W
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Standard packing or as customer's requirement
Delivery Time: 10-20days
Payment Terms: T/T(30% in advance), Western Union
Supply Ability: 10,000pcs/month
Contact Now
Detailed Product Description
High Light:

led recessed downlight

,

led recessed downlight 7W

,

led ceiling light 7W

led recessed downlight 220-240v 7W dimmable led ceiling light in China



Parameters:


Model

JS-D1002A-CT

Input Power:

7w

Input Volt:

100-240V AC

PF

>0.95

Luminous Flux:

550lm

CRI:

80 Ra

LED light source:

Citizen

Housing

Aluminum

Lifetime:

50,000 Hours

Warranty :

3 Years

Dimmable or Non-dimmable for option



Wattage

Cutout size/mm

Beam Angle

Height/mm

Surface size/mm

4W

55(- 0/+3)

24

55

62

7W

65(- 0/+3)

24/60

62

78

10W

65(- 0/+3)

24/60

74

78

7W

75(- 0/+3)

15/24/60

62

85

10W

75(- 0/+3)

15/24/60

75

85

15W

90(- 0/+3)

20/40/60

74

108

20W

90(- 0/+3)

20/40/60

86

108

20W

100-105(- 0/+3)

24/36/60

99

118

25W

100-105(- 0/+3)

24/36/60

112

118

30W

120-125(- 0/+3)

15/24/40

109

138

35W

120-125(- 0/+3)

15/24/40

120

138

40W

160(- 0/+3)

15/24/40

116

180

50W

160(- 0/+3)

15/24/40

128

180



Remark:

1. Citizen imported from Japan LED:100LM-110LM/W     Ra:>80     PF>0.90

2. Model number letter N means non-adjustable; A means 180 degree-adjustable; D means 360 degree-adjustable.

3. The above products' IP are all IP40, can make IP54, price need further contact




Light Components:






Product Features:



1. Exquisite craft and appearance, simple structure and easy installation, safe and solid lighting fixture;



2. Precise optical design with unique process makes light more uniform and its efficiency reach 85%;



3. Particular structure heat sink which made of grade 6063 aluminum, imported COB lighting source , enable average lifespan of the lamp reach 50000 hours;



4. Superior Aluminum housing with oxidized or painting finished;



5. Lighting fixture is available to swivel in 30 degrees;



6. Healthy and eco-friendly lighting, No IR or UR hazardous.





Light Structure:


 1.Imported Citizen COB used CLL030-1205/1206, Nichia chip and Polycrystalline structure, has the features of a.High luminous efficiency b.Fast heat dissipation c. Low light decay d. Long Life span e.Uniform  Emitting


2.Unlike the sun-shape heat sink device, cannot fully dissipate and conduct the heat from the chip, affecting the whole light, light decay, life span, etc,

.jpg

3.Our device design use chimney-shape, and with high quality Al6063, easily conduct and dissipate the heat, keep the light better functioning.

4. High quality Al6063 heat sink produce process.


Produce Process:


1. We meticulously consedered the design from the aesthetic appearance, thermal structure, eclectrical specifications to the product installtion convenience and safety;

2. Repeat experiments tested, strive to best performance of each product and low energy consumption to the extreme.



Package:




Applications:

Applicable for shopping malls, stores, hotels,conference rooms, exhibition halls, museums and other deluxe lighting places.



Trade terms:
1. Payment: T/T, Western Union are available
2. Lead time: 10 working days for 100~500pcs, 15 working days for 500~2000pcs
3. Samples can be available within 6-8 working days
4. Shipping freight is quoted under your requests
5. Shipping port:  Zhongshan/Shenzhen, China mainland
6. Discouts are offered based on order quantities

Service:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. OEM & ODM are acceptable, OEM brand is available.
4. Protection of your sales area, ideas of design and all your private information.
5. Workers can be dispatched to our factory, free train and free charge.


Optional Drivers:


Note: Meanwell driver price need further contact. We regular provide with ALLTop or LiFud.

.jpg

JapanCitizen Agent Lisence:
Citizen agent license





Certificates and Patent:




Exhibition and Clients:

 .jpg





Contact:

Joseph Ding
mail: sales@dt-lights.com
Alibaba: http  jinsunled en alibaba com
skype: joseph.ting9
Tel: 86-760-23762169
Fax: 86 760-23762569
Mob: 13703049987





If you are interested in our products, please send us enquiry to get the latest price.
