| Place of Origin: | Shenzhen China |
| Brand Name: | Huaguan |
| Certification: | CE, Rohs, EMC, LVD,SAA |
| Model Number: | HG-DL-6015 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner box：232*60*255 Outer box：715*330*270 N.W:1.55KG G.W:32KG 15pcs/carton |
| Delivery Time: | 3-5days for sample,order need 7-15days |
| Payment Terms: | T/T, Western Union, Paypal or L/C |
| Supply Ability: | 50,000 |
| CCT: | 3000~6000k | Power: | 15w |
|---|---|---|---|
| Input Voltage: | AC100-240V | Optional Power: | 5w~30w |
| Power Factor: | 0.9 | Color: | White / Silver |
| High Light: | SMD led down light,surface mounted Downlight |
||

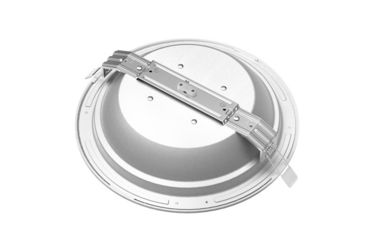

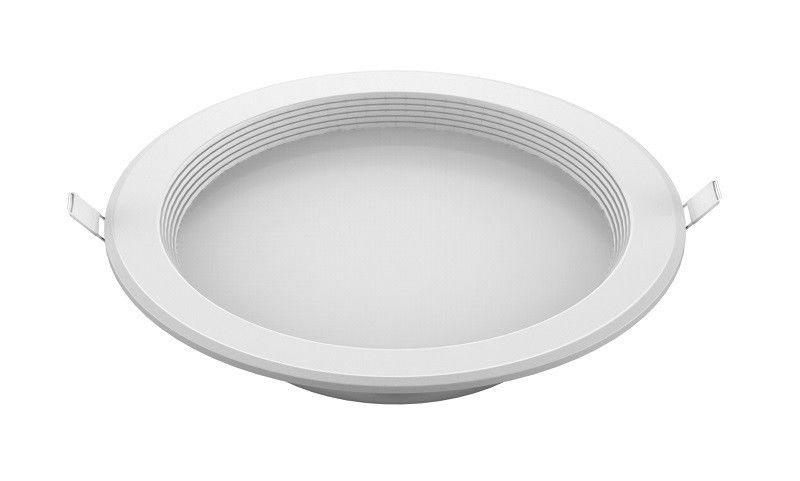

6inch SMD LED Downlight High Ra , Round LED recessed downlights
Description:
|
NO. |
Model |
Power |
Color temperature |
Luminous(lm) |
Ra |
Size(mm) |
Cut-out |
Beam angle |
|
1 |
HG-DL-2505 |
5W |
3000~6000k |
450-500lm |
>80 |
D102*H44 |
80 |
120° |
|
2 |
HG-DL-3007 |
7W |
3000~6000k |
630-700lm |
>80 |
D112*H49 |
90 |
120° |
|
3 |
HG-DL-3009 |
9W |
3000~6000k |
810-900lm |
>80 |
D112*H49 |
90 |
120° |
|
4 |
HG-DL-4012 |
12W |
3000~6000k |
1080-1200lm |
>80 |
D146*H51 |
120 |
120° |
|
5 |
HG-DL-6015 |
15W |
3000~6000k |
1350-1500lm |
>80 |
D190*H55 |
165 |
120° |
|
6 |
HG-DL-6018 |
18W |
3000~6000k |
1620-1800lm |
>80 |
D190*H55 |
165 |
120° |
|
7 |
HG-DL-8024 |
24W |
3000~6000k |
2160-2400lm |
>80 |
D235*H57 |
210 |
120° |
|
8 |
HG-DL-8030 |
30W |
3000~6000k |
2700-3000lm |
>80 |
D235*H57 |
210 |
120° |
|
|
Features:
1. Cool: Less heat radiation than HID or incandescent
2. Energy efficiency:Up to 90% less energy used translates into smaller power supply required
3. Non-toxicity: No mercury
4. Versatility: Available in a variety of colors
5. Various kinds of color temperature optional
6. High color-render index
7. Luminous efficiency is up to 100lm/W
8. Novel style and sophisticated appearance
9. Unique thermal design and low temperature, extending the life of LED
Applications:
Competitive Advantage:
1. All inquiry or question from you will be replied in 12 hours during working day.
2. Warranty: 2 to 5 years, we provide free accessories as maintenance within the warranty period.
3. Every unit will be aging for 48 hours in order to ensure the high quality.
4. Delivery methods: By air express (DHL, UPS, TNT, FedEx, EMS), air cargo and sea.
5. Delivery time: Within 7days for samples, within 15-30 days for bulk orders.
6. We have very experienced R&D engineers and we have strong ability to do ODM projects.
7. We offer OEM services. Can print your own logo on product,can customize the retail box packing and other things.
Warm Tips:
1. For all sincerely buyers who are looking for long term business, we could support small free samples.
2. Epistar,Bridgelux,Edision,Cree chips avaliable.
3. Meanwell power supply is available.
4. We will offer speical discount.
5. We have 30W,50W,100W,150W,200W,300W,500W, 1000Wled flood light.
6. W/R/Y/B/G/W/RGB color for choice.
