| Place of Origin: | Shenzhen, China |
| Brand Name: | Shining |
| Certification: | CE, ROHS approval |
| Model Number: | SN-T8-3102-20W |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 0.5-20USD |
| Packaging Details: | 1pcs/box, 25pcs/carton |
| Delivery Time: | 3-10 working days depends on your order quantity |
| Payment Terms: | 1) Paypal 2) T/T 3) Western Union 4) L/C at sight |
| Supply Ability: | 100000pcs/year |
| Application: | Indoor|Indoor Illumination|restaurant|home | Certification: | CE|ROHS |
|---|---|---|---|
| Color Temperature: | Warm White | LED Type: | SMD|SMD 2835 |
| Lumen: | 1780Lm | Material: | Aluminum |
| Power: | 9W|18W | Product Name: | LED T8 Tube |
| Size: | 600mm|1200mm|120cm | ||
| High Light: | t8 led tube light,led tube light |
||
1. Tube Material: Aluminum Alloy and Frosted PC/Transparent PC
2. Dimension: Dia26*L1200mm
3. Power: 20W
4. Voltage: 100-240V
5. Certificate: CE, ROHS approval
120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination

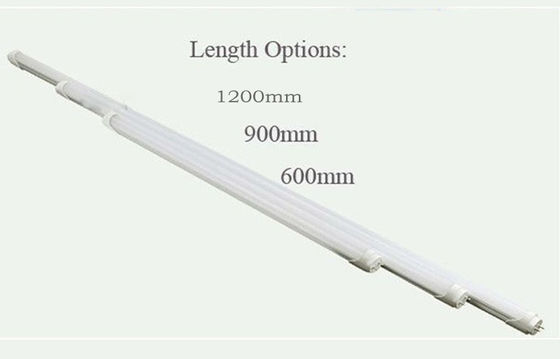

Available models for Shining T8 Tube light:
|
Model No. |
Lamp size (mm) |
Power |
CCT |
LED Qty |
Pcs/Ctn |
Luminous (lm) |
|
SN-T8-3102-9W |
￠26*600mm |
9W |
2700-6500K |
SMD3014*88 pcs |
25pcs |
810±10%LM |
|
SN-T8-3102-10W |
￠26*600mm |
10W |
2700-6500K |
SMD2835* 48pcs |
25pcs |
890±10%LM |
|
SN-T8-3102-12W |
￠26*900mm |
12W |
2700-6500K |
SMD3014*132pcs |
25pcs |
1230±10%LM |
|
SN-T8-3102-15W |
￠26*900mm |
15W |
2700-6500K |
SMD2835*72pcs |
25pcs |
1340±10%LM |
|
SN-T8-3102-18W |
￠26*1200mm |
18W |
2700-6500K |
SMD3014*176pcs |
25pcs |
1640±10%LM |
|
SN-T8-3102-20W |
￠26*1200mm |
20W |
2700-6500K |
SMD2835*96pcs |
25pcs |
1780±10%LM |
Description:
1): Product category: 120cm T8 Led aluminum alloy light tube.
2): Model: T8 1.2m 20w T8 tube
3): Input Voltage: 100-240VAC

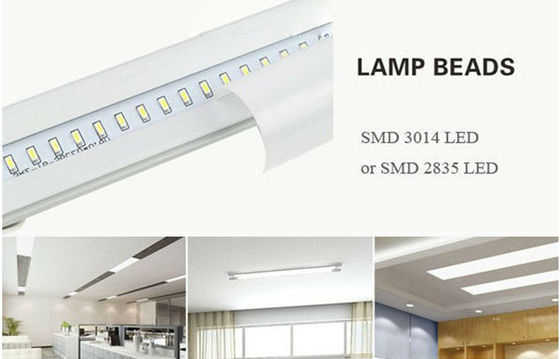

4): LED type/quantity: SMD 2835/96pcs.
5): Luminous Flux: 1780LM±5%
6): Dimension: Dia26*L1200mm
7): Tube Material: Aluminum Alloy and Frosted PC/Transparent PC
8): Power Factor :> 0.90
9): Power: 20W
10): Weight: about 0.6KG
11): Life time :> 50K hours

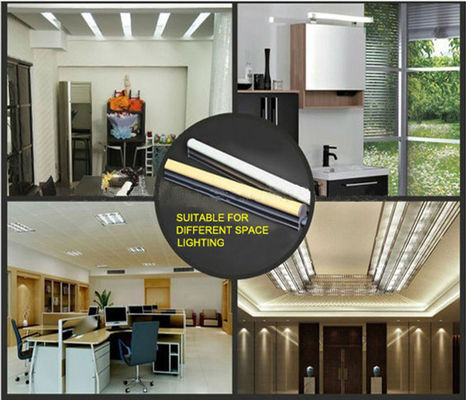

12): Suitable for use: .Widely be used for indoor illumination, such as factory, office, shopping mall, restaurant, campus, home, mansion, school, parking lot, hotel, exhibition hall, etc
13): Packing:
Step:
1,Pack the tube into cardboard tube.
2,Put into paper carton
25pcs per carton,
The size of the carton is : 1260*210*210mm
14): Comparison between LED tube and traditional tube
|
Characteristic |
LED tube |
Traditional fluorescence tube |
|
Need Ballast or not |
No |
Yes |
|
Need starter or not |
No |
Yes |
|
Environment-friendly or not |
Yes,RoHS certificated |
No RoHS certificated,hydrargyrum inside |
|
UV |
No UV |
UV |
|
Maintenance |
Low cost in Maintenance |
Have to replace the part |
|
Life time |
(≥50,000 hours) |
Short time(≥6500 hours) |
|
Flicker or not |
no |
yes |
|
Noise or not |
No |
Yes |
|
Save Energy |
Save more than 70% energy than traditional tube |
|
Figure4, Step 3: Installed Lamp holders, installing LED lamp(Finished)
CAUTION:
Please use it according to the above instruction, the consequence caused by directly use without removing the starter and ballast should undertake by the operator.
Environmental requirements:
1): working Temperature: -30℃～+40℃.
2): Storage Temperature: -35℃～+60℃.
3): Working Humidity: 30%-85%.
4): Storage Hunidity:10%-90%.
5): Storage conditions: indoor, Ventilation, air should not be corrosive gases.
If the tube should be used in reefer should notice the manufacture we will use an other kind of end caps.
Regulation:
LUX(1.2M)
|
Color |
0.5M |
1M |
1.5M |
2M |
2.5M |
3M |
|
Warm White |
1680 |
610 |
342 |
210 |
144 |
104 |
|
Pure White |
1800 |
744 |
365 |
221 |
150 |
112 |
Applications:
Widely be used for indoor illumination, such as factory, office, shopping mall, restaurant, campus, home, mansion, school, parking lot, hotel, exhibition hall, etc
Shipping and delivery time:
|
DHL |
3-5 days |
|
UPS |
3-5 days |
|
EMS |
About 7 days |
|
Fed Ex/TNT |
3-5 days |
|
HK Post Air Mail Register |
About 10 days |
|
Delivery time |
3-15 days |
Trade Terms:
1.Payment: T/T & Paypal & Western Union , 30% deposits before production, 70% balance to be paid before delievery
2.Production lead time for 1-10pcs : 1-3days , 10~50pcs: 3-7days, 500~1000pcs:7-15days
3.Sample is Available & can be delivered with in 3 days
4. By Express(EMS, DHL, UPS etc), By Air or By SeaShipping freight are quoted under your requests
5.Shipping port: Shenzhen or other Mainland China
6.Discounts are offered based on order quantities
7.MOQ:any pcs should be welcomed.
8.Logo : According to your requirement
Our Service:
FAQ:
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A:Sample needs 1-3 days, mass production time needs 5-7 days for order less than 1000 pcs.
Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 100 pcs; MOQ FOB is 1000pcs.
Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q: 5. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation. if mockup is ok, finally we will go to mass production.
Q: 6. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q: 7. Do you accept drop shipping?
A: Yes, it’s available.
At Last, we are ready & waiting for your inquiries and your order. Thanks indeed!
