| Place of Origin: | P.R.China |
| Brand Name: | GEL |
| Certification: | EMC RoHS |
| Model Number: | GEL-T8-120-20W-NI |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | 1pcs/inner box , 30pcs/carton |
| Delivery Time: | 7-20 days after payment received |
| Payment Terms: | TT , Western Union, Paypal |
| Supply Ability: | 350000pcs/month |
| Material: | Aluminum+PC | Power: | 20W |
|---|---|---|---|
| Size: | Ø26mm * 1200mm | Luminous Efficiency: | 85lm/W |
| EQ Watt:: | 42W Florescent Tube | ||
| High Light: | led tube lights t8,dimmable led tube light t8 |
||

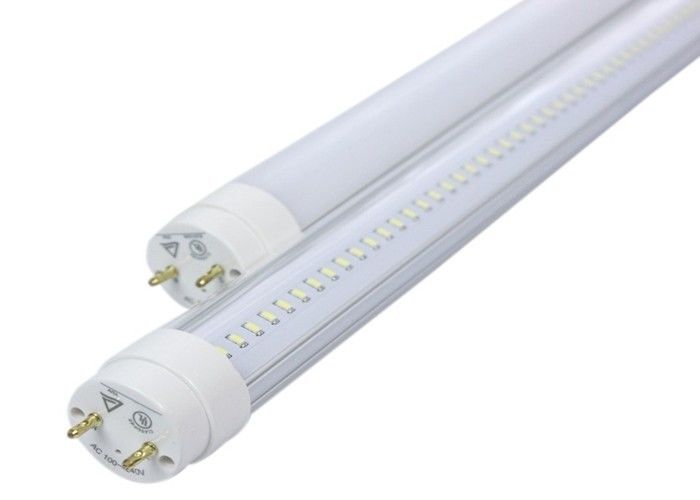

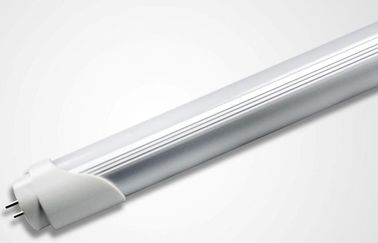

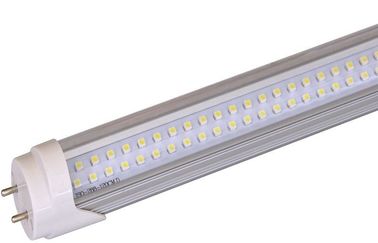

High lumen 2050lm 20W 120cm T8 LED Tube with non isolated power
To replace 42W Florescent Tube
Quick Detail:
1) Size : Ø26*1200mm
2) Lumen flux: 2050±50lm
3) Power:20W
4) Voltage : AC85-265V
5) Main material : Aluminum+PC
6) Beam angle : 120°
7) CRI: ≥80
8) Certificate : EMC RoHS
9) Warranty : 2-3 years
10) Lifespan : 50000hrs
11) Power supply :Isolated and non-isolated Power are available
12) CCT: 5500K-6500K
Description:
1) High-grade PC cover with nice light transmittance(>95%) , transparent PC
2) CRI(standard procucts)>80
3) Use the high quality aluminum PBC for LED’s better hear dissipation
4) This product meet the standard of EMC RoHS certification
led urce , which can ensure the led tube brightness and long lifetime , also can reduce the light decay .
5) Use the most mature international well-know LED SMD2835 and 3014 as the
cover and frosted PC cover are available
6) No mercury , lead or other hazardous materials , no radiation , no electromagnetic radiation , no frequency flash , instant startup , no hurting eyes
7) High quality built-in isolated power supply ,safe use
8) Ambient temperature :-20℃-40℃ , surface temperature :42℃-45℃
Technical Specifications:
|
Model: |
GEL-T8-120-20W-NI |
|
Shade Dimension: |
Ø26*1200mm |
|
Rated Power: |
20W |
|
LED: |
3014 SMD*144pcs |
|
Frequency range |
60Hz-70Hz |
|
Input Voltage & Frequency: |
AC85-265V |
|
Power factor: |
0.95 |
|
Beam Angle: |
120° |
|
Color Rendering Index: |
≥80 |
|
Color Temperture: |
5500K-6500K |
|
Working Temperature: |
-20-45℃ |
|
Luminous Efficiency: |
85lm/w |
Features of Product:
1) High power, high brightness, high efficiency, more than 80% energy saving
than ordinary lamps, with 2-3 years' warranty.
2) Healthy light source, excluding ultraviolet and infrared ray, no radiation
3) Green and environment-friendly, with 50000 working hours, no mercury and lead harmful elements, reclamation and recycling of waste lamps.
4) AC converts to DC directly, high color rendering index without stroboscopic, eye protection.
5) No electromagnetic interference, pure lighting, high color rendering index, is a new type of green lighting product
6) Tube material is fragile aluminum and PC covers, with high light transmittance, good insulation properties, shock-proof, resistance to fall and convenient transportation.
7) Adopt SMD LED, large emitting angle, single-sided light-emitting.
Certificate:
Light Source Test Report:
Packing:
1pcs/inner box , 30pcs/carton
Production view :
Applications of Product:
Widely used in offices , supermarket , hall , families and other indoor use
Installation:
Tag: 20W led T8 tube, 120cm tube lights, 1200mm T8 led tube
