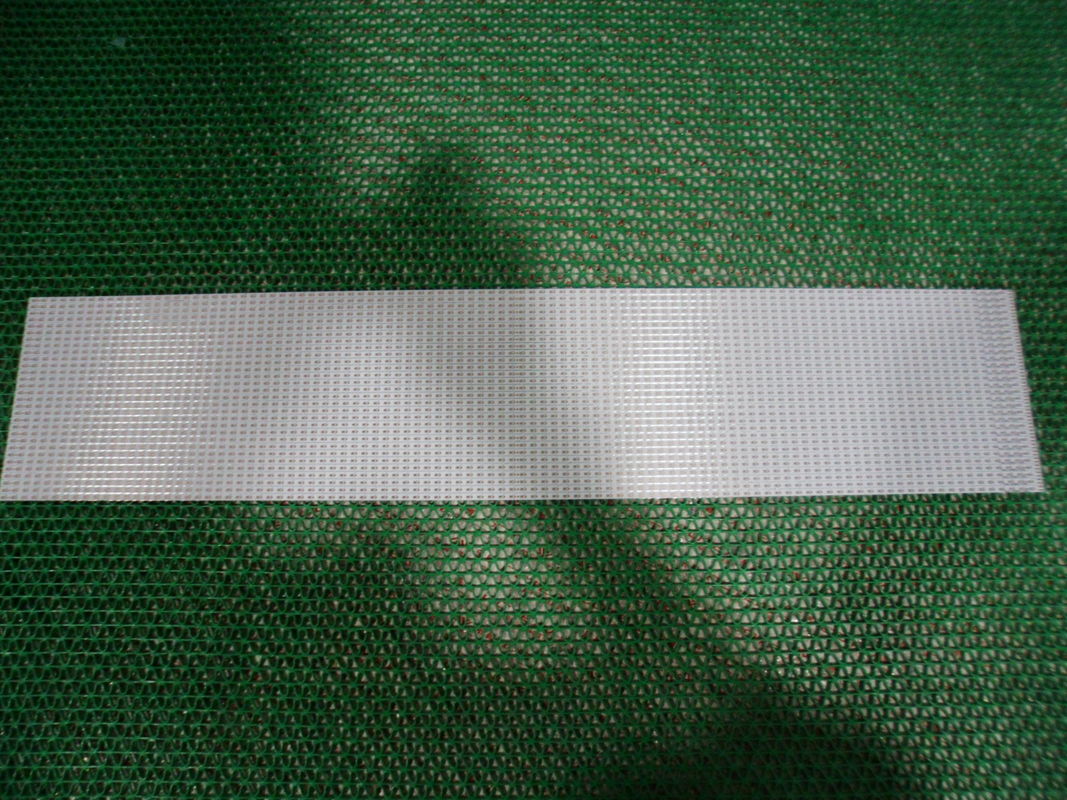

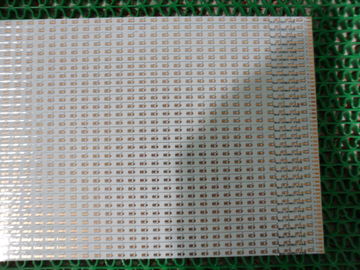

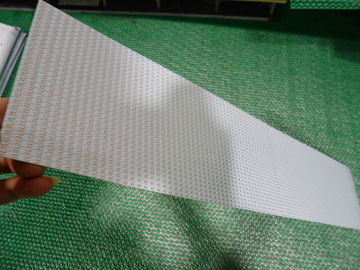

Rigid Aluminum LED Tube PCB for 24w Gu10 T8 LED Tube Lighting Circuit Board

Rigid Aluminum LED Tube PCB for 24w Gu10 T8 LED Tube Lighting Circuit Board

    • Rigid Aluminum LED Tube PCB for 24w Gu10 T8 LED Tube Lighting Circuit Board
    • Rigid Aluminum LED Tube PCB for 24w Gu10 T8 LED Tube Lighting Circuit Board
    • Rigid Aluminum LED Tube PCB for 24w Gu10 T8 LED Tube Lighting Circuit Board
  • Rigid Aluminum LED Tube PCB for 24w Gu10 T8 LED Tube Lighting Circuit Board

    Product Details:

    Place of Origin: China
    Brand Name: JHD PCB
    Certification: UL,RoHs,SGS,ISO9001-2008
    Model Number: JHD-PT-7127

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: US$0.1-US$4.99
    Packaging Details: Vacuum in Carton
    Delivery Time: 7-10 days
    Payment Terms: T/T, Western Union
    Supply Ability: 30000 square meters per month
    Contact Now
    Detailed Product Description

    Rigid Aluminum LED Tube PCB for 24w Gu10 T8 LED Tube Lighting Circuit Board

    Professional PCB Manufacturing

    Base Material: Aluminum
    Layer: 1 layer/2 layers
    Board Thickness: 1.0mm/1.2mm/1.6mm
    Board Dimension: 575x10mm,1175x10mm,1475x10mm(it can be customized)
    Copper layer: 1oz/2oz/3oz
    Solder Mask: White
    Silkscreen: Black
    Surface finish: LF HAL/HAL/OSP/Gold immersion/Silver plating
    Outline Profile: CNC routing/V-Cut/Punching
    All of the parameters can be customized!



    Factory Capability

    Item

    Manufacturing Capability

    Surface Treatment

    OSP
    Immersion Gold Immersion Silver Immersion Tin Lead Free HAL Plating Silver

    PCB Layer Type

    Single side,Double side

    Max. Working Panel Size

    1500mm*600mm

    Min. Working Panel Size

    4mm*4mm

    AL Substrate Thickness

    0.4mm-0.5mm

    Min. Conductor width

    0.15mm

    Min. Conductor spacing

    0.15mm

    Min. Drilling hole size

    0.2mm

    Plate Thickness Tolerance

    ±0.1mm

    Finished Panel Tolerance

    ±0.1mm

    V-CUT Alignment

    ±0.1mm

    Hole Dia Tolerance

    ±0.05mm

    Hole Position Tolerance

    ±0.076mm

    Finished Copper Thickness

    35um-105um(1oz-6oz)

    Etching Under Cut

    >/=2.0

    PTH&Panel Plating Uniformity

    >90%

    Eing/Flash Gold Thickness

    1-5u’’

    Solder Mask Thickness

    15um-35um

    Min. Solder Mask Bridge

    0.076mm(3mil)

    Silk Screen

    White/Black(depend on your requirements)

    Thermal Conductivity

    1.0~20W/MK

    Withstand Voltage

    AC 2000V,DC 1500~4000



    Company Information


    Shenzhen JianHongda PCB Technology Limited,was founded in June 2009,as a professional PCB assembly supplier, we have excellent  teams which focus on product development & design, quality control & inspection and company management. In order to supply the best products and services, we have built a modren quality management system.


    Flow chart of double-face multi-layer board

    Rigid Aluminum LED Tube PCB for 24w Gu10 T8 LED Tube Lighting Circuit Board





    Professional PCB Assembly:
    Professional Surface-mounting and Through-hole soldering Technology.
    Various sizes like 1206,0805,0603 components SMT technology.
    ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
    PCB Assembly With UL,CE,FCC,Rohs Approval.
    Nitrogen gas reflow soldering technology for SMT.
    High Standard SMT&Solder Assembly Line.
    High density interconnected board placement technology capacity.
    Assemble pcb for you,plz click here

    Our Quality Requirement:
    We are now implementing international quality system includes: UL(E465880) ,TS16949 ,ISO14001, ISO9001

    Quality target:
    on-time delivery:≥98% ;
    double layer board acceptability:≥97%
    four-layer board acceptability:≥95%
    six-layer board acceptability:≥92%
    eight-layer board acceptability:≥88%
    ten-layer board acceptability:≥85%
    customer satisfaction :≥98%
    complaint rate/rejected rate:≤ 1%
    Our Environment Policy:
    We committed to:
    Comply with environmental regulations
    Prevent any environmental accidents
    Prevent pollution and reduce wastage
    Minimize the consumption of resources
    Education our employee in the awareness of the environmental protection
    Set up environmental Management system and strengthen environment policy
    RoHS compliance and Lead Free

    Lead Time

    Samples: 5-7 days
    Mass Production: 7-15 days(depend on the quantity)

    Payment Terms

    T/T,Western Union

    Packing and Shipment

    Vacuum package in carton
    Rigid Aluminum LED Tube PCB for 24w Gu10 T8 LED Tube Lighting Circuit Board

    JHD PCB in the professional lighting fair
    Rigid Aluminum LED Tube PCB for 24w Gu10 T8 LED Tube Lighting Circuit Board



    Why us?

    Quality
    Our UL(E465880)/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom product or a complex turnkey production run, JHD PCB will adhere to the highest quality standards.
    Capable
    JHD PCB offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce.

    Experience
    When it comes to your build you want a partner you can depend on. Our management team has over 8years of combined industry knowledge. Our engineering team has over 5 years experience.

    Protecting your interests
    Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.

    Flexibility
    JHD PCB prides ourselves on our ability to custom tailor programs around our customers' needs. JHD PCB takes time to listen to your unique business needs and then set out to surpass them.


    FAQ


    Q: What files do you use in PCB fabrication?
    A: Gerber or Eagle, BOM listing, PNP and Components Position

    Q:Is it possible you could offer sample?
    A: Yes, we can custom you sample to test before mass production

    Q: When will I get the quotation after sent Gerber, BOM and test procedure?
    A:  Within 6 hours for PCB quotation and around 24 hours for PCB quotation.

    Q: How can I know the process of my PCB production?
    A: 5-7days for PCB production and components purchasing, and 7 days for PCB assembly and Testing

    Q: How can I make sure the quality of my PCB?
    A: We ensure that each piece of PCB products work well before shipping. We'll test all of them according to your test procedure. Also if there are any defect items during the shipping, we also can be free to repair  for you.



    Purchase Tips

    a. If you want to purchase our PCB, you should provide a formal Gerber files or *.pcb file or something like that.
    b. If you want to purchase by large quantity, please ask Mr.Hank.
    c. If you want to purchase the PCBA, you should provide the Gerber files, *.pcb file , BOM list etc.
    d. If you want to reproduce some exsited PCB board for you, please first provide very clear pictures , then if you are satisfied with our estimate quotation, then send us the real thing, so we can clone it for you.
    e. If none of the above can help you, please contact us directly by Skype, QQ or Email. We are very glad to answer the questions you ask, your satisfaction is our final destination.



    JHD PCB would like to be your reliable partner in near future!
