340 Degrees ICU Suspension Surgical Pendant for for hospital ICU wards

340 Degrees ICU Suspension Surgical Pendant for for hospital ICU wards

  • 340 Degrees ICU Suspension Surgical Pendant for for hospital ICU wards
  • 340 Degrees ICU Suspension Surgical Pendant for for hospital ICU wards
340 Degrees ICU Suspension Surgical Pendant for for hospital ICU wards
Product Details:
Place of Origin: China
Brand Name: GTX
Certification: CE/ISO9001/ISO13485/SGS
Model Number: GTX-IP126
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: To be confirmed
Packaging Details: Export Standard Carton or Wooden Case
Delivery Time: 15-30days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 pieces per month
Contact Now
Detailed Product Description
Product Name: Operating Surgical Pendant Application: Hospital, ICU Room
Service: After Sales Service Manufacturing Experiences: 25 Years
Warranty:: 12 Months OEM Service: Available
Standard: FDA, CE, ISO13485, ISO9001, SGS Type: Double Arm
High Light:

medical gas pendants

,

medical ceiling pendant

CE High Quality Medical Operating Surgical Pendant ICU Intensive Care Suspension Surgical Pendant


Quick Details

Properties:

Orthopedic Surgical Instrument

Type:

Aspirator, Hospital Furniture

Brand Name:

GTX ICU Operating Surgical Pendant

Model Number:

GTX-IP126

Place of Origin:

Jiangsu, China (Mainland)

Specific Use:

ICU Pendant

General Use:

Hospital, ICU Room

Packing:

Wooden box

OEM:

available

moq:

1 pcs

certificate:

CE, ISO9001, ISO13485

Sample:

available

factory:

2 hours away from Shanghai

gas terminal:

from American GENTEC

material:

Aluminium


Packaging & Delivery

Packaging Details:

1set in a plywood box

Delivery Detail:

15-25days


340 Degrees ICU Suspension Surgical Pendant for for hospital ICU wards 0

Specifications:

ICU cantilever bridge used in the hospital ICU intensive care unit, is indispensable for modern intensive care unit medical rescue auxiliary equipment, mainly consists of bridge, dry and wet.the characteristic is:
1.the reasonable share structure of dry wet, wet area configuration platform of flexible infusion.
2.Wet area equipped with instruments can adjust elevator platform, separately equipped with oxygen in the wet and dry area, air, attract, current, input terminal, infusion pump.
3.Wet area using cantilever structure, improve the treatment of space, the rotating part adopts brake brake drift, configuration of beam having a rotating lift lighting light treatment, provides lighting solution for clinical treatment.
4.Also can according to the request of the hospital equipped with all kinds of systems.



One wet and dry ICU arm suspension bridge in the ICU (the separation of wet and dry), based on its functions to simplify configuration, both ends of the combined wet and dry, and its structure is simple and easy to use, save space for children in intensive care and small area of the Guardianship of the region, the emergency room
.
CE High Quality Medical Operating Surgical  Pendant


1.Electric power


AC220V,50Hz,Input power:6KVA


2,Rail


Length 2500~3200mm(Or customized)

2 Light,1Cantilever light,













3,1Dry section details are as follows


(1)Horizontal rotation angle≤340°,


(2)Instrument platform:3 layers(Height is adjustable),With bumper


(3)Medical gas outlets:1 Oxygen,1Vac,1AIR

a,Interfaces are of different colors and shapes to prevent connecting wrong,

b,Insert and draw frequency over 20,000 times

c,Adapt Second sealing technology with 3 status (open, stop, pull), can be maintained with gas


(4)Electrical sockets:6Pcs,220V ,10A

(5)Equipotential earthing terminal board:2Pcs


(6)Network interface: RJ45, 1 Pcs;

(7)Drawer:1Pcs;

(8)Rotation angle:0~340°

(9)Damping brake;

(10)Load capability:≤150kg
















4,1Wet section,details are as follows


(1)Horizontal rotation angle≤340°


(2)Instrument platform:3 layers(Height is adjustable),With bumper


(3)Medical gas outlets:1 Oxygen,1Vac,1AIR

a,Interfaces are of different colors and shapes to prevent connecting wrong,

b,Insert and draw frequency over 20,000 times

c,Adapt Second sealing technology with 3 status (open, stop, pull), can be maintained with gas


(4)Electrical sockets:6Pcs,220V ,10A

(5)Equipotential earthing terminal board:2Pcs


(6)1 Shelving combination with Stainless steel adjustable I.V.pole and Syringe pump.

(7)1 Storage basket:

(8)1 Drawer:

(9)Rotation angle:0~340°:

(10)Damping brake;


(11)Load capability:≤150kg;


5.Main Material


High-strength aluminum alloy.


6.The Finishe


Electrostatic spray:


7.Installing


Ceiling-Mounted:

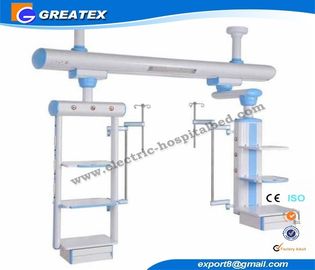

340 Degrees ICU Suspension Surgical Pendant for for hospital ICU wards 1

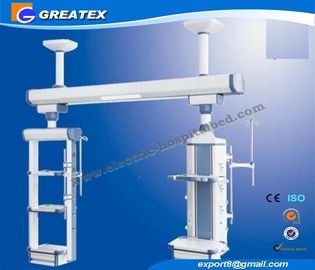

340 Degrees ICU Suspension Surgical Pendant for for hospital ICU wards 2
