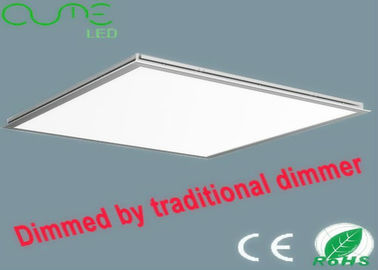

Ultra Thin Dimmable LED Panel Light 2700K - 7000K Ceiling Light PF0.9

Ultra Thin Dimmable LED Panel Light 2700K - 7000K Ceiling Light PF0.9

  • Ultra Thin Dimmable LED Panel Light 2700K - 7000K Ceiling Light PF0.9
  • Ultra Thin Dimmable LED Panel Light 2700K - 7000K Ceiling Light PF0.9
  • Ultra Thin Dimmable LED Panel Light 2700K - 7000K Ceiling Light PF0.9
Ultra Thin Dimmable LED Panel Light 2700K - 7000K Ceiling Light PF0.9
Product Details:
Place of Origin: China
Brand Name: OUTE
Certification: CE&Rohs (UL,TUV,SAA certification led driver optional )
Model Number: OT936S600*600
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs (sample order is welcome )
Packaging Details: 1 piece of led panel light/inner carton,EPE cotton,5 pieces of led panel lights/outer carton ;outer carton size:69*70*32CM
Delivery Time: 3-15 days after receive the deposit
Payment Terms: T/T,western union,paypal
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
High Light:

LED Ceiling panel lights

,

Pound LED panel Light

Ultra Thin Dimmable LED Panel Light 2700K - 7000K Ceiling Light PF0.9





Quick Detail:



1, High PF driver , PF>0.9, New high efficiency constant current driver

2, Power:18W,36W,48W,72W

3, Competitive price

4, Silver color or white color optional

5, Size: 595*595mm ;600*600mm;605*605mm optional

6, Three years warranty

7. Green environmental protection, lead-free material ,conforming to RoHS

8. Recessed  installing, surface  installing,hanging  installing  optional  .





Description:



Led panel light is one kind of indoor led lights. Comparing with conventional  lamps, led panel lights own Energy-saving ,long lifespan ,without  Lead ,without  Mercury and without  Ultraviolet  etc.  strengths.

Our led panel light adopt side-chip way. And side-chip led panel light emit very even and soft light. Meantime, it protect the people’s eyes. It make led panel light very elegant.

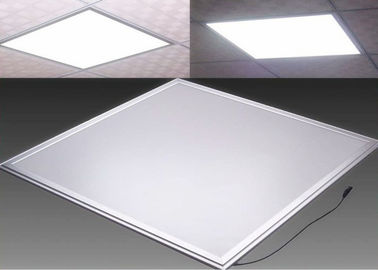

For installing way,there are three kinds of led panel lights.: recessed led panel light,hanging led panel light and surface installing led panel light.

Recessed led panel light is suitable for there is hole on the ceiling . Confirm the hole size ,then make relative cutout size led panel lights.

Hanging led panel light are lifted by several pieces of steel ropes. And lock the steel rope on the ceiling.

Regarding surface mounting led panel light, led panel lights are supported by several clips.And lock the clips on the solid ceiling.





Applications:



1. Commercial Lighting, Restaurants & Hotels, Shopping malls

2. Office Lighting, Retail & Grocery Stores, Showrooms, Airports

3. Warehouse Lighting, Galleries, Hospitals, Warehouses

4. Super market Lighting, institution buildings.





Specifications :



Model:

OT936S600*600

CRI(Ra):

65-75Ra or 75-85Ra

Size(MM):

600*600MM

Luminous Flux (LM):

2800LM

Installing way:

Recessed;      or Hanging;     or Surface installing

Guide plate& diffuser plate:

Optical original PMMA & PS material

Led driver protection circuit:

over-load over-current over-voltage short-circuit

External led driver:

isolated

Heat sink material:

pure 6063-T5 Aluminum

Warranty:

Three years or Two years

Input voltage:

100-240V AC

CE & Rohs compliant:

Yes

Led type/qty:

192 pcs of SMD2835

Color of the frame:

silver or white

Power:

36W

Power factor:

>0.9





Competitive advantages:



1. High stability & reliability;

2. Flexible size designing;

3. Delivery on time;

4. Competive cost-performance

5. Guide plate & diffuser plate adopt Japan or Taiwan original optical material.

6. The core parts such as led components and led drivers come from top brand in China;

7. The main parts such as heat sink frame adopt high thermal dissipation material--6063-T5 Aluminum.
