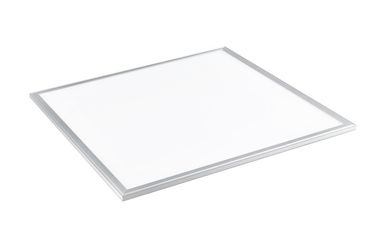

4800 lumen CE 600x600 Led Panel Ceiling Light 60 Watt with White Frame

4800 lumen CE 600x600 Led Panel Ceiling Light 60 Watt with White Frame

  • 4800 lumen CE 600x600 Led Panel Ceiling Light 60 Watt with White Frame
4800 lumen CE 600x600 Led Panel Ceiling Light 60 Watt with White Frame
Product Details:
Place of Origin: China
Brand Name: Superolux
Certification: CE Rohs
Model Number: SP-PLCE606060-L
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Depends on QTY
Packaging Details: Netural package
Delivery Time: 10 working days after received your payment
Payment Terms: T/T o
Supply Ability: 10Kpcs per month
Contact Now
Detailed Product Description
High Light:

Drop Ceiling Light Panels

,

Led Lighting Panels



60W LED flat panel light 5 years life span CE list  white frame  super slim high light efficiency



Specification



     Product Name

                               LED panel light

     Power

                              60 W

     Rated Voltage

                              85-265V

     Rated Frequency

                              47-63hz

     Ra

                                75

     Power Factor

                              >0.9

     Frame Colour

                          Pure White/ Sliver

     Chip Brand

                      Bridgelux/Cree/Epistar

     Light Efficiency

                         >80 lm/W

     Chip Power

                        0.3W /chip

     Driver Brand

                      Meanwell /driver as client requirement

     Rated CRI

                          2700-6800K

     Rated Luminous

                         4800 lumen

     Working Temperature

                         -20-+60degree

     Material Body

                        Pure Aluminum

     Material of Cover

                           PC

     Installation methods

                         Recessed /Hanging

     Thickness

                              13mm

     Life Span

                         50000 hours

     Warranty

                              3 years

     Certification

                          CE/Rohs

     Gross weight

                      4KG/CTN

     Packing Details

                       5pcs/CTN

     Package Size

                     L630*W630*H38MM

     Lamp Size

                      L600*W600*T13MM

     IP rate

                     IP20

     Fixture type

                      LED indoor lighting



     Applications

Meeting Room , exhibition center , shopping center ,warehouse ,factory

     Exporting areas

 Europe ,USA .South Amercia





Product advantages



1. super slim designing



2. convenient for installing , can be both installed by hanging and surface mounted



3. high light output effiency



4  low maitance .



5. fast delivery , 2 weeks after order confirmation





Product Features :





1 super thin design. unqiue stylish desining  , good market resonponse


2. excellent materials , high brigntness led , famous brand led driver


3. this items can be designed with dimmable function


4. Leading heat sink design, four light emission instead of backlight emission.


5.Wide range voltage avilable , this item can be work in different areas


7. NO UV or infra-red radiation, no mercury or lead, eco-friendly, no danger of broken glass.


8. Built-in high efficiency constant current driver, Wide Voltage AC100-


9 Low energy consumption, saves 60% power comparing conventional light.


10. purify aluminum housing , finishing colour can be white or sliver accoding to client's requirement


11. Be equipped with short circuit, open circuit, lighting stroke, power surge, overcurrent, over-voltage,

overheat etc. protection circuit.


12. Built-in high efficiency constant current driver, Wide Voltage AC100-240V 50/60Hz input, worldwide

application.


13 convient for  installing , a perfect replacement for traditional fluorescent lighting


14. custom service , we provide customed service , with the chips ,driver



15 This series of LED panel is excellent for different indoor applications, meeting room , office ,chain stores .factory. supermarket .



16. excellent feedback for  cost effective price . nice desining ,and high brightness . his series have got good feedback from clients ,after installing in different applications from clients both overseas and domestic .

.



Item

Name

Qty

Unit

Remark

1

1200*300 LED Panel Light

1

pc



This packing list for panel light only.

2

User Manual

1

pc

3

Driver

1

pc





Maintenance:



A. The panel light can be only repire or install or maitain by professional technican  others are not allowed to make any operation on the light without instruction .



B.during maintenance , the inner of the panel is not allowed to be touched ,



C. The series of the panel light is desininged with indoor ratings , please pay attention don't use the light in outdoor applications .



D. The metal area and screw base are not allowed to be touched after the light is power on



E. make sure the applicaiton is with correct voltage and current



F. Please don't switch on/off of the light in short period , it can cuase the demage of the light ,and shorten the life span of the panel light .



G. pay attention on the enviroment temperature , this life can be work well in-20+ 55 degree .if the enviroment is above 55 degree ,it may effect on the light span of the light , please switch off the light ,and keep away the light from the heat resource /



H. the techincan should read carefullly of the manual instruction before installing the light .



I . If any problem happen with the light , please contact with us and professional techincan .





Producing steps and aging pictures:



4800 lumen CE 600x600 Led Panel Ceiling Light 60 Watt with White Frame 0



4800 lumen CE 600x600 Led Panel Ceiling Light 60 Watt with White Frame 1



4800 lumen CE 600x600 Led Panel Ceiling Light 60 Watt with White Frame 2
