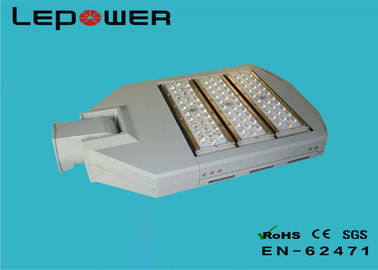

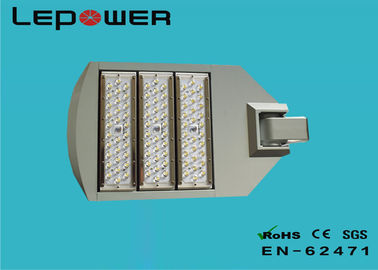

150w Aluminum Outdoor LED Street Lights 120LM/W Ip66 with Meanwell

150w Aluminum Outdoor LED Street Lights 120LM/W Ip66 with Meanwell

  • 150w Aluminum Outdoor LED Street Lights 120LM/W Ip66 with Meanwell
  • 150w Aluminum Outdoor LED Street Lights 120LM/W Ip66 with Meanwell
150w Aluminum Outdoor LED Street Lights 120LM/W Ip66 with Meanwell
Product Details:
Place of Origin: China
Brand Name: Shenzhen lepower
Certification: CE RoHS
Model Number: 150w led street light
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $145/PC
Packaging Details: In carton
Delivery Time: 10 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000pcs every month
Contact Now
Detailed Product Description
Type: Outdoor 150w Led Street Light 120lm/w Lamp Body Material: Aluminum+PC
Input Voltage: AC95~305V Color Temperature: 2800-3200k/4000-4500k/5000~5500k/6000-6500k
IP Rate: IP67 Driver: Meanwell
Luminous Efficience: 110-120lm/w Warranty: 5 Years
Size: 630*388*168mm
High Light:

outdoor led lights

,

led street lamps

150w Aluminum Outdoor LED Street Lights 120LM/W Ip66 with Meanwell





1,Features:

  • Adoption Lepower exclusive ZAG Lens with light transmittance up to 98%
  •   Perfect Light Distribution Solution:Adoption of integrated peanut shell optic lens, meet the  photometric
  •  requirements of road lighting design standards,enhance the brightness and illumination uniformity.
  • Driven by high efficiency constant current and 60% energy-saving than traditional lamps; over –current protection, over-voltage protection, lightning protection,
  • high temperature protection, fully ensures the long life span and high stability.
  • Durable,long lifetime,and last up to 50000 hours; no need to replace frequently and less daily  maintenance.
  • Green product,no UV or IR radiation, no mercury pollution
  • The lamp is waterproof and dustproof, with protecting rate: IP66
  • Fast response,no flicker; wide operating voltage rang





2,Technical parameter



Specifications



Part No.

Module Qty.

Dimension  (L*328*98)

Lamp Weight

LY-SL11

1

399*328*98mm

5.3kg

LY-SL12

2

484*328*98mm

6.7kg

LY-SL13

3

569*328*98mm

7.6kg

LY-SL14

4

654*328*98mm

8.6kg

LY-SL15

5

739*328*98mm

9.6kg

LY-SL16

6

824*328*98mm

11.2kg



◎ Electrical Specifications



Part No.

Module

Qty.

Rated

Power

Input Voltage/

Frequency

Input Current

Power

Factor

Driver

Efficiency

LY-SL11

1

50W

AC90~305V

50/60Hz

0.64A/115VAC

>0.98/115VAC

>0.95/230VAC

>93%

LY-SL12

2

60W

0.64A/115VAC

90W

1.2A/115VAC

100W

1.2A/115VAC

LY-SL13

3

120W

1.4A/115VAC

135W

1.7A/115VAC

150W

1.7A/115VAC

LY-SL14

4

180W

2.1A/115VAC

200W

4A/115VAC

LY-SL15

5

250W

4A/115VAC

LY-SL16

6

300W

3.5A/115VAC



◎ Photometric Specifications



Part No.

Module

Qty.

Rated

Power

Lm.

Luminaire

Efficacy

CRI(Ra)

CCT

Angle

LY-SL11

1

50W

6500

130lm/W







LY-SL12

2

60W

7800

130lm/W

>50

>60

>70

2800-3000K

3000-3500K

4000-4500K

5000-5500K

6000-6500K

150°x70°

90W

11580

128lm/W

100W

12425

124lm/W

LY-SL13

3

120W

15834

132lm/W

135W

17368

129lm/W

150W

18638

124lm/W

LY-SL14

4

180W

26316

128lm/W

200W

28240

124lm/W

LY-SL15

5

250W

31000

124lm/W

LY-SL16

6

300W

36000

120lm/W



◎ Mechanical  Specifications



Part No.

Module

Qty.

Package SPC.

G.W.

IP Rating

Lifetime

Lamp Body Material

LY-SL11

1

460*388*168mm

6.5kg

IP66

50000hs

Aluminum+PC

LY-SL12

2

545*388*168mm

7.8kg

LY-SL13

3

630*388*168mm

8.8kg

LY-SL14

4

714*388*168mm

9.8kg

LY-SL15

5

800*388*168mm

11.2kg

LY-SL16

6

885*388*168mm

13.0kg

Operating

Environment

-40℃~50℃,20%~90% H.R.

Storage

 Environment

-40℃~85℃10%~90% H.R.



3,Our Services





1. For all your inquires about us or our products, we will reply you in detail within 24 hours.

2. We have engineers who has the experience of 20 designs for big lighting engineering projects to help

     you solve all the problems of technical.

3. We have sales who have engage in LED about 6years to help you custom-made the sales solution.

4. We have a good translation, enthusiastic sales and service who can speak fluently in English  language
5. We offer OEM services. Can print your own logo on product , can customize the retail box  packing and other things.

6. We have very experienced R&D engineers and we have strong ability to do ODM projects.

7. We are led package ,led lens factory and led lamp manufacturer, so we are the best reliable led lighting partner !





 6,Application areas:

 This Product mainly applies to highway, urban trunk road and secondary trunk road, stadium,

sidewalk, residential district, industrial district, square , park ,school, villa, courtyard and other

 places of street lighting.



7,Cautions

  • Warranty:Five years.
  • Please handle the product with care when open the package.
  • If the new LED down light is found damaged, please keep the original package and contact us.
  • Please do not try to use the damaged down light.
  • In order to ensure the product work properly, please use the power supply within indicating voltage range.
  • Please follow the installation instructions to install the product. Please do not touch the light while it is working.
  • Whatever the case, lamps can not be covered by heat resistant gasket or similar materials.
  • Please turn off the power supply for the base to avoid electric shock while installing and uninstalling the product.
  • Do not look directly to LED light source for a long time, because the high-intensity light source may cause harm to eyes.
