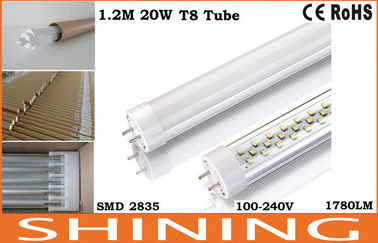

120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination

120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination

  • 120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination
  • 120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination
  • 120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination
  • 120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination
  • 120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination
  • 120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination
  • 120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination
  • 120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination
120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Shining
Certification: CE, ROHS approval
Model Number: SN-T8-3102-20W
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 0.5-20USD
Packaging Details: 1pcs/box, 25pcs/carton
Delivery Time: 3-10 working days depends on your order quantity
Payment Terms: 1) Paypal 2) T/T 3) Western Union 4) L/C at sight
Supply Ability: 100000pcs/year
Contact Now
Detailed Product Description
Application: Indoor|Indoor Illumination|restaurant|home Certification: CE|ROHS
Color Temperature: Warm White LED Type: SMD|SMD 2835
Lumen: 1780Lm Material: Aluminum
Power: 9W|18W Product Name: LED T8 Tube
Size: 600mm|1200mm|120cm
High Light:

t8 led tube light

,

led tube light





1. Tube Material: Aluminum Alloy and Frosted PC/Transparent PC

2. Dimension: Dia26*L1200mm

3. Power: 20W

4. Voltage: 100-240V

5. Certificate: CE, ROHS approval



120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination

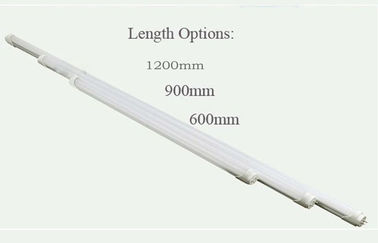

Available models for Shining T8 Tube light:



Model No.

Lamp size (mm)

Power

CCT

LED Qty

Pcs/Ctn

Luminous (lm)

SN-T8-3102-9W

¢26*600mm

9W

2700-6500K

SMD3014*88 pcs

25pcs

810±10%LM

SN-T8-3102-10W

¢26*600mm

10W

2700-6500K

SMD2835* 48pcs

25pcs

890±10%LM

SN-T8-3102-12W

¢26*900mm

12W

2700-6500K

SMD3014*132pcs

25pcs

1230±10%LM

SN-T8-3102-15W

¢26*900mm

15W

2700-6500K

SMD2835*72pcs

25pcs

1340±10%LM

SN-T8-3102-18W

¢26*1200mm

18W

2700-6500K

SMD3014*176pcs

25pcs

1640±10%LM

SN-T8-3102-20W

¢26*1200mm

20W

2700-6500K

SMD2835*96pcs

25pcs

1780±10%LM





Description:



   1):  Product category: 120cm T8 Led aluminum alloy light tube.

   2):  Model: T8 1.2m 20w T8 tube

   3):  Input Voltage: 100-240VAC

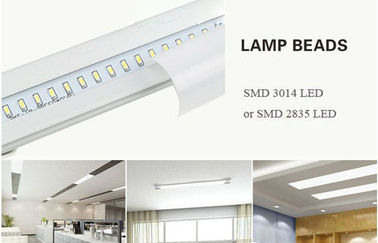

   4):  LED type/quantity: SMD 2835/96pcs.

   5):  Luminous Flux: 1780LM±5%

   6):  Dimension: Dia26*L1200mm

   7):  Tube Material: Aluminum Alloy and Frosted PC/Transparent PC

   8):  Power Factor :> 0.90

   9):  Power: 20W

   10): Weight: about 0.6KG

   11): Life time :> 50K hours

   12): Suitable for use: .Widely be used for indoor illumination, such as factory, office, shopping mall, restaurant, campus, home, mansion, school, parking lot, hotel, exhibition hall, etc

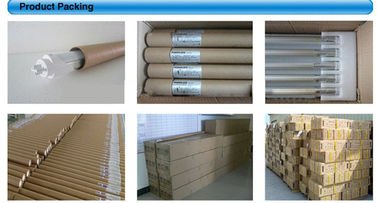

   13): Packing:

      Step:

        1,Pack the tube into cardboard tube.

        2,Put into paper carton

            25pcs per carton,

The size of the carton is : 1260*210*210mm



120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination 0

120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination 1



  14):  Comparison between LED tube and traditional tube



Characteristic

LED tube

Traditional fluorescence tube

Need Ballast or not

No

Yes

Need starter or not

No

Yes

Environment-friendly or not

Yes,RoHS certificated

No RoHS certificated,hydrargyrum inside

UV

No UV

UV

Maintenance

Low cost in Maintenance

Have to replace the part

Life time

       (≥50,000 hours)

Short time(≥6500 hours)

Flicker or not

no

yes

Noise or not

No

Yes

Save Energy

Save more than 70% energy than traditional tube



120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination 2


Figure4, Step 3: Installed Lamp holders, installing LED lamp(Finished)





CAUTION:



      Please use it according to the above instruction, the consequence caused by directly use without removing the starter and ballast should undertake by the operator.



    Environmental requirements:



  1): working Temperature: -30℃~+40℃.



  2): Storage Temperature: -35℃~+60℃.



  3): Working Humidity: 30%-85%.



  4): Storage Hunidity:10%-90%.



  5): Storage conditions: indoor, Ventilation, air should not be corrosive gases.



If the tube should be used in reefer should notice the manufacture we will use an other kind of end caps.





Regulation:



  1. Have to press this manual to request an usage.
  2. Installation and maintenance operations necessary to complete by the professionals,Prevent electric shock.
  3. Cannot be stacked more than 2.5 meters high.
  4. During transport to avoid the rain and strong vibration.



LUX(1.2M)



Color

0.5M

1M

1.5M

2M

2.5M

3M

Warm White

1680

610

342

210

144

104

Pure White

1800

744

365

221

150

112

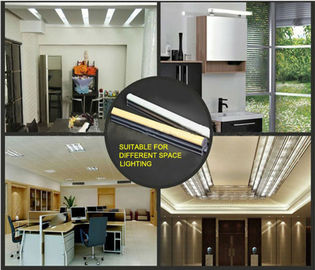

Applications:



Widely be used for indoor illumination, such as factory, office, shopping mall, restaurant, campus, home, mansion, school, parking lot, hotel, exhibition hall, etc







Shipping and delivery time:



DHL

3-5 days

UPS

3-5 days

EMS

About 7 days

Fed Ex/TNT

3-5 days

HK Post Air Mail Register

About 10 days

Delivery time

3-15 days









Trade Terms:



1.Payment: T/T & Paypal & Western Union , 30% deposits before production, 70% balance to be paid before delievery

2.Production lead time for 1-10pcs : 1-3days , 10~50pcs: 3-7days, 500~1000pcs:7-15days

3.Sample is Available & can be delivered with in 3 days

4. By Express(EMS, DHL, UPS etc), By Air or By SeaShipping freight are quoted under your requests

5.Shipping port: Shenzhen or other Mainland China

6.Discounts are offered based on order quantities

7.MOQ:any pcs should be welcomed.

8.Logo :  According to your requirement





Our Service:

120cm T8 LED Tube Light 20watt 1780Lm For Indoor Illumination 3



FAQ:



Q: 1. Can I have a sample order?



       A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q: 2. What is the lead time?



        A:Sample needs 1-3 days, mass production time needs 5-7 days for order less than 1000 pcs.



Q: 3. Do you have any MOQ limit?



        A: Our MOQ EXW is 100 pcs; MOQ FOB is 1000pcs.



Q: 4. How do you ship the goods and how long does it take arrive?



        A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.



Q: 5. How to proceed the order if I have logo to print?



        A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation. if mockup is ok, finally we will go to mass production.



Q: 6. Do you offer guarantee for the products?



        A: Yes, we offer one year guarantee for the products.



Q: 7. Do you accept drop shipping?



         A: Yes, it’s available.



At Last, we are ready & waiting for your inquiries and your order. Thanks indeed!
